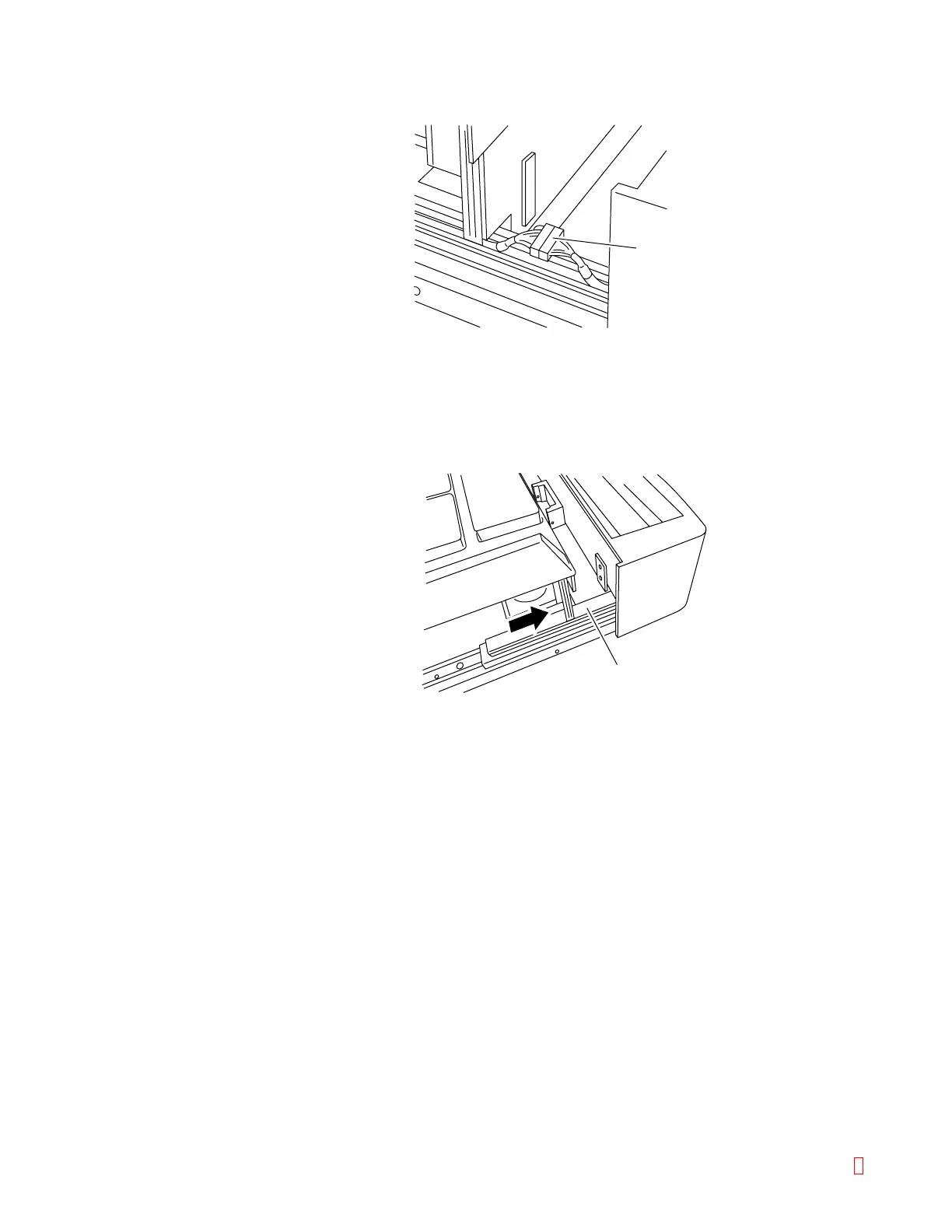

3) Connect the connector and put it in the duct.
Connector
Duct Cover
Figure B-27: Connecting the Connector
4) Attach the duct cover.
The duct cover should be attached so that it will cover the outlet for the cable of the
sampler with ID bar code scanner.
Figure B-28: Attaching the Duct Cover
5) Repeat pushing in and pulling out the sampler with ID bar code scanner several times.
6) With the sampler pulled out in parallel, fully tighten the screws that were temporarily
tightened before.
7) Make sure that the sampler with ID bar code scanner will slide in and out smoothly.
(6) Attach the left side panel of the CA-500 main unit.
CA-500 Series S/M B-17 Revised December 2001 8
