5. From the Status tab, select Update.

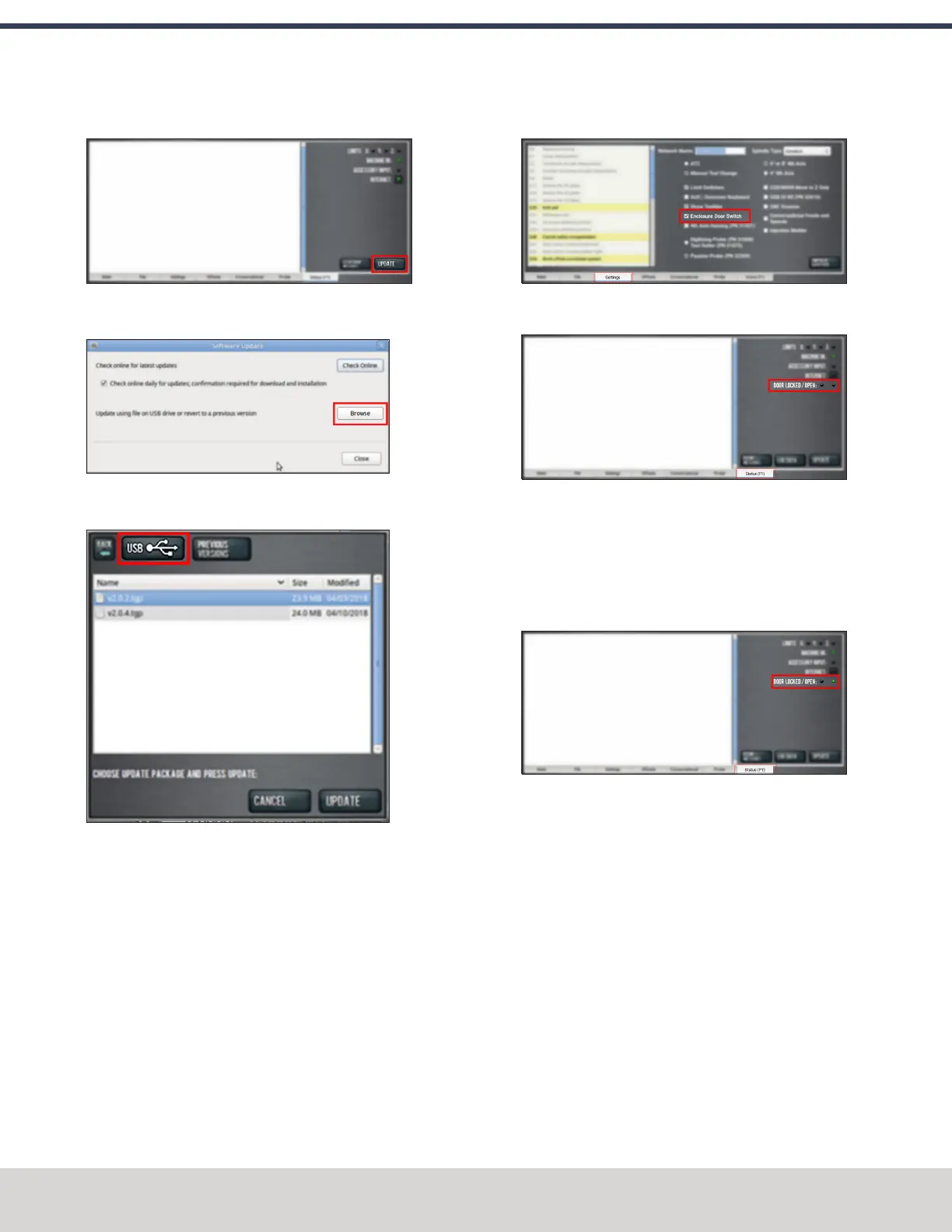

Figure 4-168: Update button on the Status tab.
6. From the Software Update dialog box, select Browse.
Figure 4-169: Software Update dialog box.
7. From the Browsedialog box, select USB.
Figure 4-170: Browse dialog box.
8. Select the desired update file, and then select Update.
The update file is installed on the PathPilot controller.
9. Follow the on-screen instructions to restart the PathPilot
controller.
Enable the Door Lock Switch Kit
If you have a Door Lock Switch Kit, you must first enable it in
PathPilot.
To enable the Door Lock Switch Kit:
1. On the Settings tab, select Enclosure Door Switch.
Figure 4-171: Settings tab.
On the Status tab, the Door Locked / Open LEDs display.
Figure 4-172: Status tab.
2. Reference the machine: select Ref Z, Ref X, and Ref Y.
3. Open the enclosure doors.
4. From the PathPilot interface, on the Status tab, make
sure that the Door Open LEDis on, and the Door Locked
LEDis off.
Figure 4-173: Door Open LED on the Status tab.
5. Close the enclosure doors and verify that the Door Open
LED is off. Then, push in the Emergency Stop button on
the operator box.
The doors lock, and the Door Locked LED comes on.
6. From the PathPilot interface, on the Status tab, make
sure that the Door Open LED is off.
7. Unlock the enclosure doors: twist out the Emergency
Stop button and press the Reset button on the operator
box.
The doors unlock.
4.8.10 Install the PathPilot Operator Console
Complete the following steps in the order listed:
