3. Connect the two backsplash panels together with a 4
mm hex wrench and three M6 × 1.0 - 12 screws.

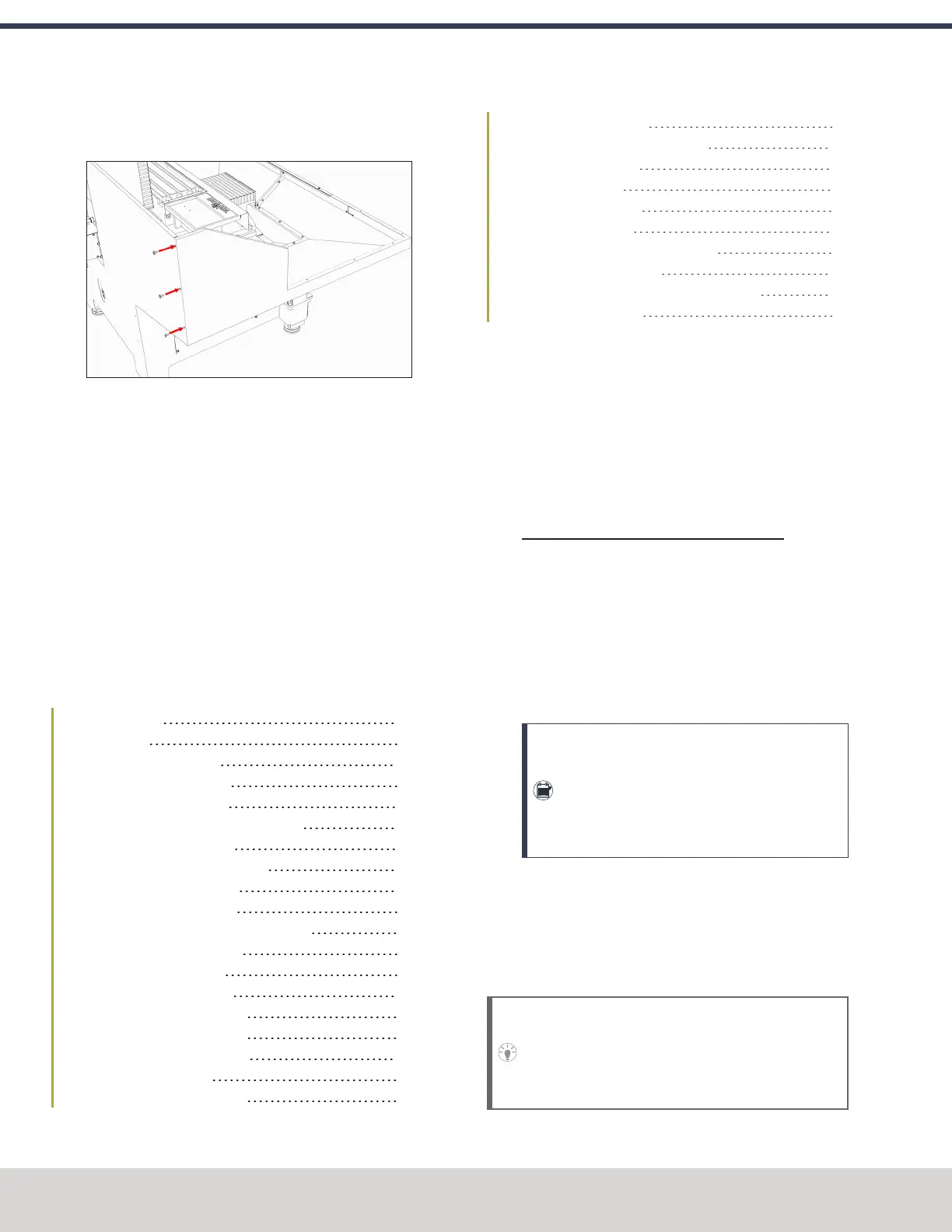

Figure 4-116: Connecting the two backsplash panels
together.
4. Attach the sides of the splash guard to the splash guard
connecting plate with two M5 × 20 mm screws.
5. Move the plastic splash guard between the two sides of
the splash guard.
6. Remove the four set screws from the four corners of the
machine table, and then discard the set screws.
7. Attach the splash guard assembly to the four corners on
the machine table with the four provided socket head
cap screws.
4.8.8 Install the Enclosure
Complete the following steps in the order listed:
Before You Begin 86
Required Tools 87
Install the Enclosure Panels 87
Install the Left Rear Panel 87
Install the Left Side Panel 87
Install the Left Side Window Retainers 87
Install the Left Front Panel 88
Install the Enclosure Splice Plate 88
Install the Right Rear Panel 88
Install the Right Side Panel 88
Install the Right Side Window Retainers 88
Install the Right Front Panel 89
Install the Left Top Panel 89
Install the Right Top Panel 90
Install the Upper Front Panel 90
Install the Front Lower Panel 90
Install the Rear Splash Shield 91
Assemble the Linear Rails 91
Install the Linear Assemblies 91
Assemble the Front Doors 92
Install the Front Door Assemblies 93
Install the Door Latch 94
Install the Floodlights 94
Install the Side Windows 94
Install the Access Panel 95
Install the Stainless Steel Wear Guard 96
Use the Maintenance Labels 96
Write the Date on the Maintenance Labels 96
Replace the Windows 97
Before You Begin
1. Inspect the item(s):
l Photograph any damage that may have occurred
during shipping.
l Verify the received goods against the packing list.
If there is any damage or shortages, you must contact
Tormach within 30 days of receipt. Create a support
ticket with Tormach Technical Support at
tormach.com/how-to-submit-a-support-ticket for
guidance on how to proceed.
2. Read the packing list and locate all items. During the
installation, remove labels from the items as needed.
3. Clean all chips and swarf from the:
l Chip basket
l Chip pans
l Machine
Note: The procedure to install the enclosure
uses many screws. If you start with a clean
machine, it's easier and safer to find and pick
up any screws that might drop during the
procedure.
4. Verify that the coolant tank and chip basket are under
the Machine Stand.
5. If previously installed, you must first remove the
stainless steel wear guard from the chip pans, and set it
aside for later installation.
Tip! Keep all screws one quarter-turn loose while
installing the enclosure panels. This makes it easier
to align the panels. Once you're done installing the
enclosure, fully tighten all screws.
©Tormach® 2023
Specifications subject to change without notice.
Page 86 Tormach 1100M® Operator's Manual (Version 1223A)
For the most recent version, see tormach.com/support
