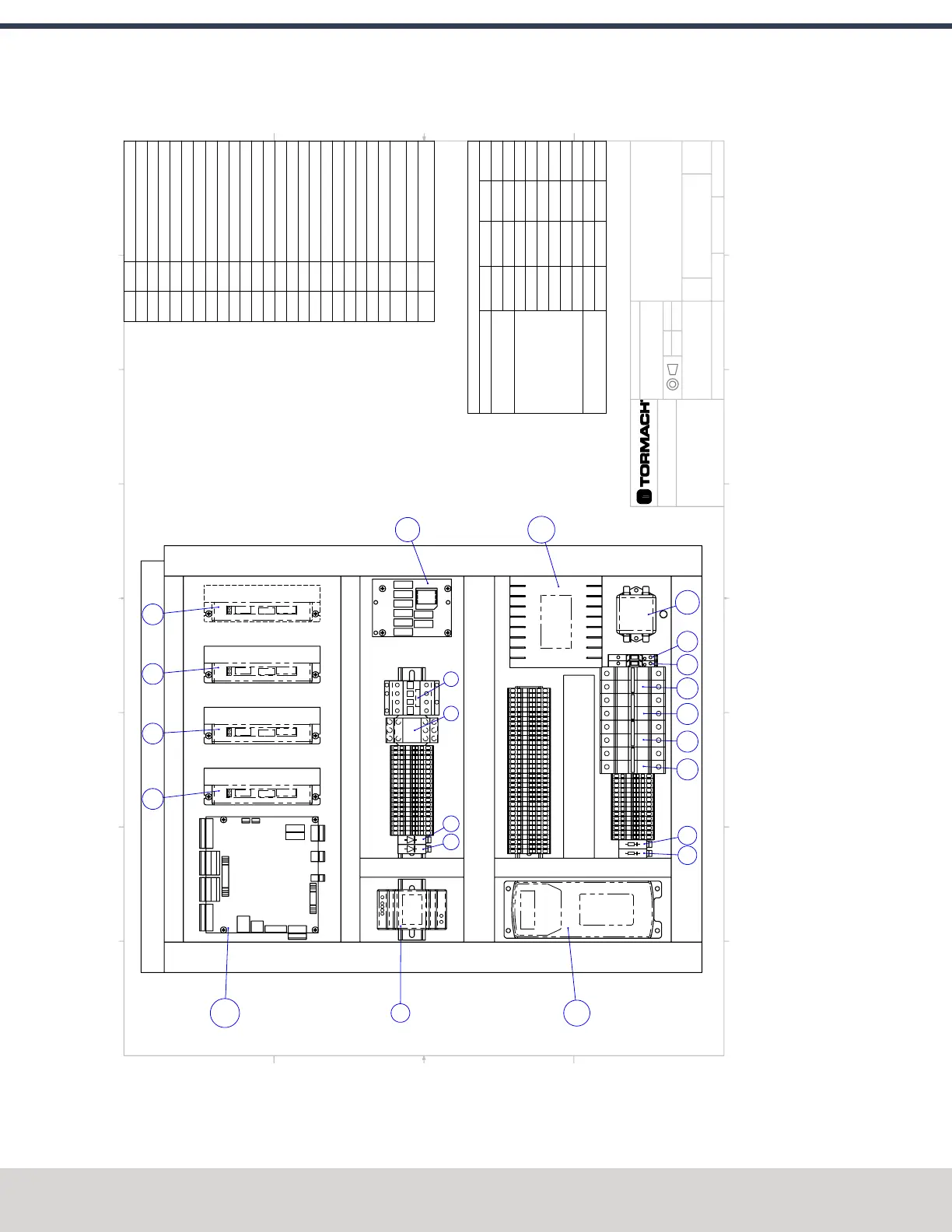

15.9 ELECTRICAL PANEL LAYOUT AND FUSE TABLE (SHEET 9)
ECM1
DR1
DR2
DR3
DR4
PS1
VFD1
SP1
CB1 CB2 CB3
CB4
EMI1
XFM1
BUS1
D1
D2
K1
K2
J5
J2
J6
J7
J10
J12
F 1 F 2
J4
J3
SP2
J1
F6
F8
F4F3
F2
F1
F1F2
REF
PN
DESCRIPTION
ECM1
37509
MACHINE CONTROL BOARD
DR1
32000
X-AXIS DRIVER (M ONLY)
DR2
32000
Y-AXIS DRIVER (M ONLY)
DR3
32000
Z-AXIS DRIVER (M ONLY)
DR4
--
A-AXIS DRIVER (OPTION)
PS1
50461
24 VDC POWER SUPPLY
D1
37514
FLYBACK PROTECTION DIODE
D2
37514
FLYBACK PROTECTION DIODE
K1
37515
RESET RELAY
K2
37343
SPINDLE CONTACTOR
BUS1
32005
DC BUS BOARD
VFD1
35716
SPINDLE MOTOR VFD
XFM1
30459 TRANSFORMER
SP1
37358
FLOOD COOLANT SUPPRESSOR
SP2
37358
MQL COOLANT SUPPRESSOR
CB1
37345
MAIN BREAKER
CB2
37345
MACHINE BREAKER
CB3
37346
ACCESSORY BREAKER
CB4
37516
AUXILIARY BREAKER
EMI1
32350 EMI FILTER
F1
38398
FUSE HOLDER
F2
38398
FUSE HOLDER
C1
30468
DC BUS CAPACITOR (SIDE OF
CABINET)
R1
37906
BRAKE RESISTOR (SIDE OF CABINET)
TS1
37420
BRAKE RESISTOR THERMAL SWITCH
(SIDE OF CABINET)
FUSE TABLE
COMPONENT
FUSE NO.
AMPERES
SPEED
PN
DC BUS TRANSFORMER XFM1
F1
2.5A
SLOW
38692
F2
2.5A
SLOW
38692
DC BUS BOARD
BUS1
F1
8A
FAST
31655
F2
8A
FAST
31655
F3
8A
FAST
31655
F4
8A
FAST
31655
F6
10A
SLOW
37949
F8
5A
FAST
30213
MACHINE CONTROL BOARD
ECM1
F1
3A
SLOW
31120
F2
3A
SLOW
31120
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
DATE
DRAWN BY
TITLE:
SIZE
B
DWG. NO.
REV
H
1100M/MX ELECTRICAL SCHEMATIC
ELECTRICAL PANEL LAYOUT
SHEET 9 OF 12
