3. Loosely attach the rotary table toe clamps to the
machine table.
Note: The components are left loose so that
you can adjust the rotary table.
4. Attach a magnetic dial indicator to the spindle head of
the machine.
5. Put the dial indicator on the rotary table so that it will
measure across the platter of the rotary table.
6. Jog the machine from side-to-side in the Y direction to
indicate across the platter.
7. Use a dead blow hammer to tap the rotary table and
adjust its position and reduce any misalignment
determined in Step 6.
8. Completely tighten the rotary table toe clamps to secure
the rotary table to the machine table.
Set Up the microARC 4
Complete the following steps in the order listed:
Required Tools 82
Install in Machine 82
Center the Chuck Mounting Plate 83
Required Tools
This procedure requires the following tools. Collect them
before you begin.
l 3 mm hex wrench
l Dead-blow hammer (or similar)
l Magnetic dial indicator
Install in Machine

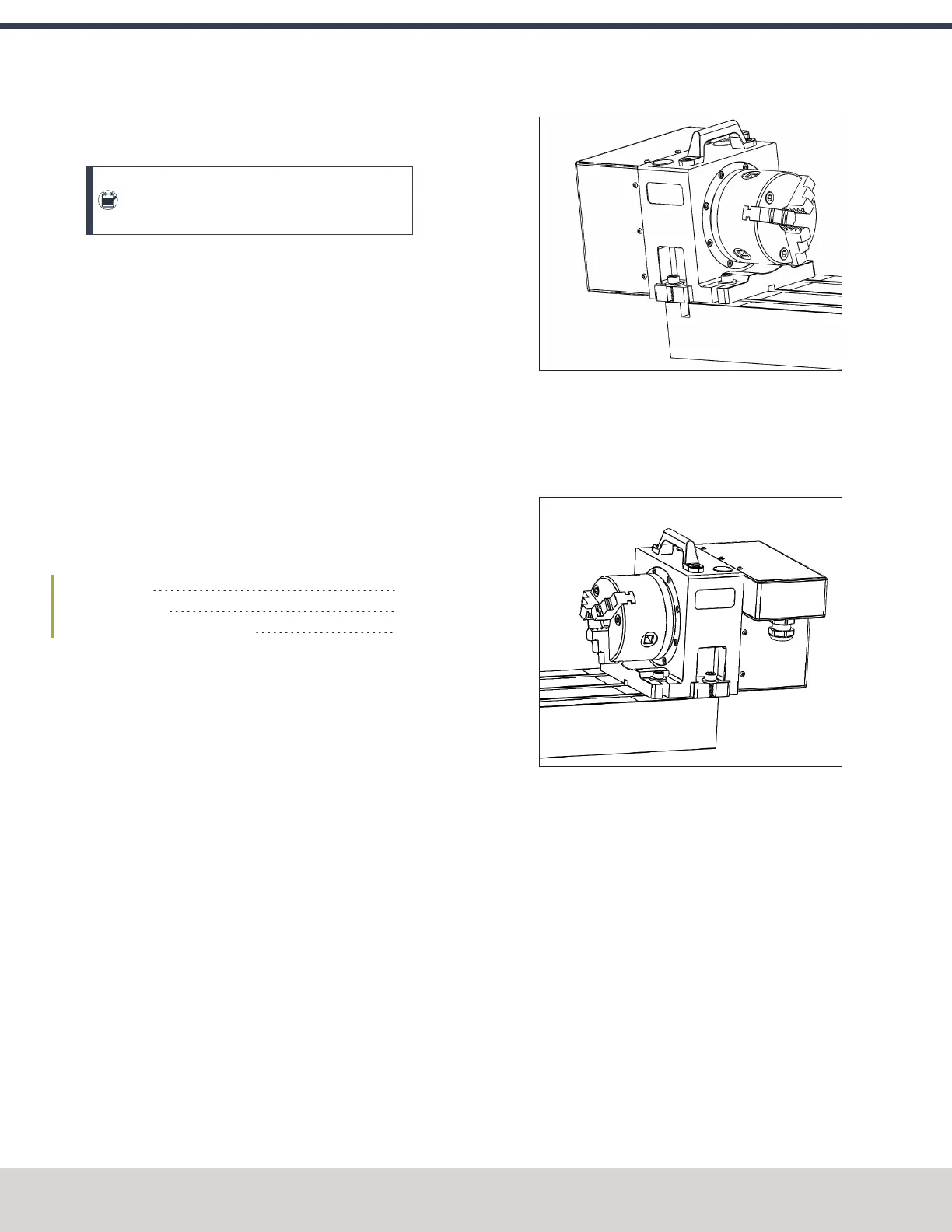

1. Put the microARC 4 on the machine table. There are
several mounting configurations available, depending on
the particular needs of a given project:
a.
Left Side (Using Accessory Mounting Holes) This
configuration provides the maximum available X work
space. If used with an ATC, the available tool
clearance is 10 cm from TTS flange to tool tip with
the 4th axis carrying handle removed.
b.
Right Side (Using Accessory Mounting Holes)
Using the 4th axis on the far right side of the machine
table provides the most X work envelope, but
interferes with the right side enclosure window, if
installed.
©Tormach® 2023
Specifications subject to change without notice.
Page 82 Tormach 1100M® Operator's Manual (Version 1223A)
For the most recent version, see tormach.com/support
4: INSTALLATION
