4: INSTALLATION
Required Tools
This procedure requires the following tools. Collect them
before you begin.
l Metric hex wrench set
l Permanent marker
l Shears or knife
Install the Enclosure Panels
Tip! To install the enclosure panels, work from the
left to the right of the machine.
To make it easier to install all components, don't
install the side windows until later in the procedure.
Keep all screws one quarter-turn loose while
installing the enclosure panels. This makes it easier
to align the panels. Once you're done installing the
enclosure, fully tighten all screws.
Install the Left Rear Panel
1. Attach the column cover to the machine column with
three M6 × 1.0 - 12 screws.
2. Attach the left rear panel to the column cover with three
M5 × 0.8 - 10 screws.
3. Attach the left rear panel to the left chip pan with three
M6 × 1.0 - 12 screws.

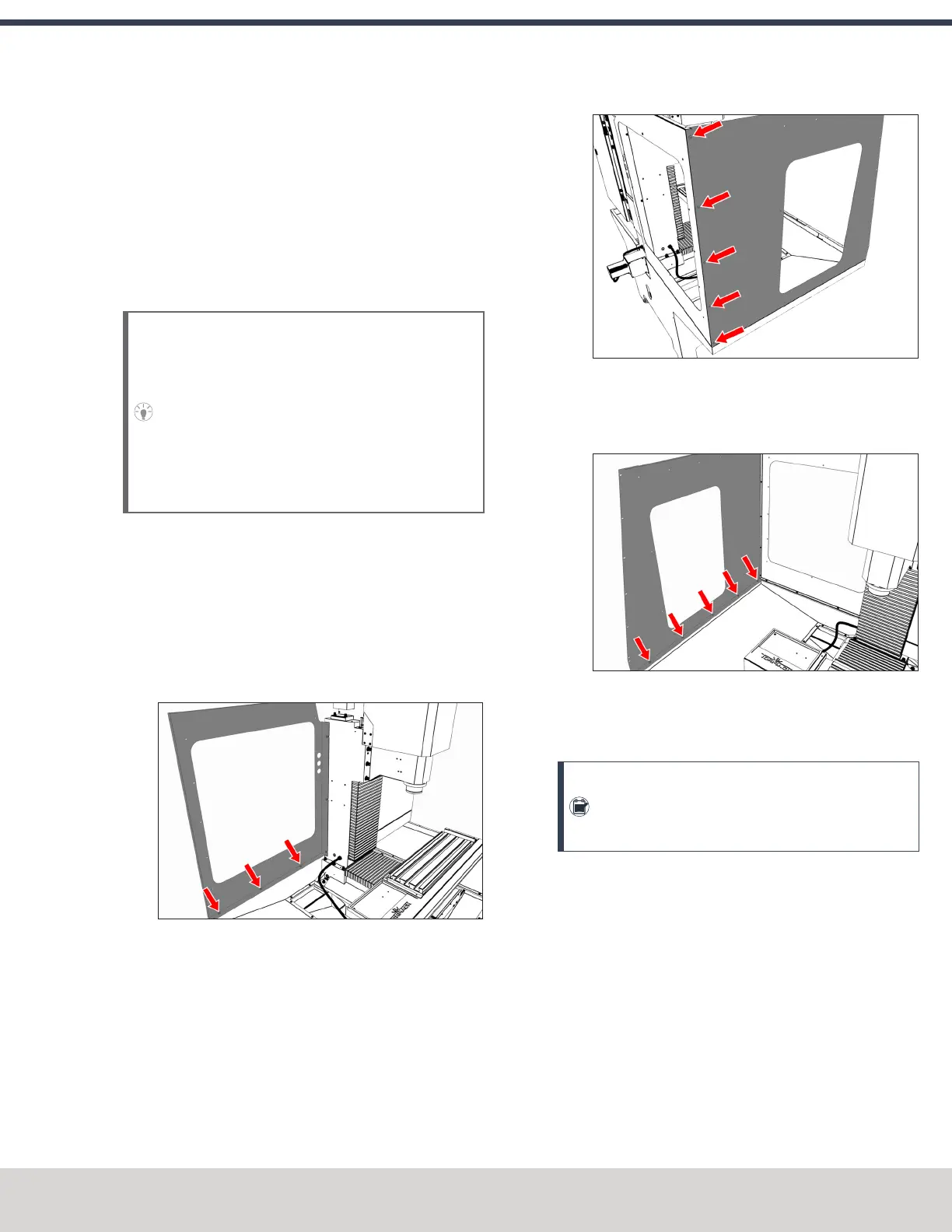

Figure 4-117: Left rear panel attached to the left chip
pan.
Install the Left Side Panel
1. Attach the left side panel to the left rear panel with five
M5 × 0.8 - 10 screws.
Figure 4-118: Left side panel attached to the left rear
panel.
2. Attach the left side panel to the left chip pan with five
M6 × 1.0 - 12 screws.
Figure 4-119: Left side panel attached to the left chip
pan.
Install the Left Side Window Retainers
Note: To make it easier to install all components,
don't install the side windows yet. Wait until later in
the procedure.
1. Push a strip of rubber window trim on to the edges of:
l Two vertical window retainers
l One horizontal window retainer
When finished, use shears or a knife to cut the excess
trim.
2. Loosely install two vertical window retainers on both
sides of the left side panel's window opening with two
sets of three M5 × 0.8 - 10 screws.
Don't fully tighten the screws. Leaving the window
retainers loose makes it easier to install the side
windows.
©Tormach® 2023
Specifications subject to change without notice.
Page 87 Tormach 1100M® Operator's Manual (Version 1223A)
For the most recent version, see tormach.com/support
