12. Select Reset.

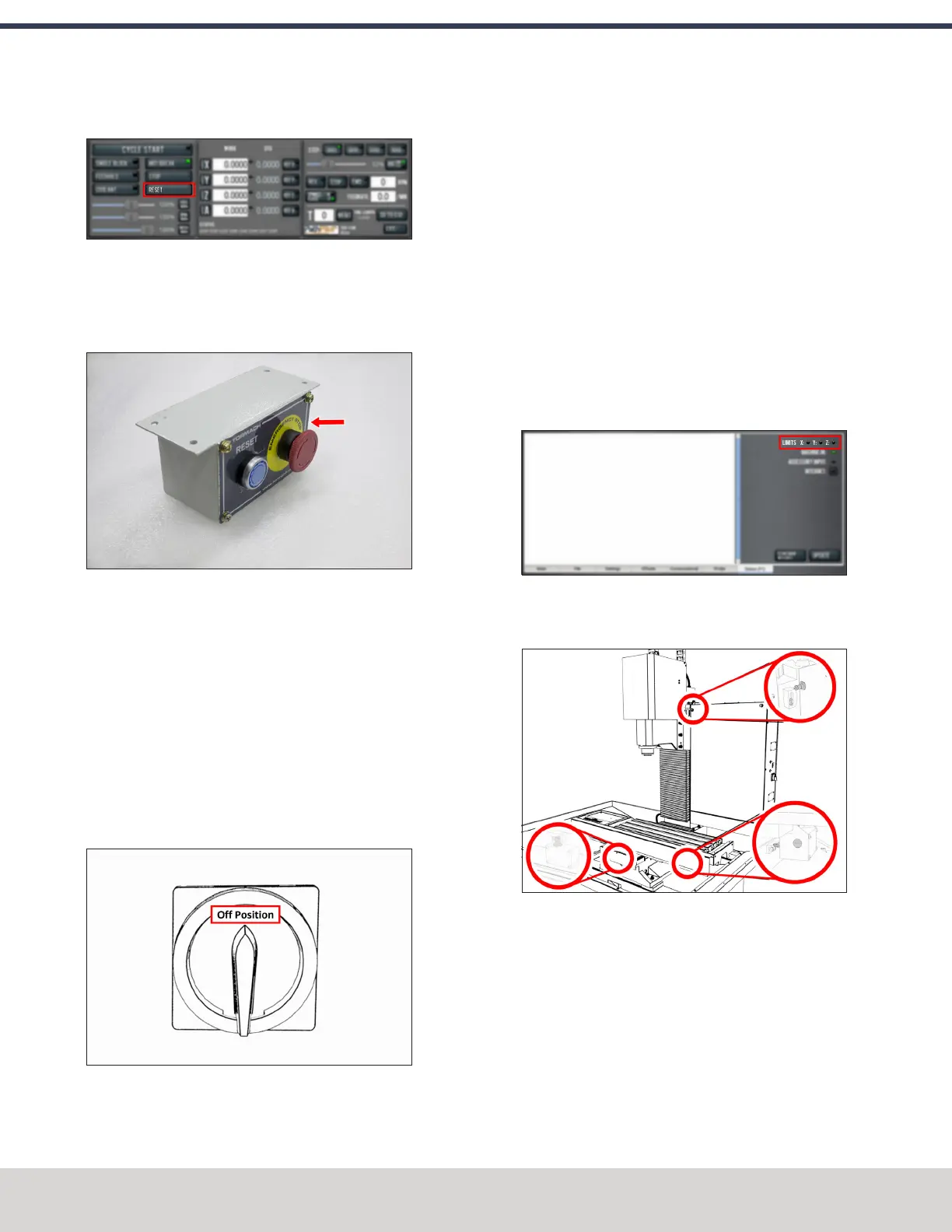

Figure 4-34: Reset button.
Power Off the Machine
1. Push the Emergency Stop button on the operator box to
lock it into the disabled position.
Figure 4-35: Example of the Emergency Stop button
locked in the disabled position.
With the Emergency Stop button in the disabled position
all motion and spindle function stops, and the Reset
button is disabled. On the operator box, the blue Reset
LED goes off. From the PathPilot interface, on the Status
tab, the Machine OK light illuminates yellow.
2. From the PathPilot interface, select Exit.
3. When prompted, select OK.
4. Once the PathPilot interface indicates that it's safe to
power off the machine, turn the Main Disconnect switch
to OFF.
Figure 4-36: Example of the Main Disconnect switch
in the Off position.
Mains power is disconnected from the machine.
Verify Limit Switch Function
You must confirm that the limit switches correctly operate.
1. Power on the machine and the PathPilot controller.
a. Turn the Main Disconnect switch to ONon the side of
the electrical cabinet.
b. Twist out the machine's red Emergency Stop button,
which enables movement to the machine axes and
the spindle.
c. Press the Reset button.
2. From the PathPilot interface, on the Status tab, identify
the X Limit, Y Limit, and Z Limit lights.
Figure 4-37: X Limit, Y Limit, and Z Limit lights on the
Status tab.
3. On the machine, identify the X, Y, and Z limit switches.
Figure 4-38: Machine limit switches.
4. One at a time, press the X, Y, and Z limit switches.
From the PathPilot interface, on the Status tab, the
corresponding X Limit, Y Limit, and Z Limit lights come
on.
5. From the PathPilot interface, select Reset.
Verify Axes Function
You must confirm that the axes correctly operate.
