4: INSTALLATION
4. Turn the Main Disconnect switch to ON.

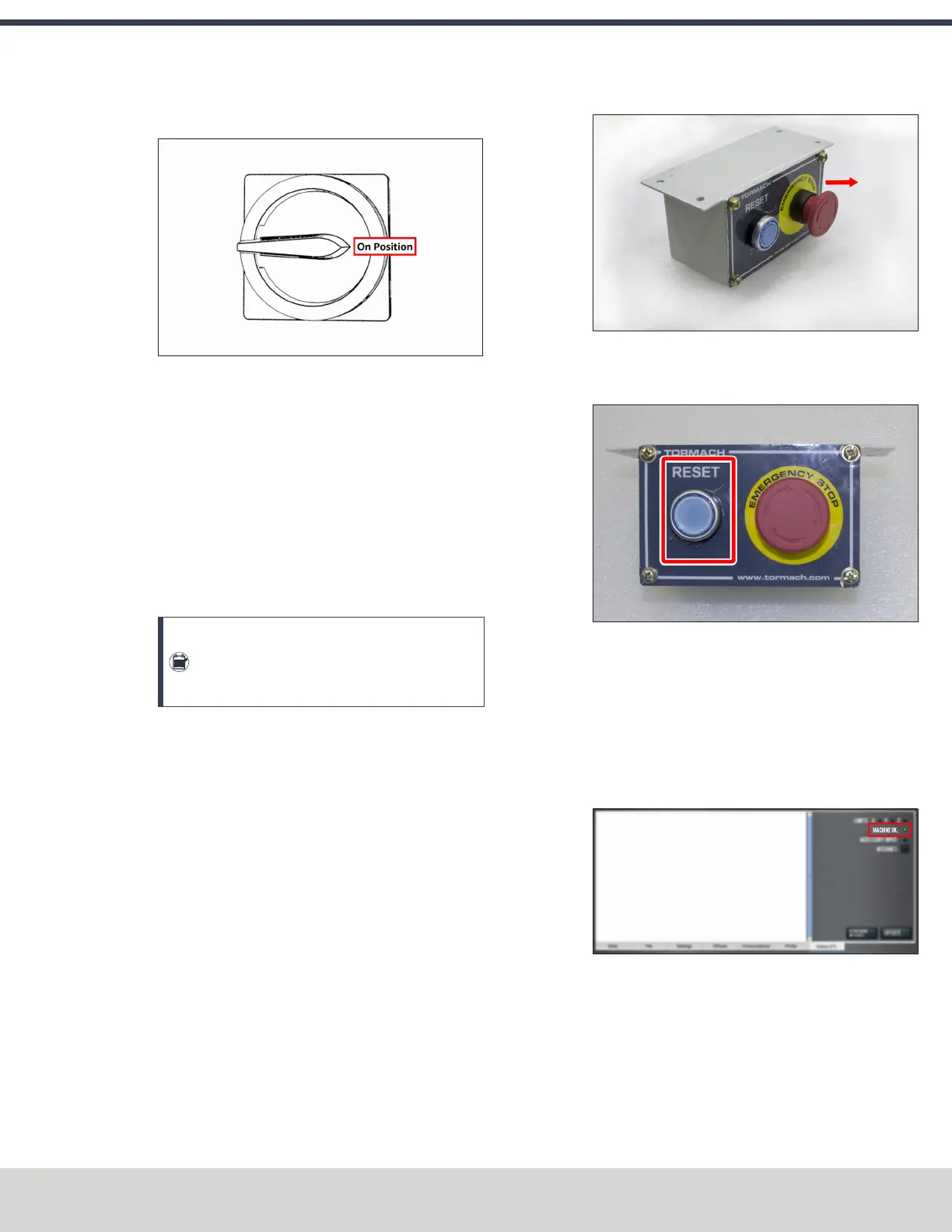

Figure 4-30: Example of the Main Disconnect switch
in the On position.
Mains power is now connected to the machine.
5. Push the Power button on the PathPilot controller, if it's
not already powered on.
6. Push the Power button on the monitor, if it's not already
powered on.
7. Follow the on-screen instructions to configure the
PathPilot operating system and PathPilot controller.
When configuration is complete, the PathPilot operating
system launches.
Note: After you first configure PathPilot, the
operating system automatically launches
whenever it's powered on.
8. Depending on which monitor you have, do one of the
following:
a.
Standard Monitor Go to the next step.
b.
Touch Screen Monitor You must first make sure
that the monitor is configured and calibrated. From
the PathPilot interface, in the MDILine DROfield,
type ADMIN TOUCHSCREEN. Then, select the Enter
key, and follow the on-screen instructions.
9. Rotate the Emergency Stop button on the operator box
one-quarter turn clockwise to release it.
Figure 4-31: The Emergency Stop button on the
operator box.
10. Push the blue Reset button to enable the machine.
Figure 4-32: The Reset button on the operator box.
The axis drives are now powered on.
11. Verify that the blue Reset LED on the operator box
comes on. From the PathPilot interface, on the Status
tab, verify that the Machine OK light changes from
yellow to green.
Once both are on, the machine is powered on and ready
to operate.
Figure 4-33: Machine OKlight on the Status tab.
©Tormach® 2023
Specifications subject to change without notice.
Page 53 Tormach 1100M® Operator's Manual (Version 1223A)
For the most recent version, see tormach.com/support
