4: INSTALLATION
1. Push a strip of rubber window trim on to the edges of:
l Two vertical window retainers
l One horizontal window retainer
When finished, use shears or a knife to cut the excess
trim.
2. Loosely install two vertical window retainers on both
sides of the right side panel's window opening with two
sets of three M5 × 0.8 - 10 screws.
Don't fully tighten the screws. Leaving the window
retainers loose makes it easier to install the side
windows.
3. Loosely attach one horizontal window retainer to the
bottom of the right side panel's window opening with
two M5 × 0.8 - 10 screws.

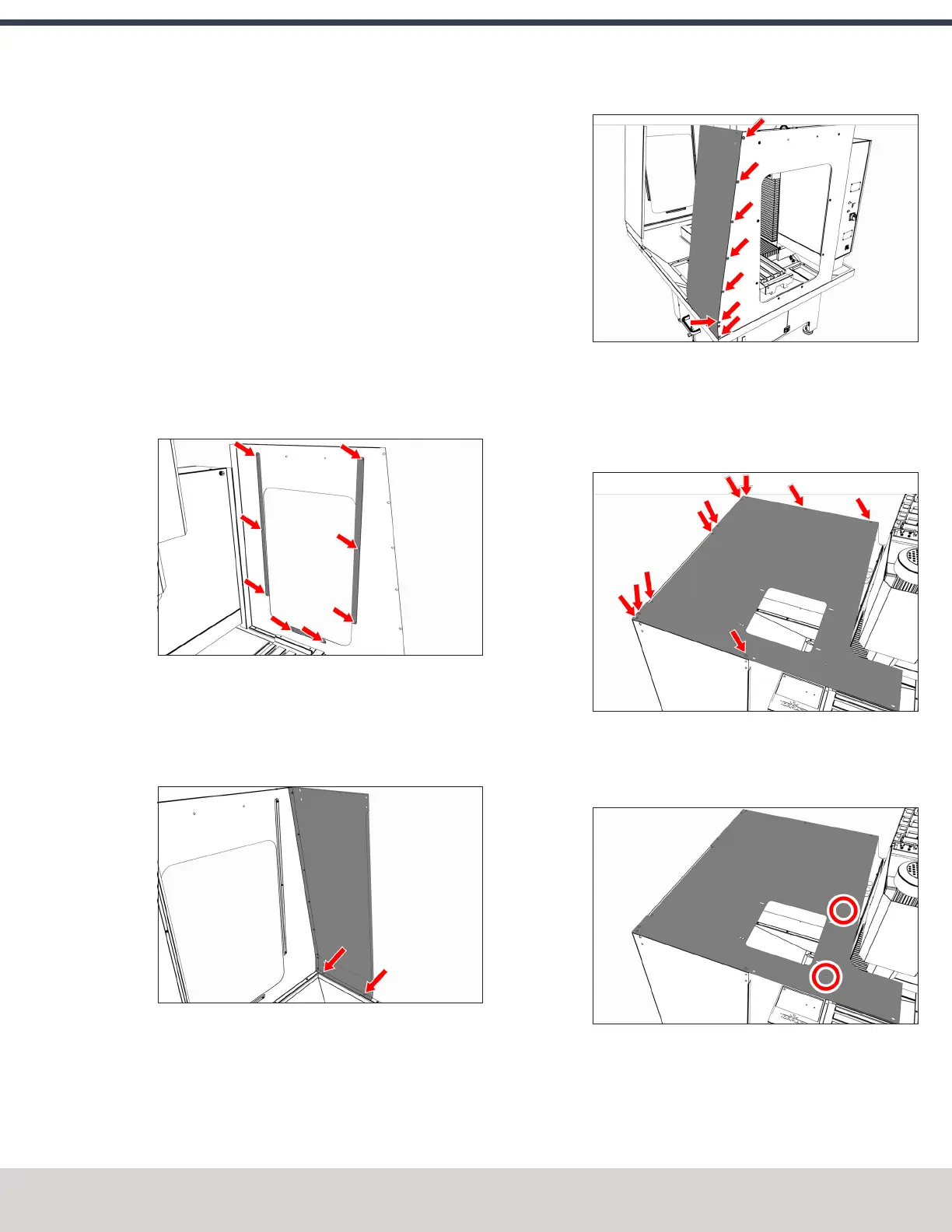

Figure 4-123: Side window retainers attached to the
right side panel.
Install the Right Front Panel
1. Attach the right front panel to the right chip pan with
two M6 × 1.0 - 12 screws.
Figure 4-124: Right front panel attached to the right
chip pan.
2. Attach the right front panel to the right side panel with
eight M5 × 0.8 - 10 screws.
Figure 4-125: Right front panel attached to the right
side panel.
Install the Left Top Panel
1. Attach the left top panel to the panels on the left side of
the enclosure with 12 M5 × 0.8 - 10 screws.
Figure 4-126: Left top panel attached to the left side
of the enclosure.
2. Attach two cable tie anchors to the left top panel with
two M5 × 0.8 - 10 screws.
Figure 4-127: Location to attach two cable tie anchors.
