4: INSTALLATION

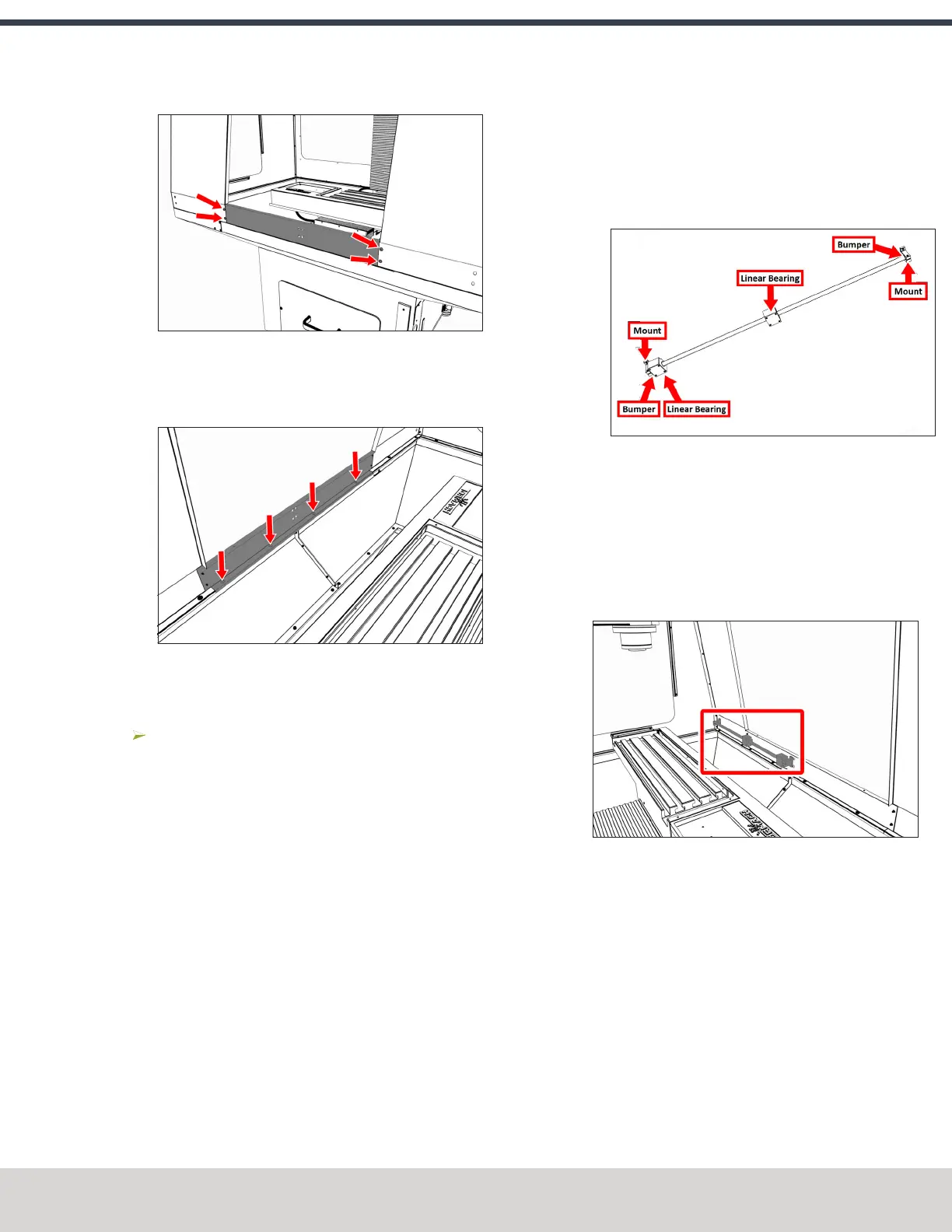

Figure 4-133: Front lower panel attached to the right
and left front panels.
2. Attach the front lower panel to the right and left chip
pans with four M5 × 0.8 - 10 screws.
Figure 4-134: Front lower panel attached to the right
and left chip pans.
Install the Rear Splash Shield
Attach the rear splash shield to the right chip pan below
the electrical cabinet with four M6 × 1.0 - 12 screws.
Assemble the Linear Rails
1. Find the four linear rails provided:use the two shorter
linear rails on the right side of the enclosure. Use the
two longer linear rails on the left side of the enclosure.
2. Assemble each linear rail in the following order:
a. Slide one linear rail mount onto one end of the linear
rail.
Don't completely tighten the clamping screw on the
linear rail mount. It's easier to install and align the
linear rails with loose clamping screws.
b. Slide one bumper onto the linear rail.
c. Slide two linear bearings onto the linear rail.
d. Slide one bumper onto the opposite end of the linear
rail.
e. Slide one linear rail mount onto the opposite end of
the linear rail.
Make sure that the linear rail mount's clamping
screw faces the same direction as the linear rail
mount that you installed in Step A.
Figure 4-135: Linear rail assembly.
3. Repeat Step 2 for the remaining three linear rails.
Install the Linear Assemblies
1. Align one short linear rail assembly to the two holes on
the inside of both the right front panel and the front
lower panel.
The linear rail mount's clamping screws must face up.
Figure 4-136: Right lower linear assembly attached to
the inside of the enclosure's lower right side.
©Tormach® 2023
Specifications subject to change without notice.
Page 91 Tormach 1100M® Operator's Manual (Version 1223A)
For the most recent version, see tormach.com/support
