4: INSTALLATION
11. Put a strip of butyl tape along the center seam on the
front of the right-hand chip pan to make a seal between
the two chip pans.
12. Remove the remaining cover paper from the butyl tape
strip.
13. Align the left-hand chip pan with the Machine Stand.
14. Loosely attach the left-hand chip pan to the Machine
Stand with a 4 mm hex wrench and 11 M6 × 1.0 - 12
button head flange screws.

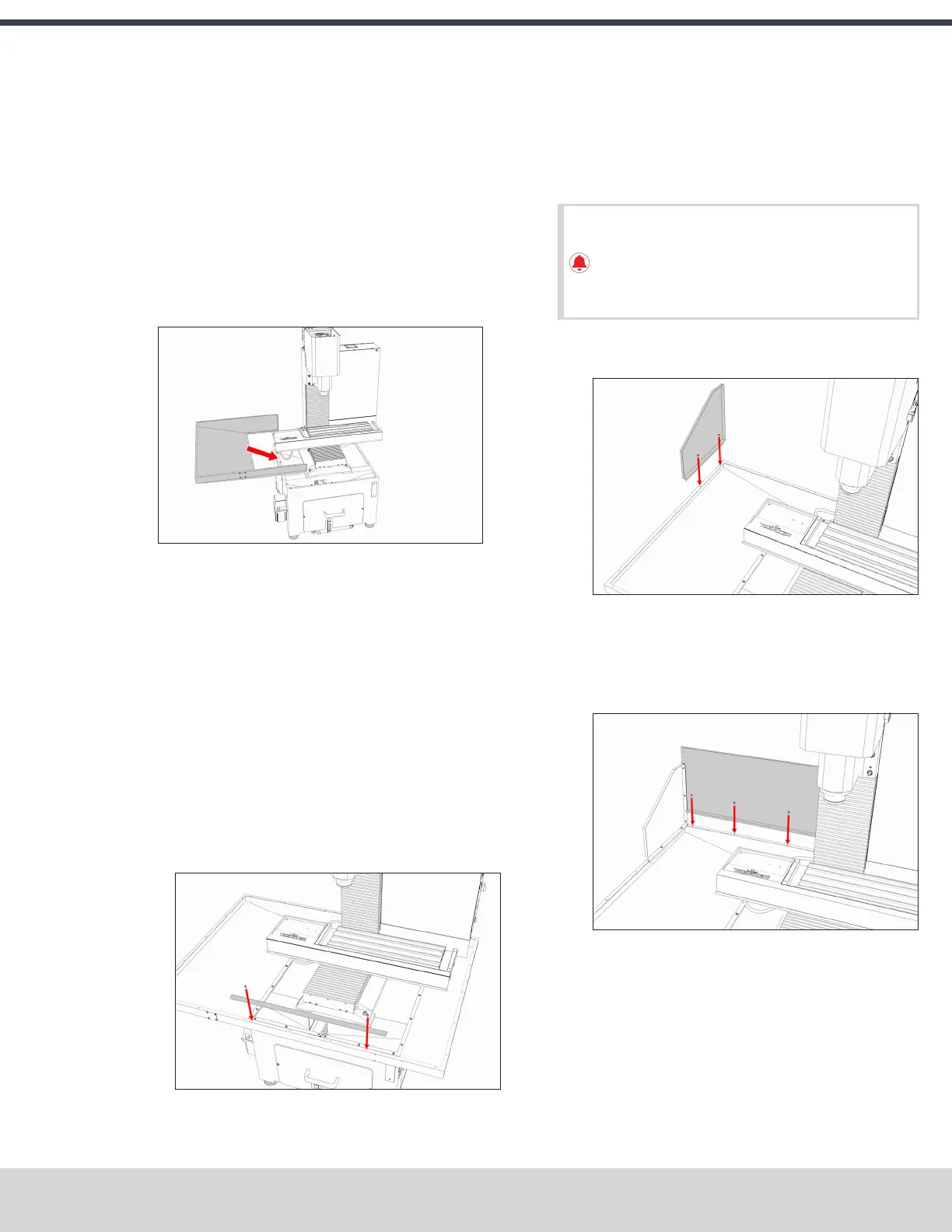

Figure 4-112: Left-hand chip pan aligned with the
Machine Stand.
15. Securely tighten all screws on the chip pans until they're
snug.
16. Install the Emergency Stop box to the front of the chip
pan with four M5 screws.
17. Depending on your machine setup, do one of the
following:
l
Machine with Enclosure You've completed the
installation of the chip pans.
l
Machine Without Enclosure Find the stainless
steel wear guard that you set aside earlier, and
attach it across the front of the chip pans with two
M5 × 0.8 - 10 button head flange screws.
Figure 4-113: Stainless steel wear guard aligned
with the front of the chip pans.
4.8.7 Install the Backsplash and Splash Guard
IMPORTANT! If you're installing an enclosure, don't
install the backsplash or splash guard; you don't need
them if you have an enclosure. Go to "Install the
Enclosure" (on the next page).
1. Attach the backsplash to the left-hand chip pan with a 4
mm hex wrench and two M6 × 1.0 - 12 screws.
Figure 4-114: Backsplash aligned with the left-hand
chip pan.
2. Attach the backsplash to the rear of the left-hand chip
pan with a 4 mm hex wrench and three M6 × 1.0 - 12
screws.
Figure 4-115: Backsplash aligned with the rear of the
left-hand chip pan.
©Tormach® 2023
Specifications subject to change without notice.
Page 85 Tormach 1100M® Operator's Manual (Version 1223A)
For the most recent version, see tormach.com/support
