Install the Right Top Panel
1. Attach the right top panel to the panels on the right side
of the enclosure with nine M5 × 0.8 - 10 screws.

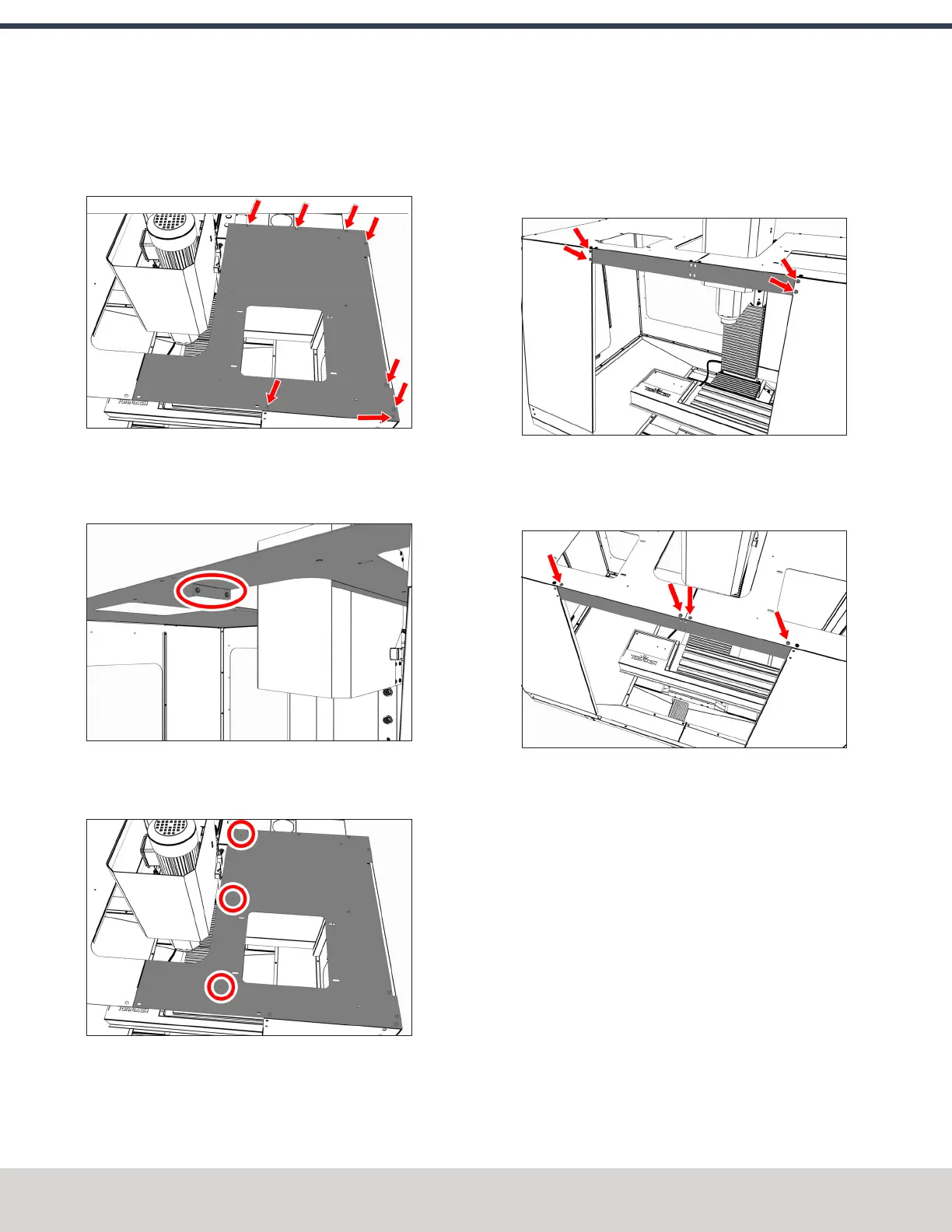

Figure 4-128: Right top panel attached to the right
side of the enclosure.
2. Connect the left and right top panels with two M5 × 0.8 -
10 screws.
Figure 4-129: Left and right top panels connected.
3. Attach three cable tie anchors to the right top panel with
three M5 × 0.8 - 10 screws.
Figure 4-130: Location to attach three cable tie
anchors.
Install the Upper Front Panel
1. Attach the front upper panel (with the threaded holes
facing up) to the right and left front panels with two sets
of two M5 × 0.8 - 10 screws.
Figure 4-131: Front upper panel attached to the right
and left front panels.
2. Attach the front upper panel to the right and left top
panels with four M5 × 0.8 - 10 screws.
Figure 4-132: Front upper panel attached to the right
and left top panels.
Install the Front Lower Panel
1. Attach the front lower panel to the right and left front
panels with two sets of two M5 × 0.8 - 10 screws.
©Tormach® 2023
Specifications subject to change without notice.
Page 90 Tormach 1100M® Operator's Manual (Version 1223A)
For the most recent version, see tormach.com/support
4: INSTALLATION
