CAUTION! Sharp Objects Hazard: Before opening the
shipping crate, you must put on work gloves and
safety eyewear that meets ANSI Z87+. If you don't,
the shipping crate and steel straps could cut you,
causing serious injury.
1. Put on work gloves and eye protection.
2. Cut and remove the steel straps on the shipping crate
with snips.
3. Disassemble the shipping crate with a hammer and pry
bar. Start with removing the top, followed by the four
sides.
4. Inspect the item(s):
l Photograph any damage that may have occurred
during shipping.
l Verify the received goods against the packing list.
If there is any damage or shortages, you must contact
Tormach within 30 days of receipt. Create a support
ticket with Tormach Technical Support at
tormach.com/how-to-submit-a-support-ticket for
guidance on how to proceed.
5. Find the accessory box inside the Machine Stand, which
contains the feet for the Machine Stand. Set it aside for
later installation.
6. Remove the shipping bolts on the coolant tank, and then
move it out of the Machine Stand and off of the pallet.
7. In the coolant tank, find four casters and their hardware.
8. Attach each of the four casters to the bottom of the
coolant tank with four M6 × 12 mm socket head cap
screws, spring washers, and flat washers. Then, set the
coolant tank aside for later installation.
9. Remove the four nuts securing the Machine Stand to the
pallet with a 17 mm wrench. Discard the four nuts.
10. To install the Machine Stand's feet, you must first lay it
on its front surface. Put a large piece of cardboard (or
similar) on the floor to protect the Machine Stand.
CAUTION! Team Lift Required:You must have
the aid of more than one person to lift and
move the object. The object is heavy, and lifting
it by yourself can cause serious injury.
11. Lift the Machine Stand off the pallet, and set it down on
the cardboard that you put on the floor in Step 10.

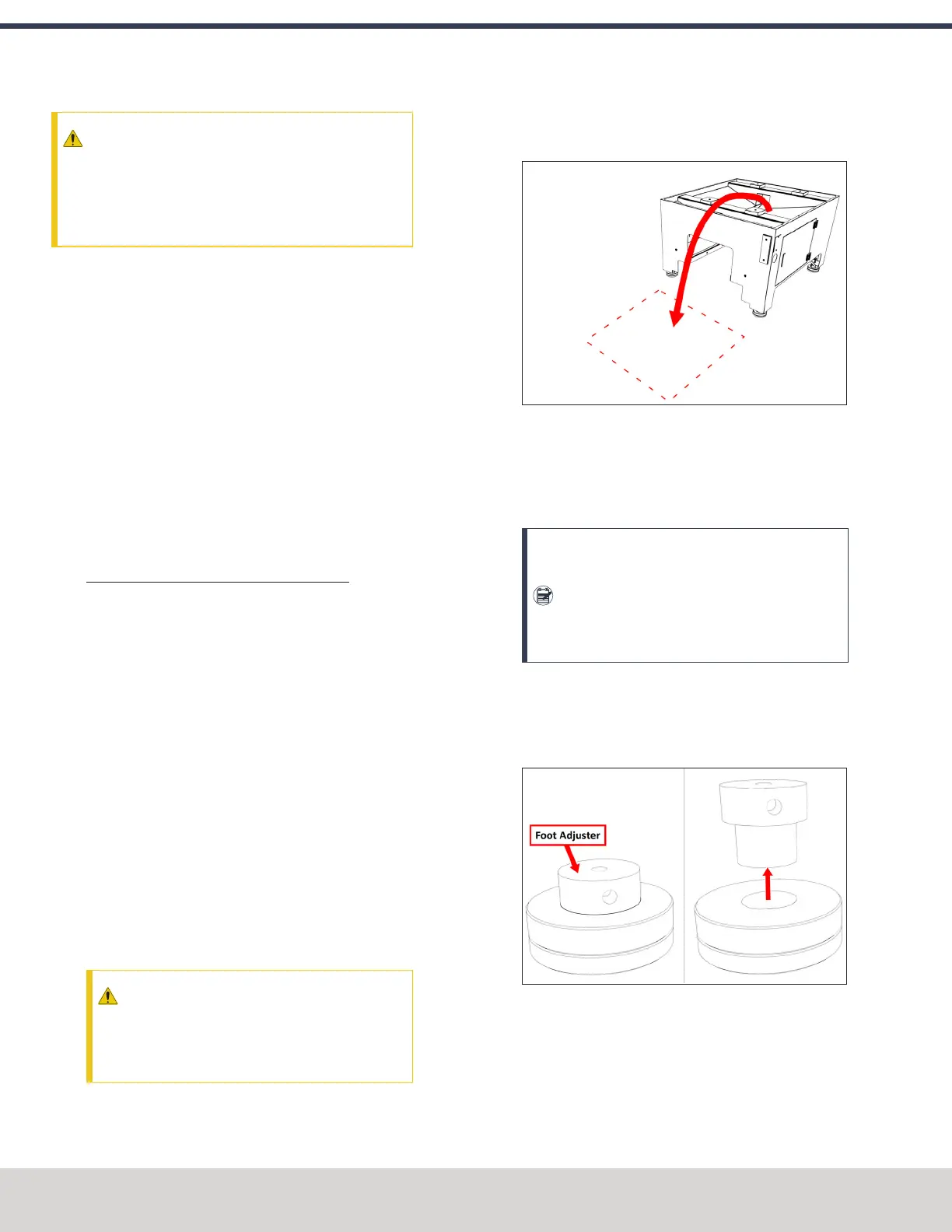

Figure 4-1: Cardboard on the floor to set the Machine
Stand on.
12. Open the accessory box that you set aside in Step 5, and
then identify the hardware inside (which is used to
assemble the feet for the Machine Stand).
Note: There are four large spacers in the
accessory box that are used to assemble the
feet for a 770M/MXmill. If you're assembling
the feet for an 1100M/MX mill, discard the
spacers.
13. Identify the foot pad from the accessory box, and
unscrew the foot adjuster as shown in the following
image. Then, apply Anti-Seize to both components, and
reassemble the foot pad.
Figure 4-2: Disassembling the foot pad to apply Anti-
Seize on each component.
