CHAPTER 5 TPCL-LE MODE (INTERFACE COMMANDS)
B-EP Series
5-131
(5) 1-cell width
When the 1-cell width is set to 0 for the QR code, a two-dimensional code is not drawn.
However, the barcode printed on the previous label is cleared.
(6) Selection of mode
All codes including alphanumerals, symbols and Kanji can be used in one QR code.
Manual mode or automatic mode can be selected to perform the operation.
(7) Rotational angle of two-dimensional code
0° 90° 180° 270°
(8) Selection of model
Model 1: Original specification
Model 2: Extended specification which enhances the function of position correction
and can contain a large amount of data.
(9) Mask number
It is preferable that the black and white modules are arranged in well-balanced manner so
that a QR code is read for sure. The mask number prevents the bit pattern “1011101,”
which is characteristically seen in the position detecting pattern, from appearing in the
symbol as much as possible.
The mask number is ranging from 0 to 7. The pattern of the code is determined by
placing each masking pattern for the mask number over the module pattern. When the
mask number is set to 8, masking is not performed. When the parameter is omitted, the
most appropriate mask number is automatically selected to perform masking.

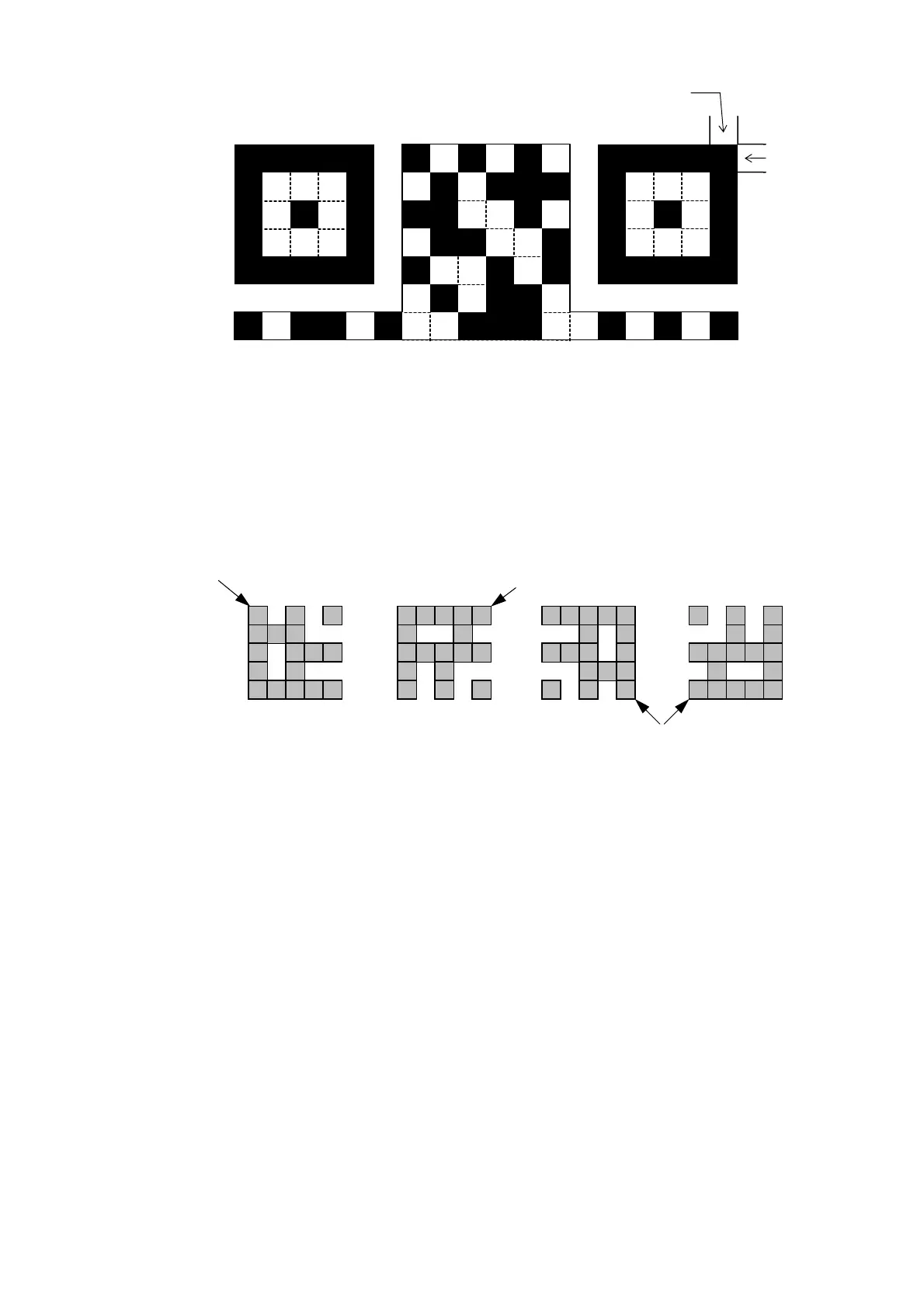

1-cell width
