CHAPTER 5 TPCL-LE MODE (INTERFACE COMMANDS)
B-EP Series
5-183
Explanation
(1) When the graphic data “0,” “1,” “2,” “3” or “6” is selected, the graphic data is drawn by
overwriting the image buffer.
(2) When the graphic data “4” or “5” is selected, the graphic data is drawn by carrying out OR
between the graphic data and the data in the image buffer.
(3) When the graphic data “7” is selected, the graphic data is drawn by carrying out
Exclusive-OR between the graphic data and the data in the image buffer.

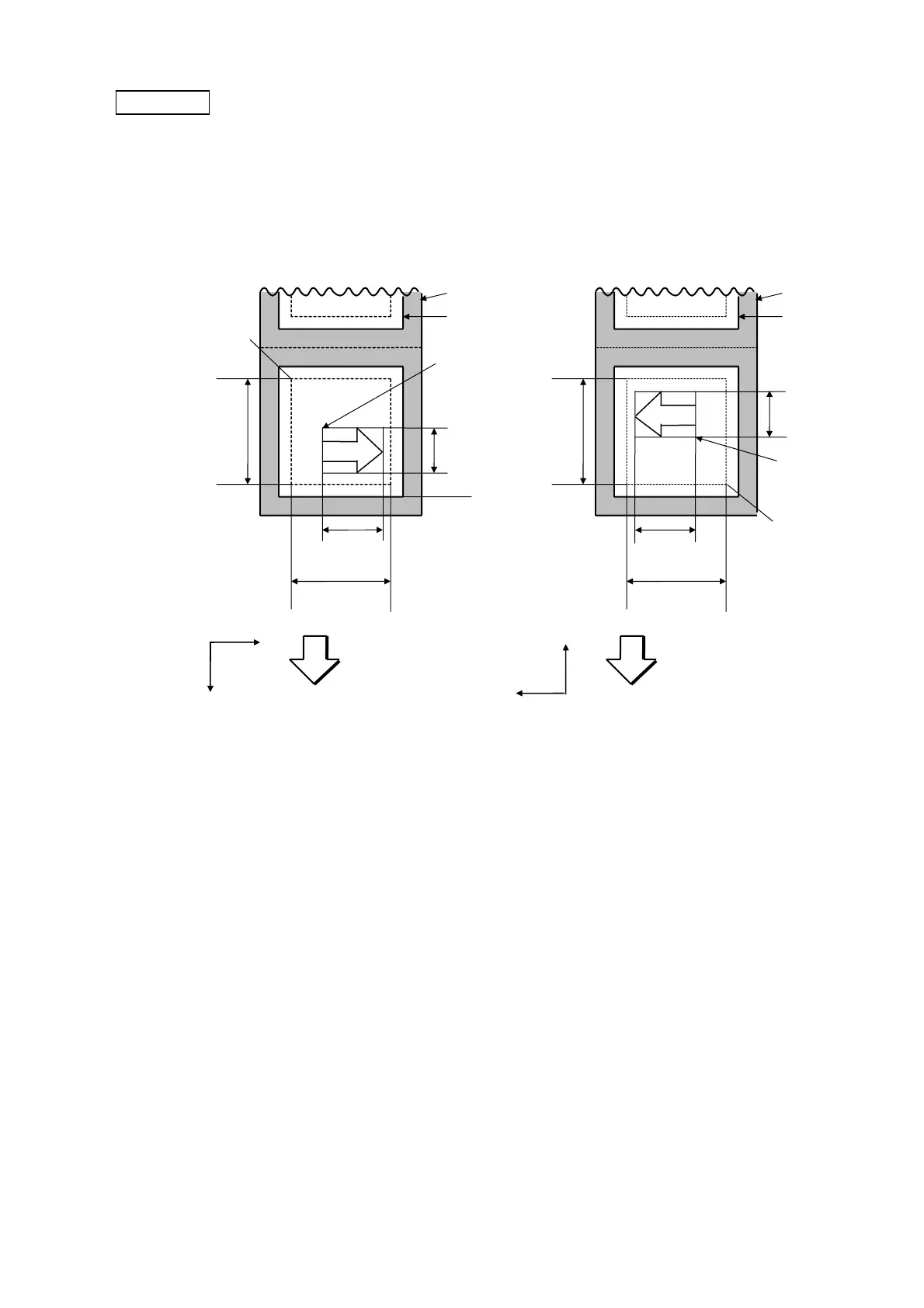

Effective
print width
[Print direction: Top first]
Paper feed direction
0
Y
X
Print origin of
coordinates
Origin of
coordinates
(0, 0)
Graphic
height dots
Effective
print length
Graphic width
dots
[Print direction: Bottom first]
Effective
print width
Paper feed direction
0
X
Y
Effective
print length
Origin of
coordinates
(0, 0)
Backing paper
Label
Graphic width
dots
Graphic
height dots
Print origin of
coordinates
Backing paper
Label
