Toshiba B-EP4DL-GH32-QM-R Interface Specification

CHAPTER 5 TPCL-LE MODE (INTERFACE COMMANDS)
B-EP Series
5-184
Nibble mode
1
30H
2
30H
3
33H
4
30H
5
30H
6
30H
7
30H
8
30H
•
•
•
•
•
•
•
•
126 30H
127 33H 128 3FH 129 30H 130 30H 131 30H 132 30H
Hex. mode
1
00H
2
30H
3
00H
4
00H
5
38H
•
•
•
•
•
63
00H
64
3FH
65
00H
66
00H
[Nibble mode]
(1) The graphic data is separated into four dot units and sent in above-mentioned order (1
→
132). (Upper digit: “3”)
(2) The graphic data is 30H to 3FH.
(3) The minimum unit in the X direction is 8 dots. Dots with no data are transmitted as data
0.
(4) The graphic data count must be as follows:
Graphic data count = {(No. of graphic width dots + 7)/8} × No. of graphic height dots × 2
* The value in the brackets is rounded down to the nearest whole number.
[Hex. mode]
(1) The graphic data is separated into eight dot units and sent in above-mentioned order (1
→ 66).
(2) The graphic data is 00H to FFH.
(3) The minimum unit in the X direction is 8 dots. Dots with no data are transmitted as data
0.
(4) The graphic data count must be as follows:
Graphic data count = {(No. of graphic width dots + 7)/8} × No. of graphic height dots
* The value in the brackets is rounded down to the nearest whole number.

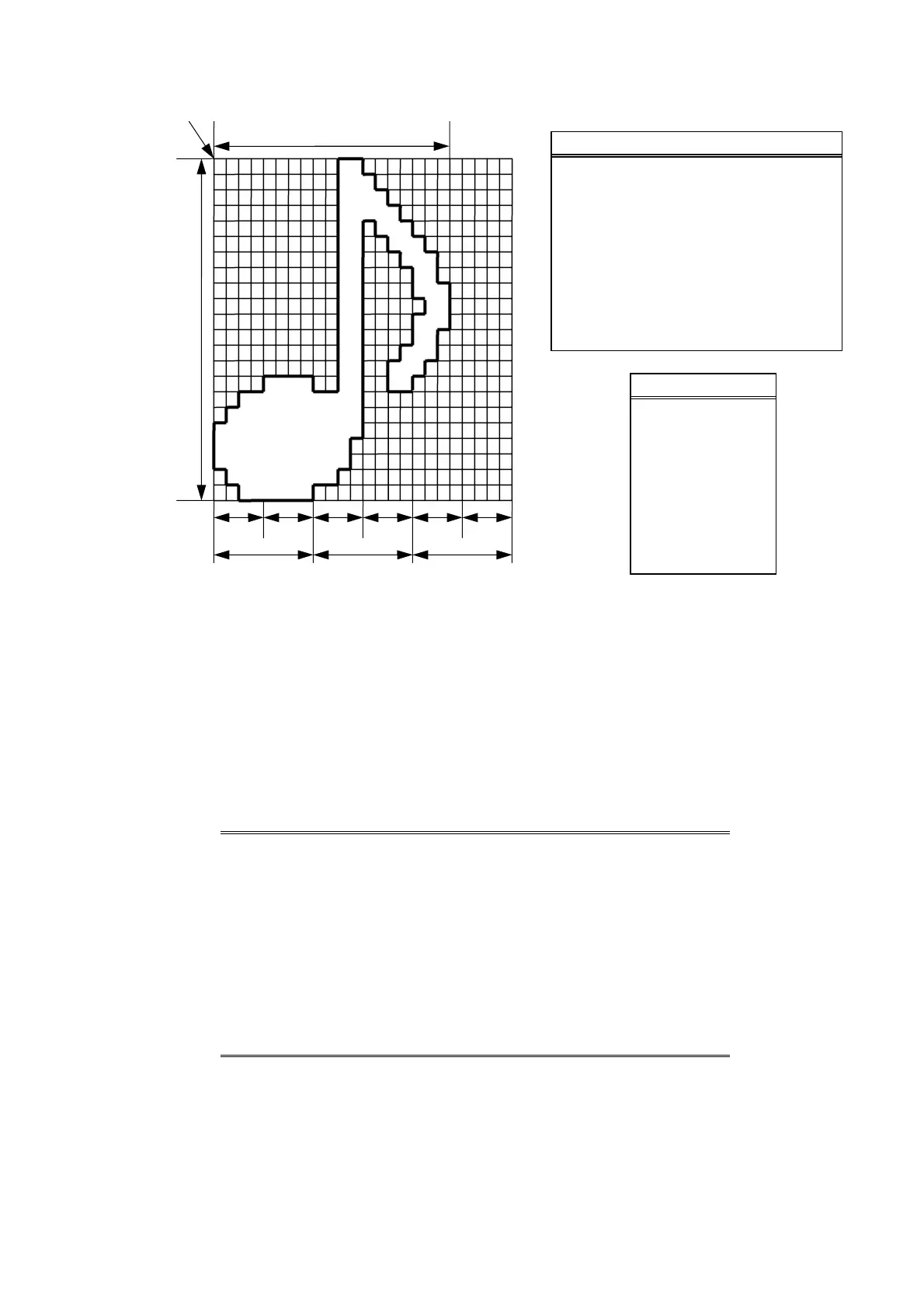

8 8 8
Graphic width 19 dots
Print origin of
coordinates
Graphic
height
22 dots
4 4 4 4 4 4
