5. Continue through the Machine Settings wizard until the setup is complete.
Press Finished.
6. Confirm the machine settings in the Diagnostics dialog. For more information,
see A.15 Diagnostics.
A.6 External lightbar configuration
Note – Internal lightbars (integrated into the display) can be configured for either
CB450 or CB460. This section applies only to external lightbars, which are not
supported by the CB450 (CB460 only).
To set the external lightbar location and orientation, use the Lightbar Connections
dialog.

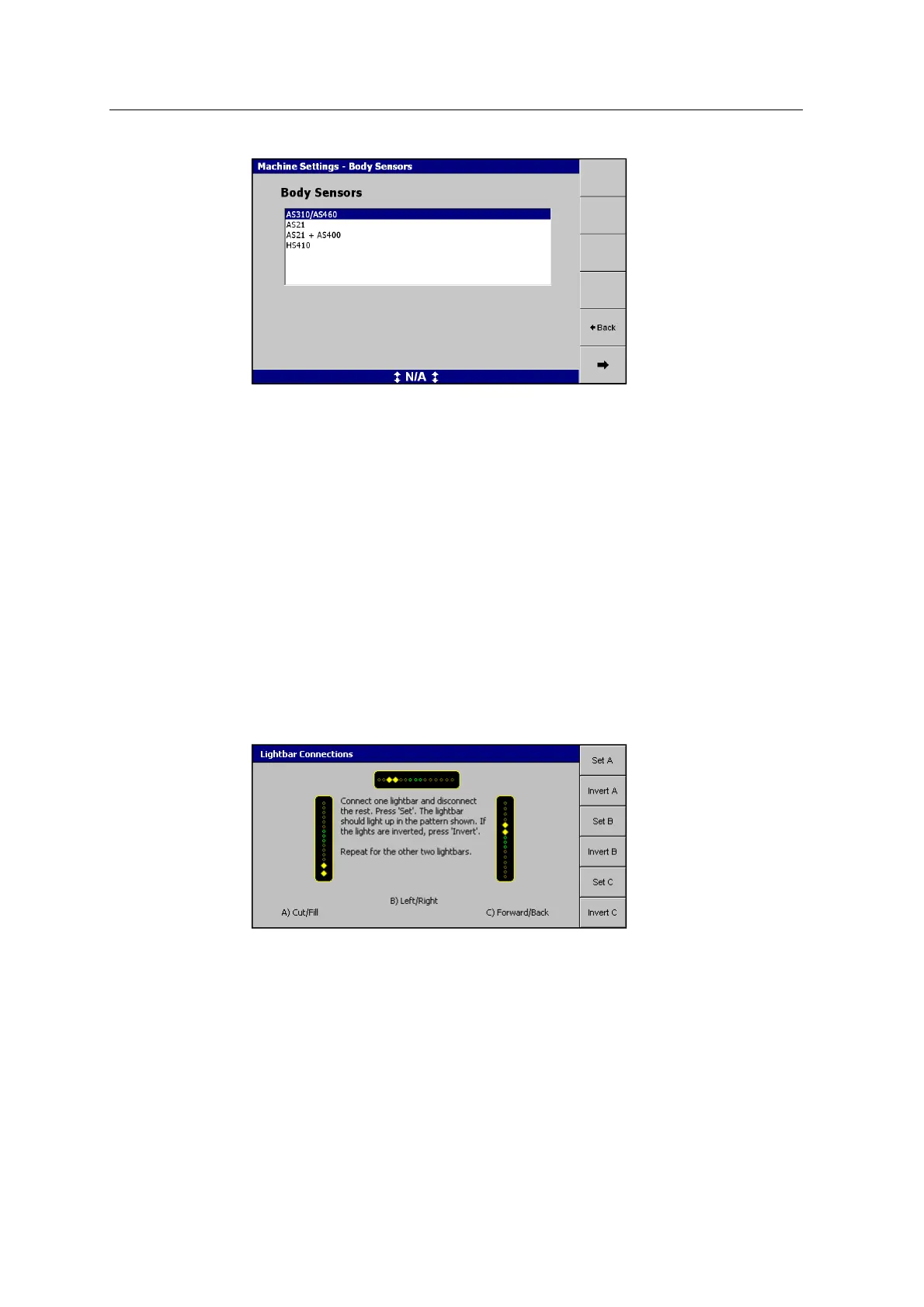

1. From Setup Menu – Installation select Lightbar Connections. For a GNSS/UTS
system, the following dialog appears:
For a Depth and Slope system, the following dialog appears:
144 GCS900 GradeControl System for Excavators Installation Manual
