Welding andFitting Tasks 6
1

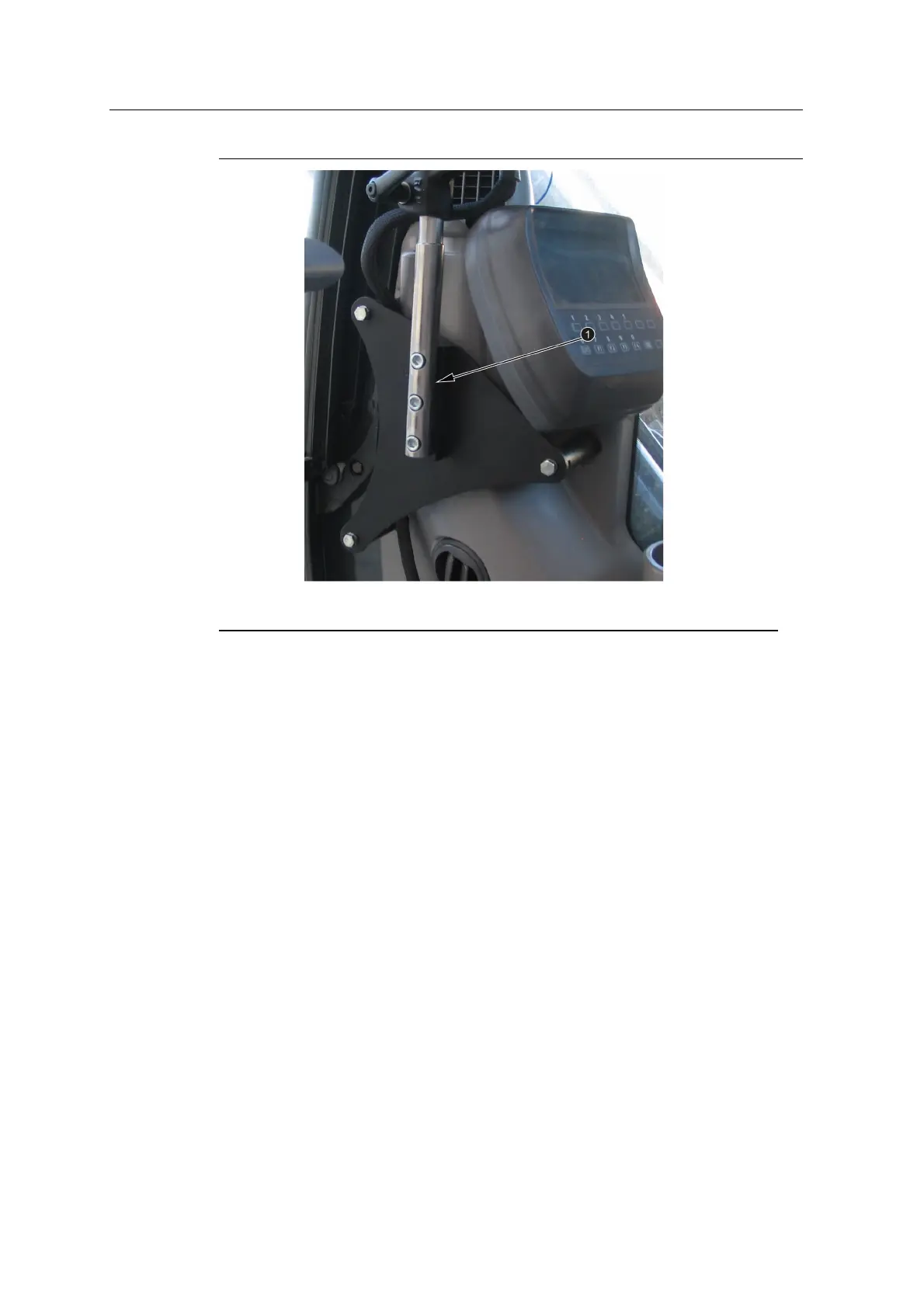

Control box mount
Figure 6.5 Machine specific control box mount
6.12.1 Generic mount
The following photo shows the generic control box mount. Fitting or welding work
will probably be required.
GCS900 Grade Control System for Excavators Installation Manual 61
