2D system measurements 9
9.9.3 Bucket width

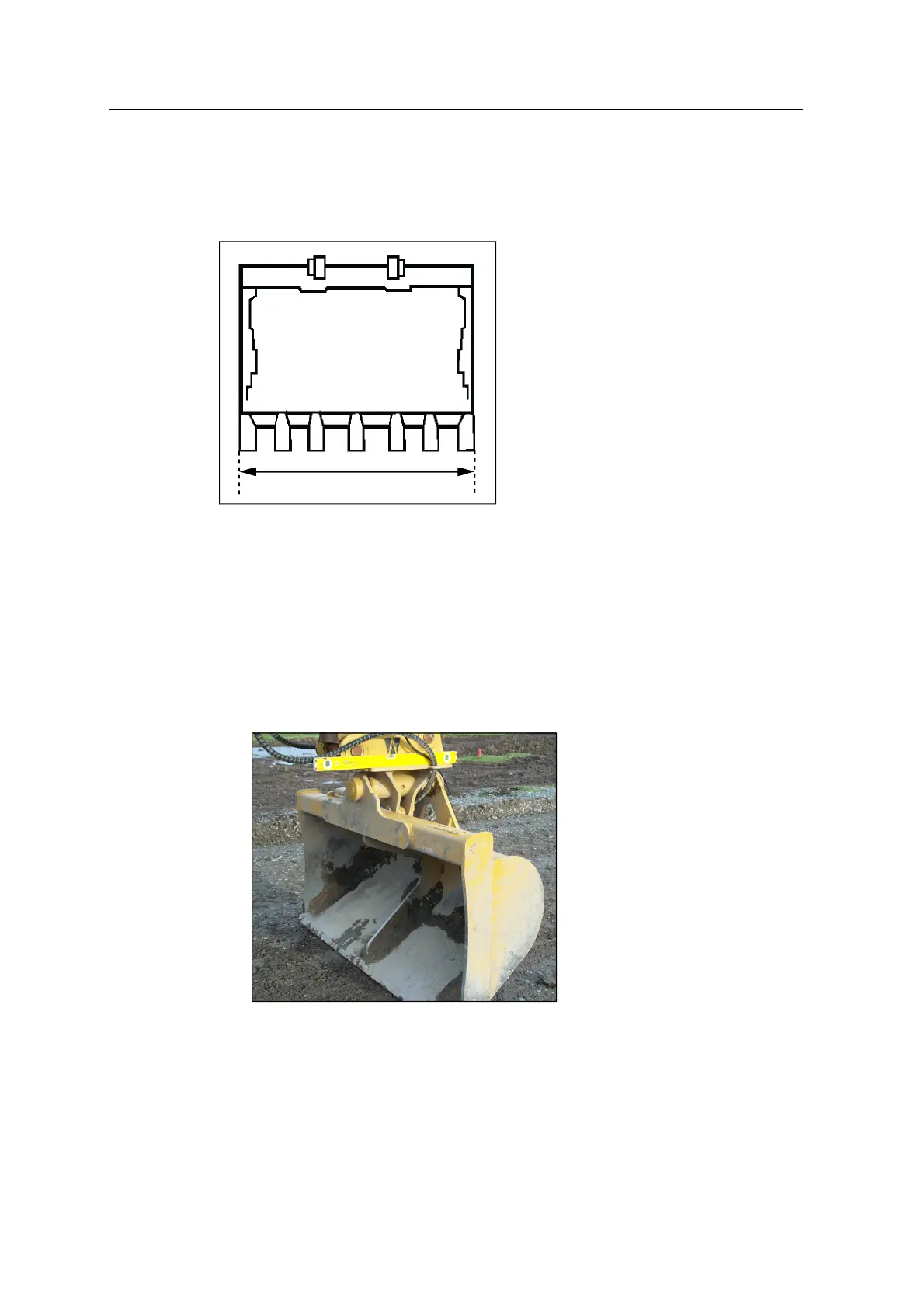

Measure from one outer edge of the bucket to the other:
9.9.4 J–K
Note – This measurement is for tilt bucket systems only. You enter this
measurement when you create or edit the tilt bucket model. For more information,
see 9.12 Create bucket.
1. Level the bucket tilt axis.
Note – If you cannot access the bucket tilt axis, level two points that are
parallel to the bucket tilt axis - as shown below:
2. Level the bucket tips.
GCS900 Grade Control System for Excavators Installation Manual 99
