6 Welding andFitting Tasks
6.6.2 Install the bucket angle sensor bracket
Stitch weld each side of the bracket using three 25mm (1 inch) long, 5 mm (3/16
inch) fillet beads.
6.7 Bucket cable clamp bracket

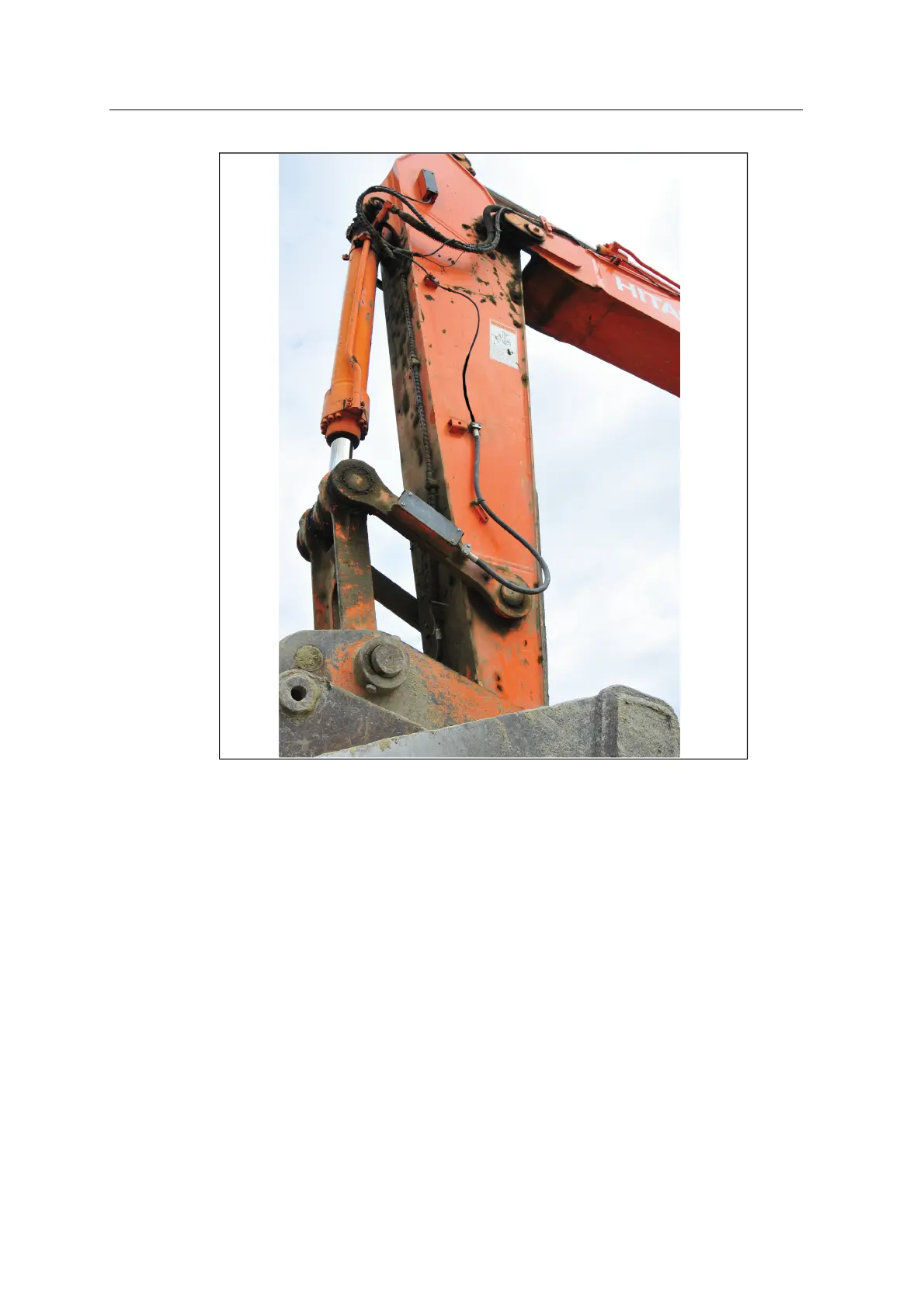

The bucket angle sensor may be connected to the arm harness with an armored
cable. In order to reduce the likelihood of damage to the sensor due to the stiffness
of the armored cable both ends of the cable are secured with clamps.
48 GCS900 Grade Control System for Excavators Installation Manual
