9 2D system measurements

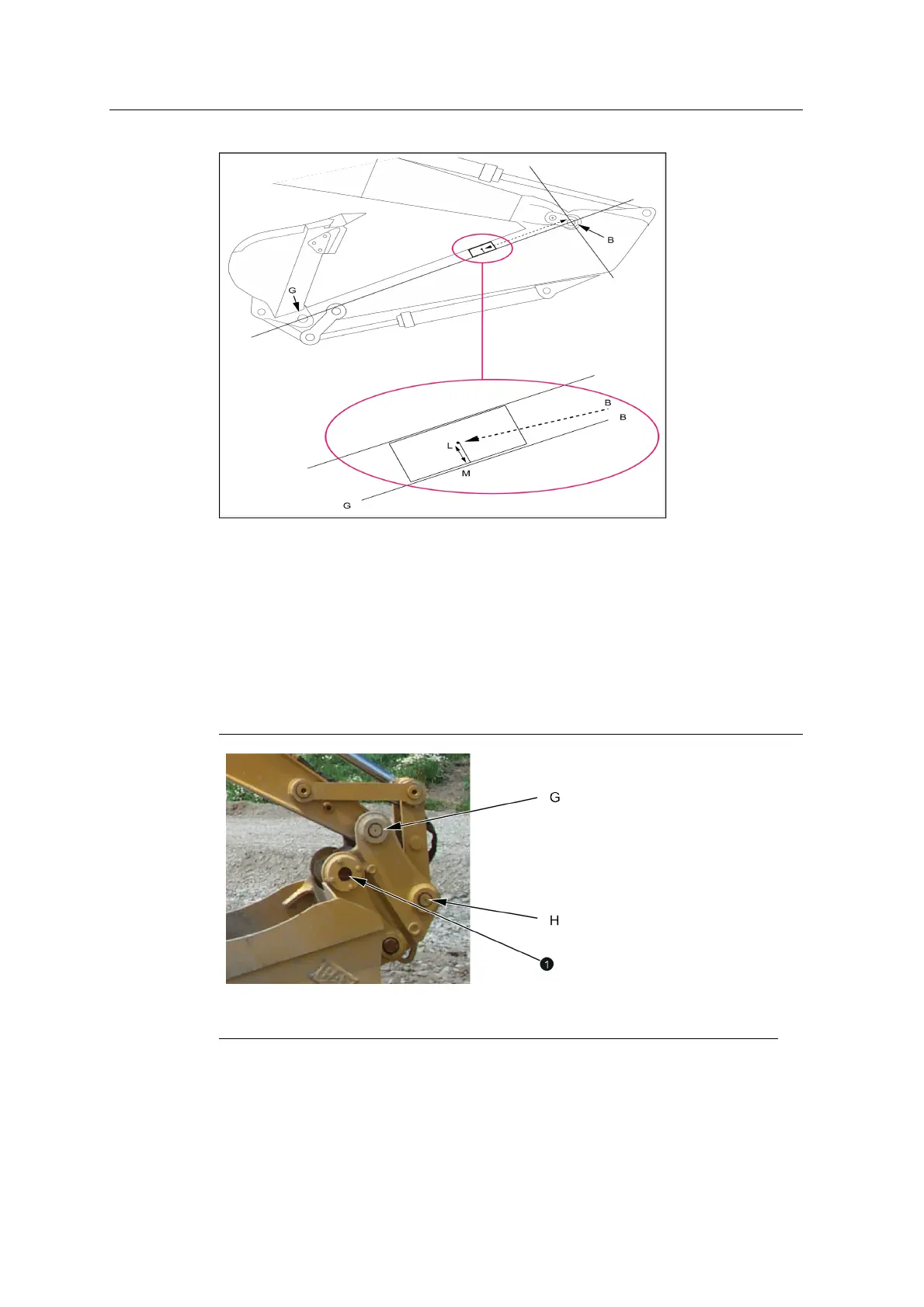

Figure 9.2 B–L positive; L–M negative
9.9 Bucket measurements
Note – Use the following measurements when creating a new bucket or making
changes to a bucket.
When you take the bucket measurements, make sure that you measure from the
center of the bucket pin points (G and H), not the bucket hitch points:
1
Bucket hitch points
Before you take the bucket measurements, position the machine as follows:
96 GCS900 Grade Control System for Excavators Installation Manual
