Welding andFitting Tasks 6
1
Bucket tilt axis
2
Angle sensor

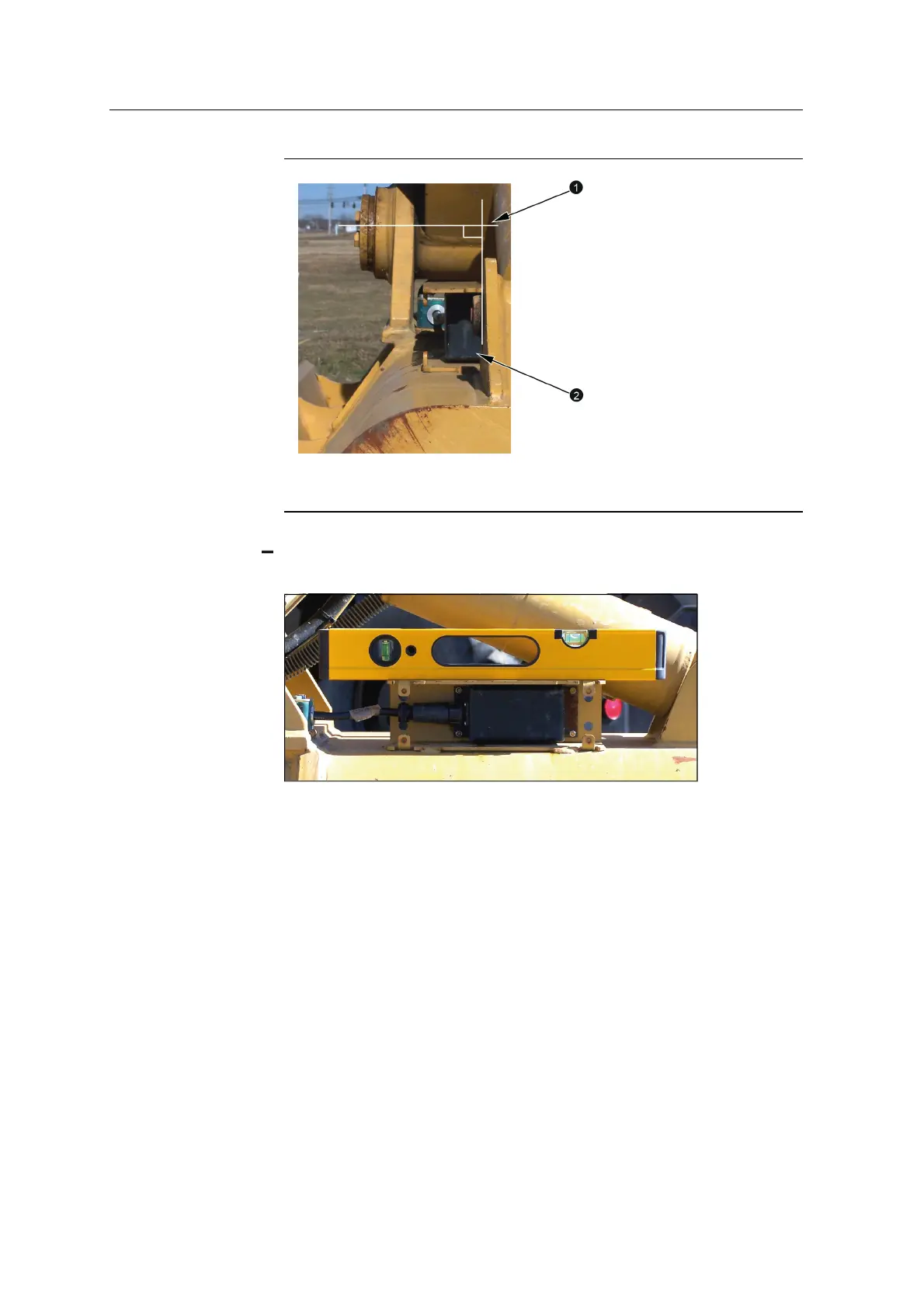

Figure 6.1 Angle sensor/laser catcher bracket placement
the horizontal plane of the sensor is parallel to the cutting edge of the
bucket; when the bucket tips are level, the tilt bucket sensor is also level:
6.4.2 Install the tilt bucket angle sensor bracket
To install the angle sensor bracket, weld or bolt it onto the machine.
6.5 Tilt bucket cable clamp bracket
The tilt bucket angle sensor is connected to the arm harness with an armored cable.
In order to reduce the likelihood of damage to the sensor due to the stiffness of the
armored cable both ends of the cable are secured with clamps.
GCS900 Grade Control System for Excavators Installation Manual 45
