Trimble GCS900 - 9.7 Boom measurements

2D system measurements 9
l bucket ram pin F to link pin H

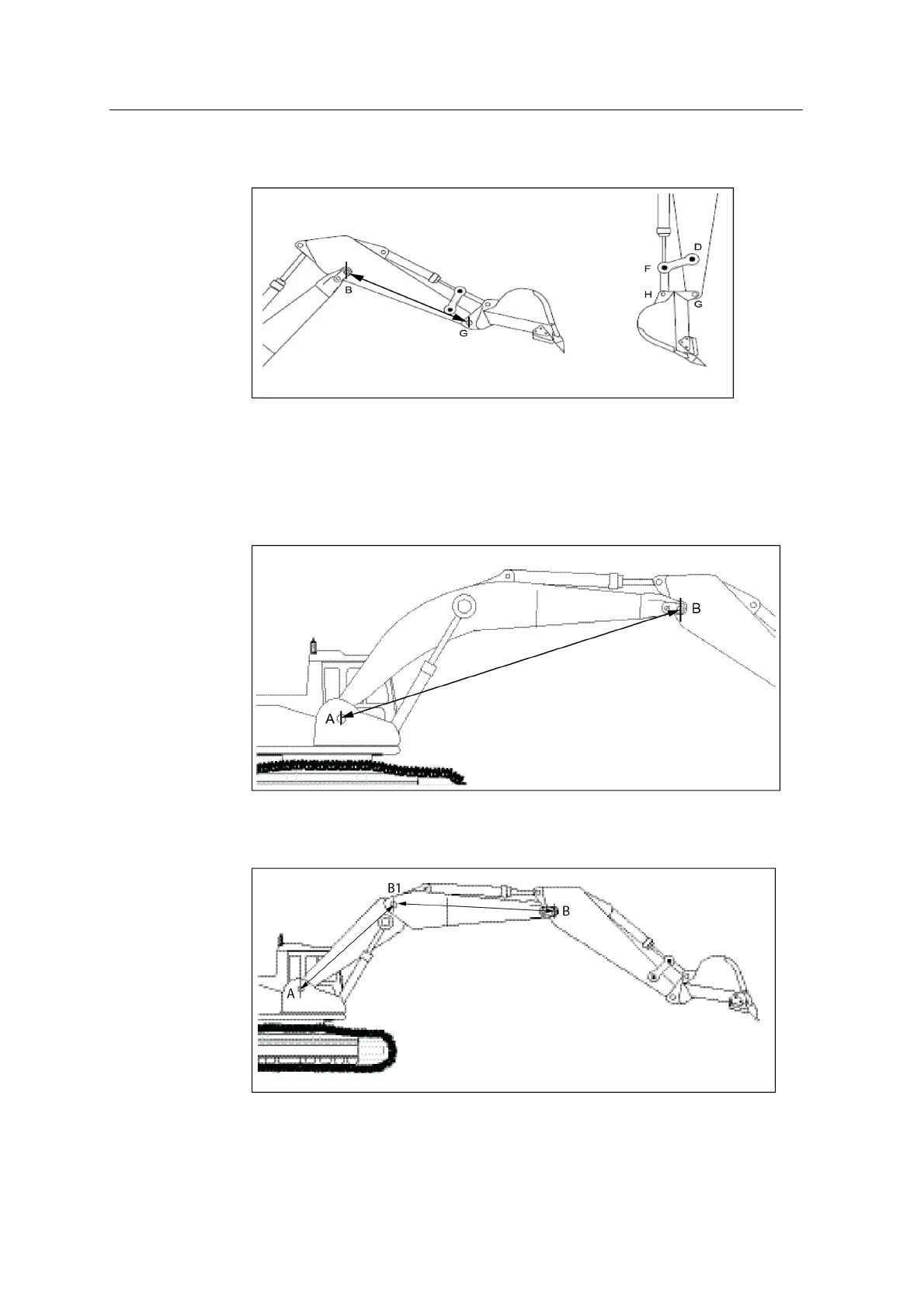

9.7 Boom measurements
Measure from the:
l boom pin A to stick pin B
l lower boom pin A to VA Boom pin B1
l VA Boom pin B1 to stick pin B
GCS900 Grade Control System for Excavators Installation Manual 93
