Installing Fixed Sensor Components 8
1. Check the installation of the mast and mounting bracket.
2. Ensure that the top of each mast is free of dirt.

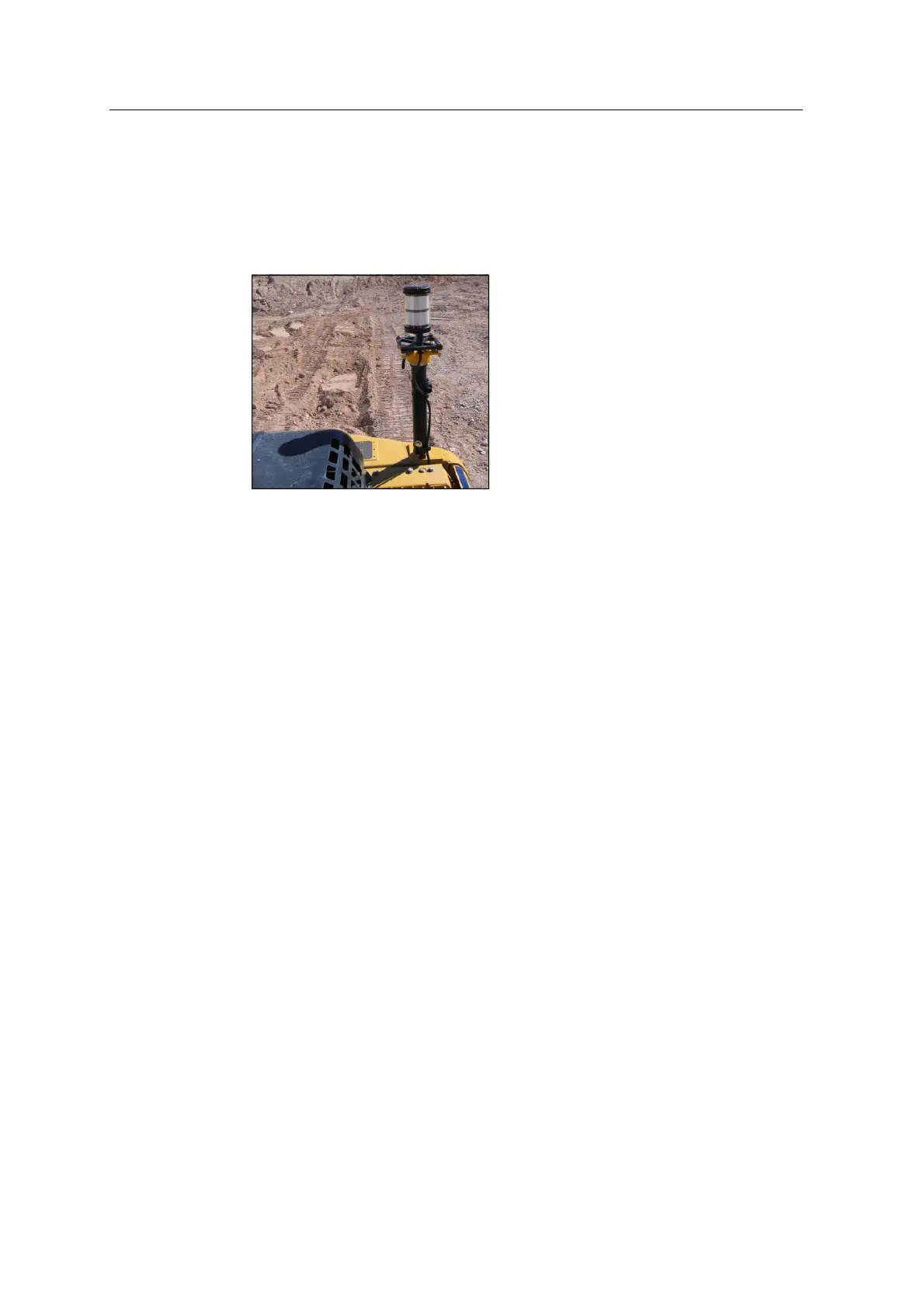

3. Slide the MT900 machine target onto the top of the mast and tighten the clamp.
4. Connect the cable and firmly tighten the connector.
GCS900 Grade Control System for Excavators Installation Manual 85
