USTER®
HVI 900
Instruction Manual
Uster Technologies, Inc.
Chapter 4
Version 4.0 (1.99) Status - Page 4-12

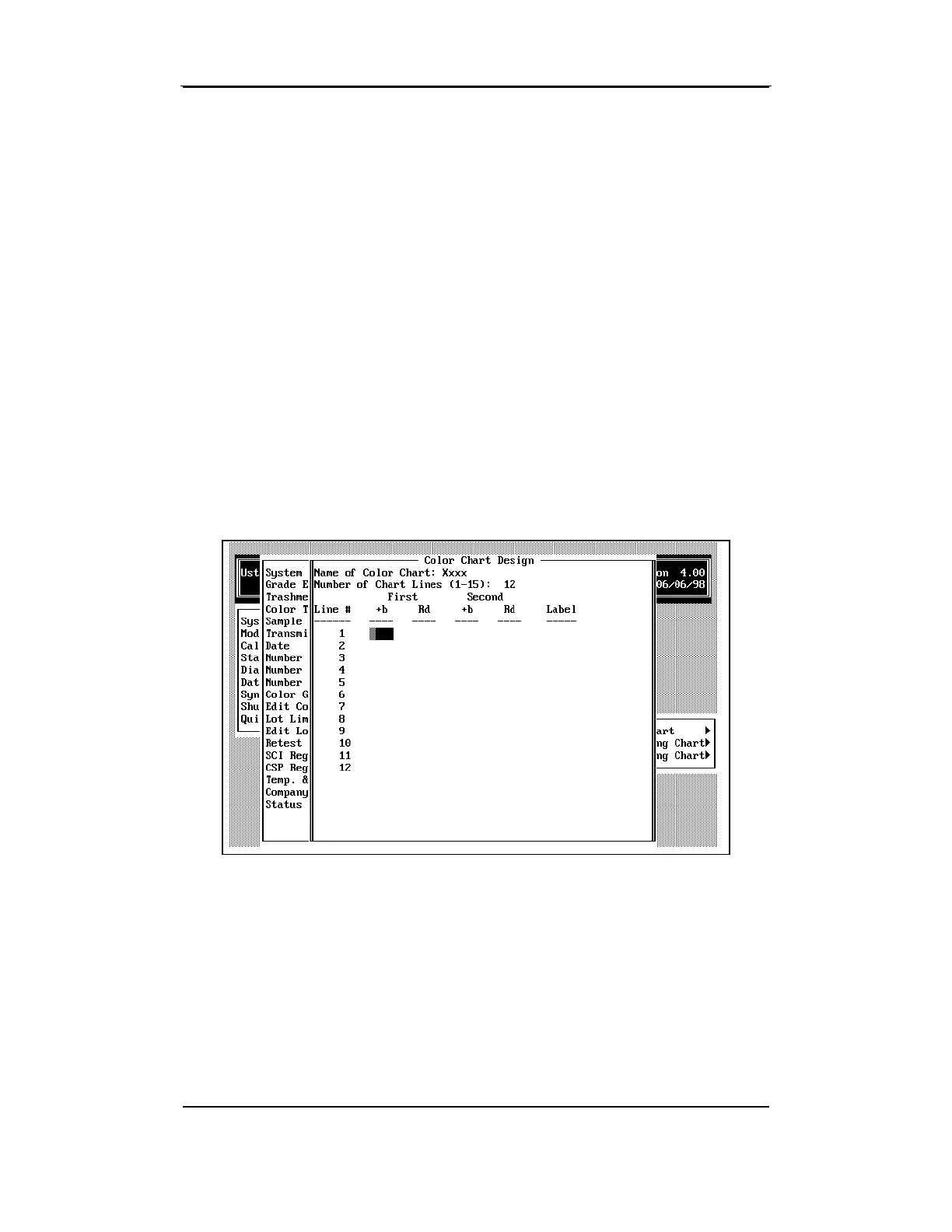

The COLOR CHART DESIGN MENU will appear. To define the chart, you
must know the number of parallel lines on the chart, the first and second
Rd and b+ column numbers for each line, and the color grades for each
area of the chart. If you do not know or don't want to continue with the
creation of the new chart, press N to answer the question at the bottom
of the screen "Do you wish to continue (y/n)?" This will close the menu
and return the cursor to the MAIN STATUS MENU. To continue with the
chart creation, press Y.
The defining questions will display one at a time on the COLOR CHART
DESIGN MENU. Answer each question, then press the ENTER key to
move to the next question field. Once all questions have been
answered, the COLOR CHART DESIGN MENU will close and the new chart
name will be displayed in the
Edit Color Chart
field on the STATUS
MENU.
