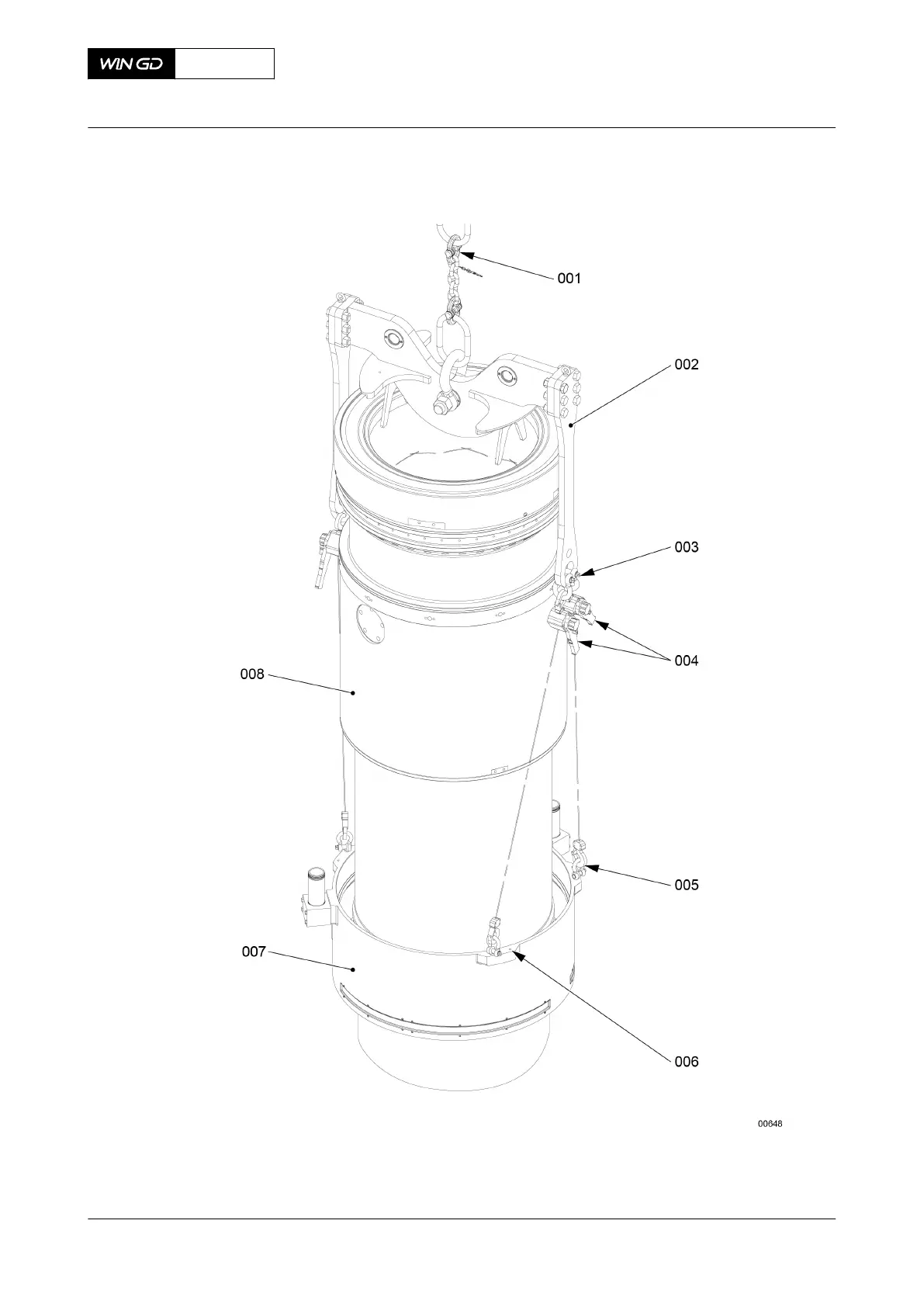

Fig 7-12 Water guide jacket (example)
19 Attach the flanges (004, Figure 7-11) to the cylinder liner with the special screws (005).
20 Attach the holder and pin (003) to the cylinder block with the bolts.
21 Clean the seating surface on the cylinder liner and cylinder block.
X62DF
AA00-2124-00AAA-720A-A
Maintenance Manual Cylinder liner - install
