5 Put down the SAC to the stowage position.
5.1 Operate the equipment until the SAC is clear of the supports (008, Figure
11-18).
5.2 Operate the equipment until the SAC is in the correct position.
5.3 Use the engine room crane and applicable equipment to move the SAC to the
stowage position.
5.4 Remove the equipment.

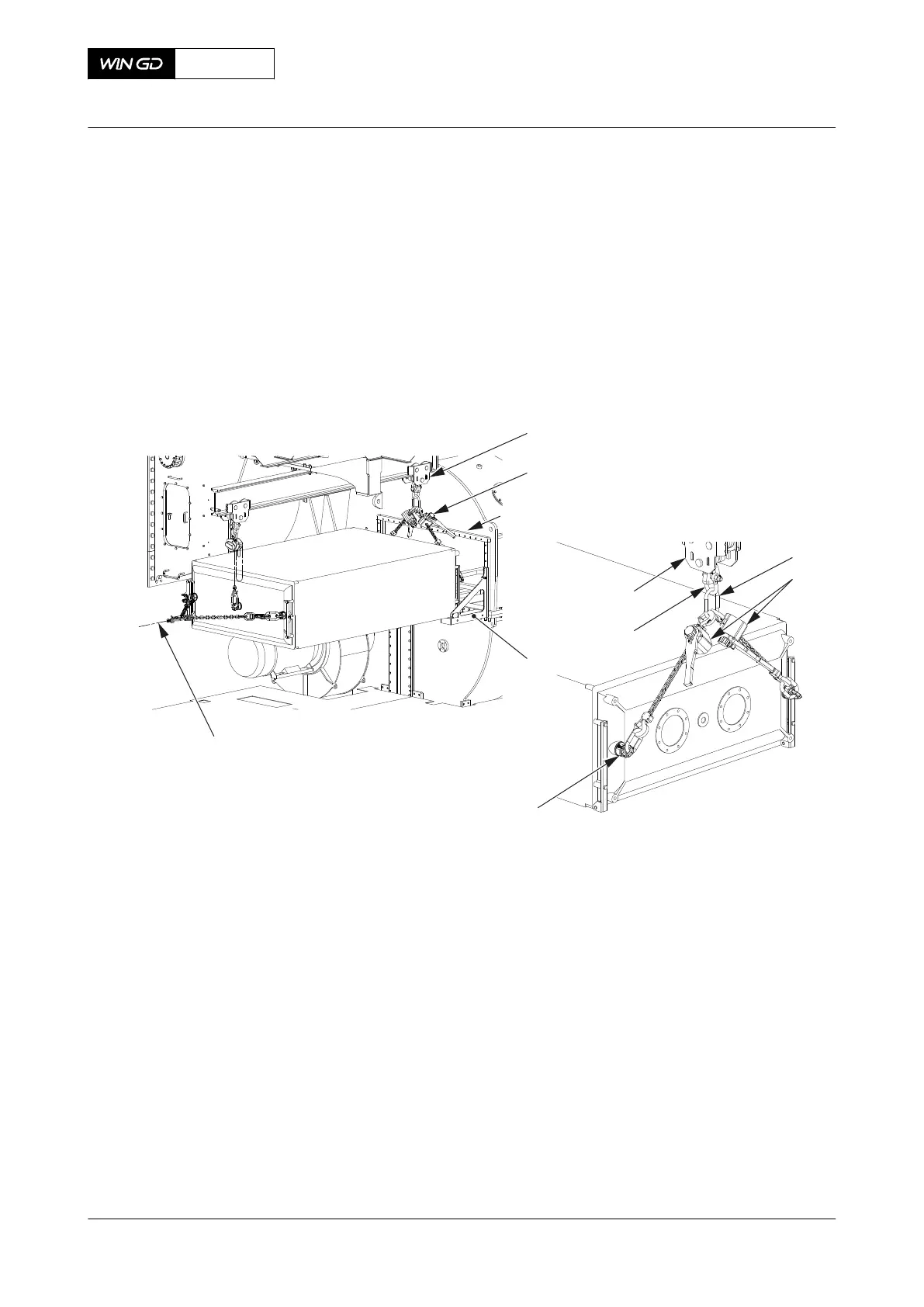

Fig 11-18 Scavenge air cooler (example) - put down
