SmartPAC 2 with WPC 2000 Integration User Manual 1128600
Keyboard, Displays, Etc. 3-9
3. To set the Off angle, you use the Up () and Down () cursor keys. With the cam
channel timing set as in Figure 3-12, press the Down () cursor key and hold it down
until the Off cursor, moving counterclockwise, reaches 270° as shown in the window
inside the crank angle diagram. The channel timing display should look like the one
shown in Figure 3-13. If you overshoot the desired Off angle, press the Up () cursor
key to move the Off cursor clockwise.

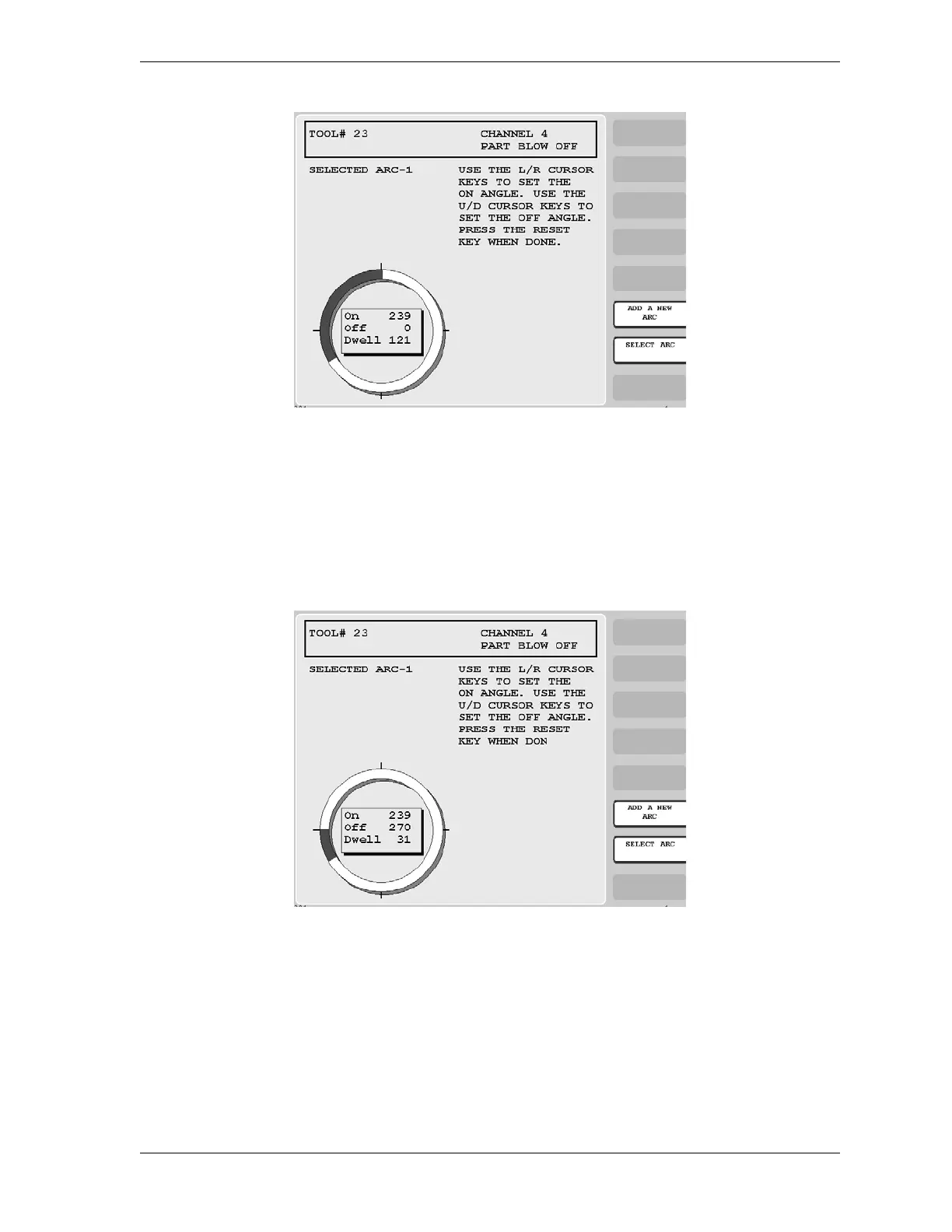

Figure 3-12. Cam Channel Timing: On=239°, Off=0°
Figure 3-13. Cam Channel Timing: On=239°, Off=270°
