If the measured value in the copy is longer than the measured value in the Test Chart: Set
a smaller value.
ADJ 11.6.1 Full/Half Rate Carriage Position Adjustment
Purpose
To adjust the position of the Full/Half Rate Carriage.
Adjustment
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
NOTE: Adjust the position of the Front and Rear Full/Half Rate Carriage separately.
1. Remove the DADF Assembly. (REP 15.1.1)
2. (Platen models) Remove the Platen Cover. (Figure 1)
1. Remove the Platen Cover.

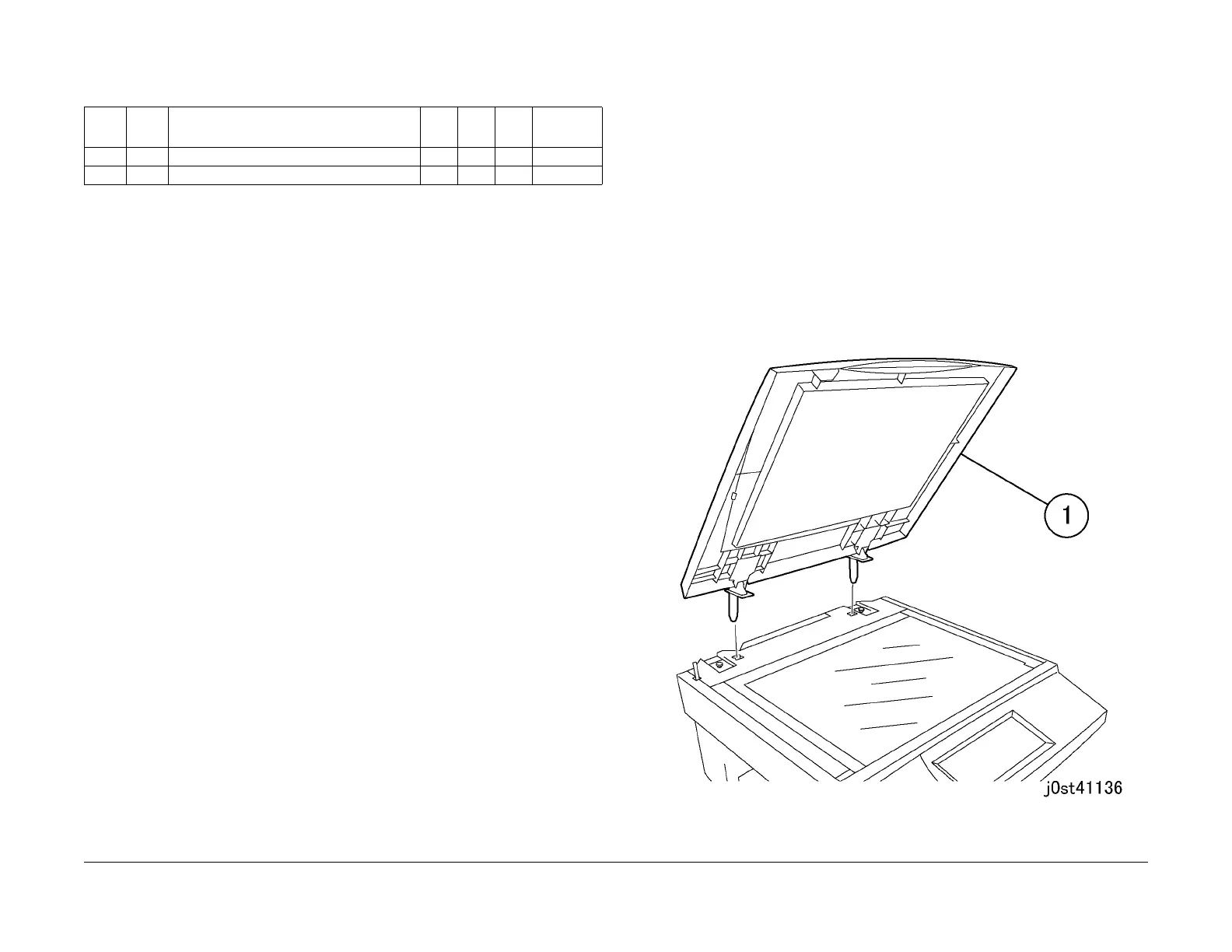

Figure 1 Removing the Platen Cover (j0st41136)
Table 2 NVM List
Chain Link Name Min.
Initia
l
Max Increment
715 051 Platen SS Reduce/Enlarge Adjustment 44 50 56 0.1%
715 702 Platen FS Reduce/Enlarge Adjustment 0 50 100 0.1%
To Next Page
