Xerox WorkCentre 5225 Service Manual

February, 2008
4-109
WorkCentre 5225, 5230
REP 15.2.4
Repairs and Adjustments
Launch Version

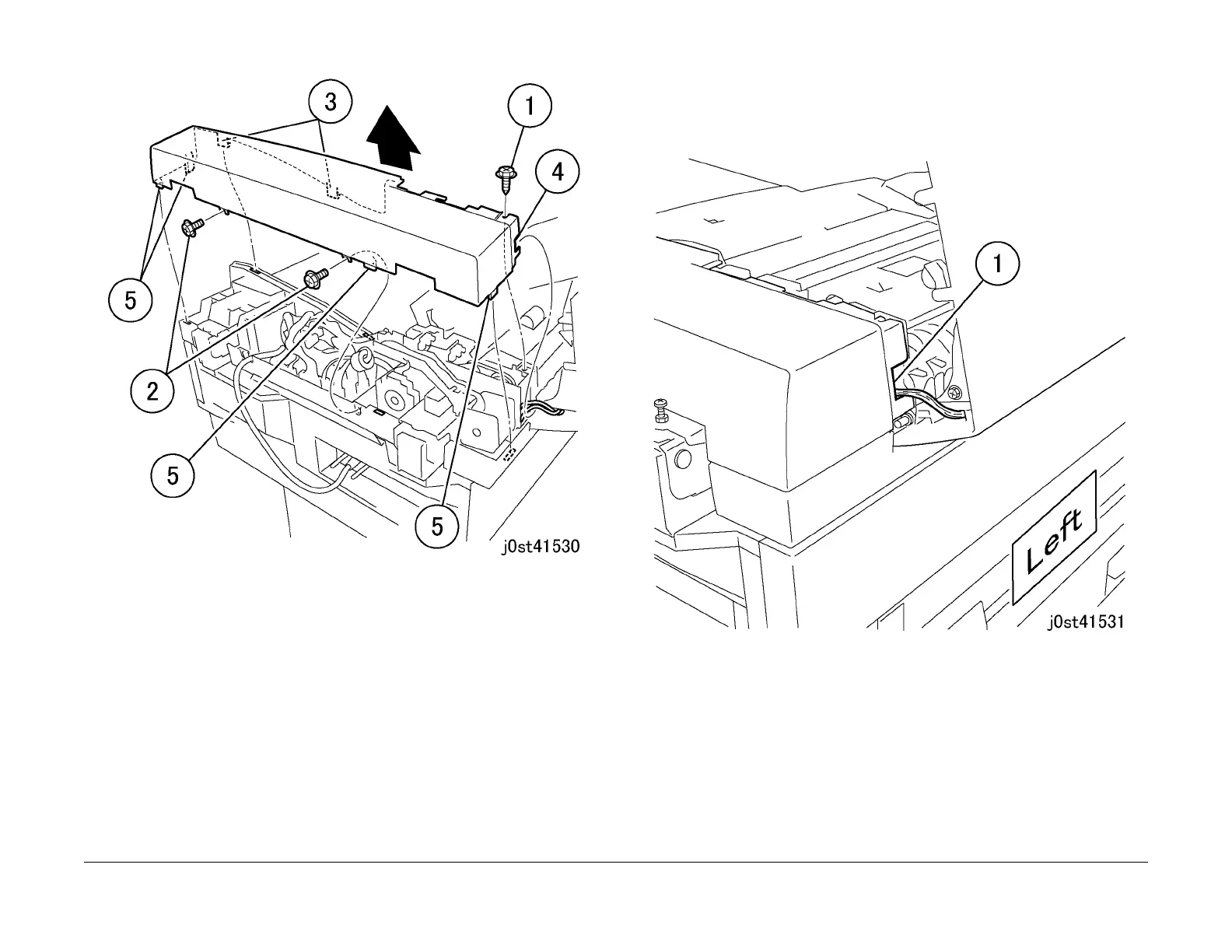

Figure 1 Removing the DADF Rear Cover
Replacement
1. Pull the harness to the notch of the DADF Rear Cover when installing the DADF Rear
Cover. (Figure 2)
1. Pull the harness to the notch of DADF Rear Cover.
Figure 2 Installing the DADF Rear Cover
