February, 2008
7-4
WorkCentre 5225, 5230
7.1.2
Launch Version
Wiring Data
7.1.2 Plug/Jack Illustrations

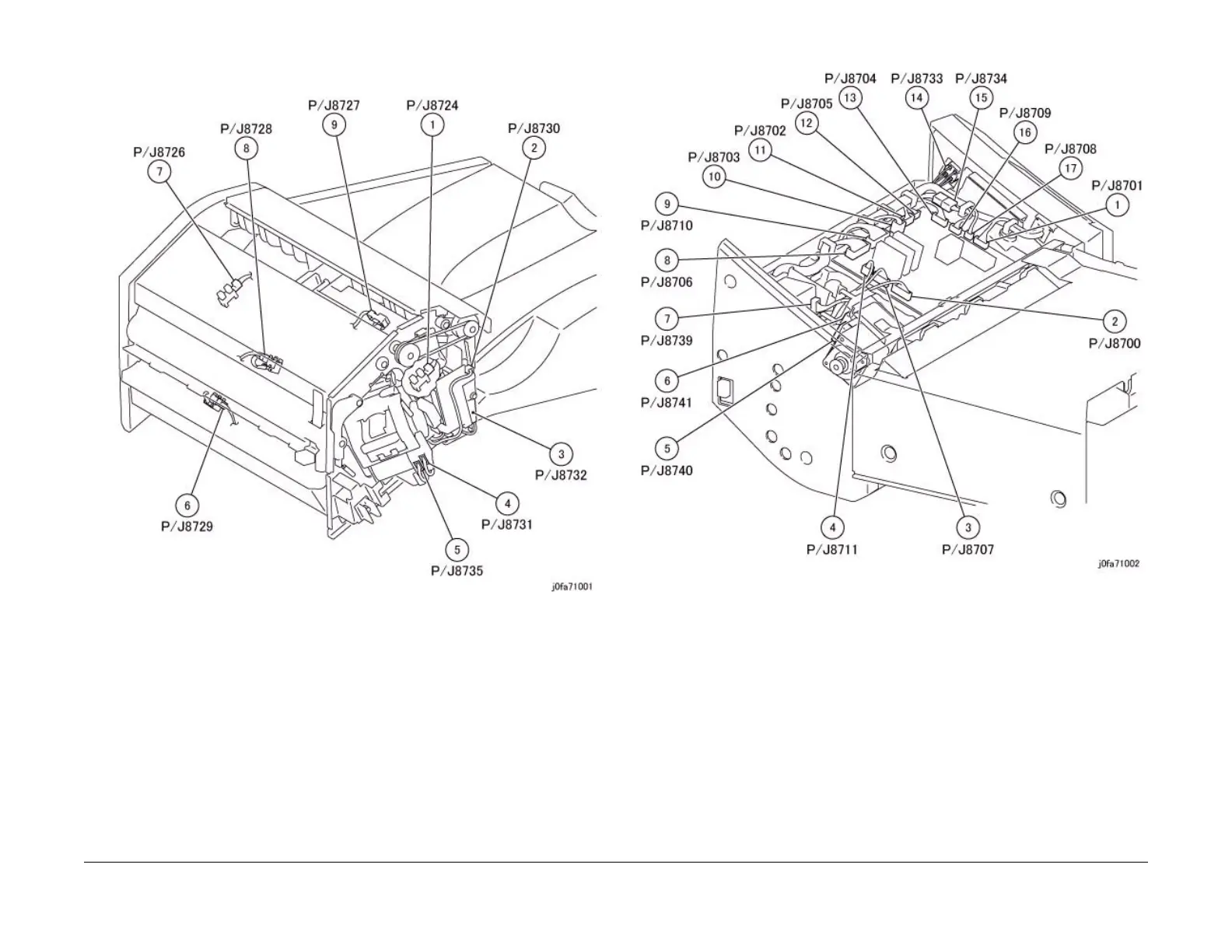

Figure 1 A-Finisher Front Location (j0fa71001)
Figure 2 A-Finisher PWB Location (j0fa71002)
