February, 2008
5-29
WorkCentre 5225, 5230
PL 8.1
Parts List
Launch Version

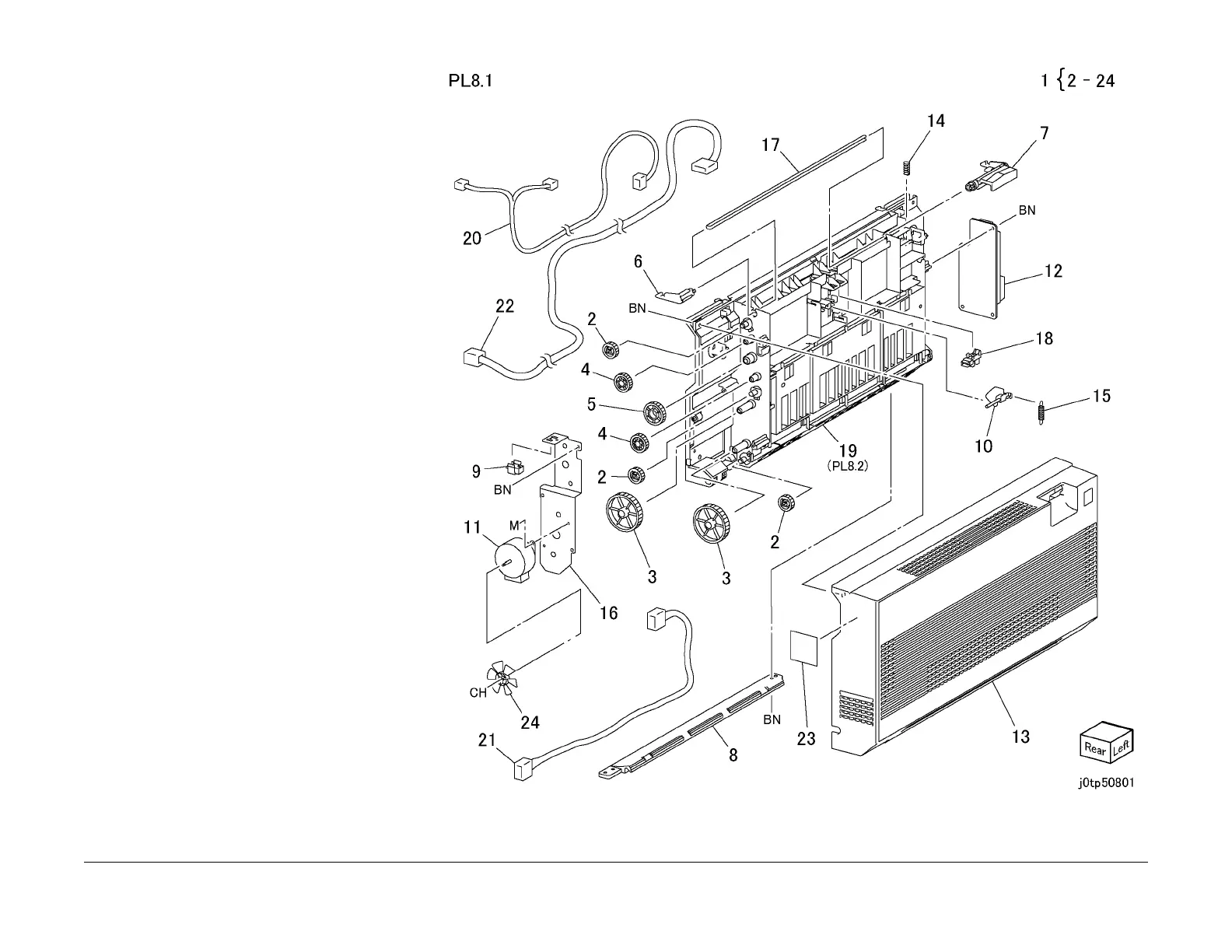

PL 8.1 Duplex Unit
Item Part Description
1 059K55760 Duplex Unit
2 Gear (28T) (P/O PL 8.1 Item 1)
3 Gear (33/37T) (P/O PL 8.1 Item 1)
4 Gear (33T) (P/O PL 8.1 Item 1)
5 Gear (42T) (P/O PL 8.1 Item 1)
6 011E14582 Latch Lever (Rear)
7 011E14590 Latch Lever (Front)
8 Lower Chute (P/O PL 8.1 Item 1)
9 110E11580 Duplex Open Chute
10 120E21261 Actuator
11 127K57210 Duplex Motor
12 160K94227 Duplex PWB
13 802E55173 Cover
14 Spring (P/O PL 8.1 Item 1)
15 Spring (P/O PL 8.1 Item 1)
16 Bracket (P/O PL 8.1 Item 1)
17 Latch Plate (P/O PL 8.1 Item 1)
18 930W00113 Duplex Sensor
19 Inner Chute Assembly (P/O PL 8.1
Item 1)
20 Wire Harness (P/O PL 8.1 Item 1)
21 Wire Harness (P/O PL 8.1 Item 1)
22 Wire Harness (P/O PL 8.1 Item 1)
23 Label (P/O PL 8.1 Item 1)
24 127E83681 Fan
