Xerox WorkCentre 5225 Service Manual

February, 2008
3-13
WorkCentre 5225, 5230
Image Quality
Launch Version
IQS1 Solid Area Density Specification
Procedure
Using Side A of the Standard Test Pattern (Figure 1), evalu-
ate the solid area density per the following table.

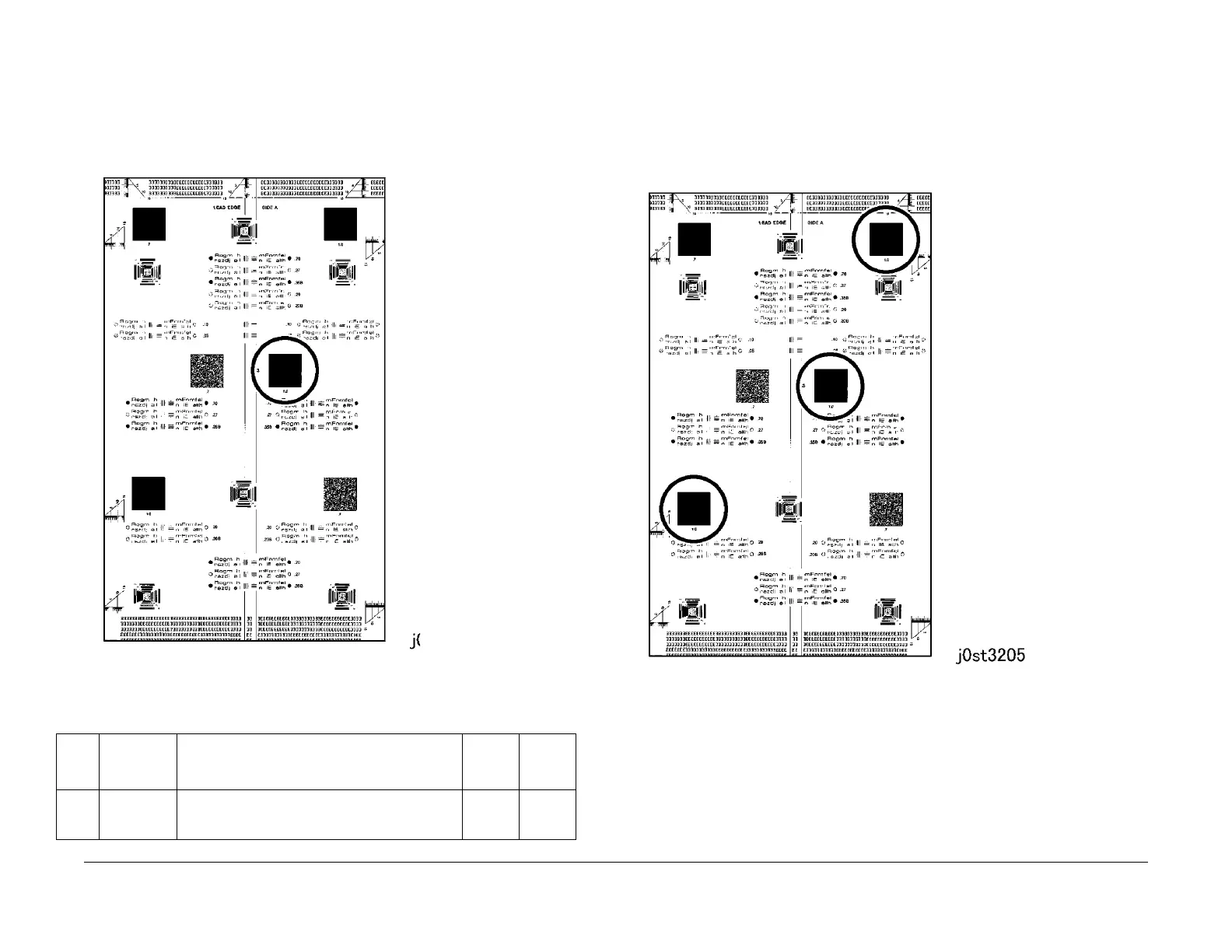

Figure 1 Standard Test Pattern (SideA)(j0st3204)
Table 1 Solid Area Density Specification
Copie
s
Copy
Quality
Mode
Specification
Input
Density
Output
Density
1 Normal The 1.0 solid area density nearest the center of the
copy should be the 1.0 solid area density block on
the Output Reference Guide.
1.0 1.0
IQS2 Uniformity Specification
Procedure
Make a copy of Side A of the Standard Test Pattern.
The density of all the 1.0 blocks are same (Figure 1).
Figure 1 Standard Test Pattern 1.0 Blocks(j0st3205)
