Xerox WorkCentre 5225

February, 2008
5-30
WorkCentre 5225, 5230
PL 8.2
Launch Version
Parts List

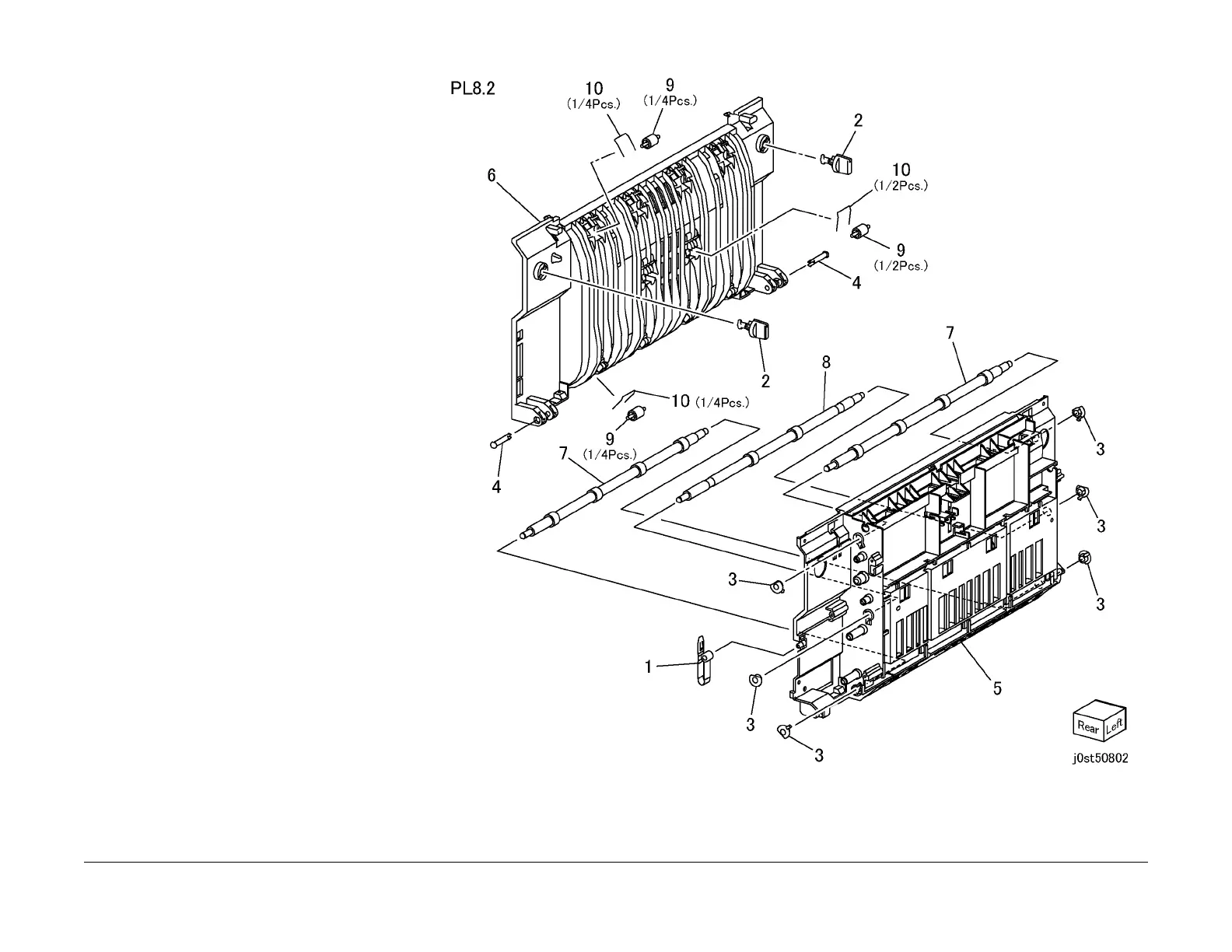

PL 8.2 Inner Chute Assembly
Item Part Description
1 – Stopper (P/O PL 8.1 Item 19)
2 – Lock (P/O PL 8.1 Item 19)
3 – Bearing (P/O PL 8.1 Item 19)
4 – Pin (P/O PL 8.1 Item 19)
5 – Outer Chute (P/O PL 8.1 Item 19)
6 – Inner Chute (P/O PL 8.1 Item 19)
7 – Duplex Roller (P/O PL 8.1 Item 19)
8 – Duplex Roller (P/O PL 8.1 Item 19)
9 604K20460 Roller (4/Kit)
10 604K20470 Spring (4/Kit)
