Xerox WorkCentre 5225

February, 2008
5-15
WorkCentre 5225, 5230
PL 2.8
Parts List
Launch Version

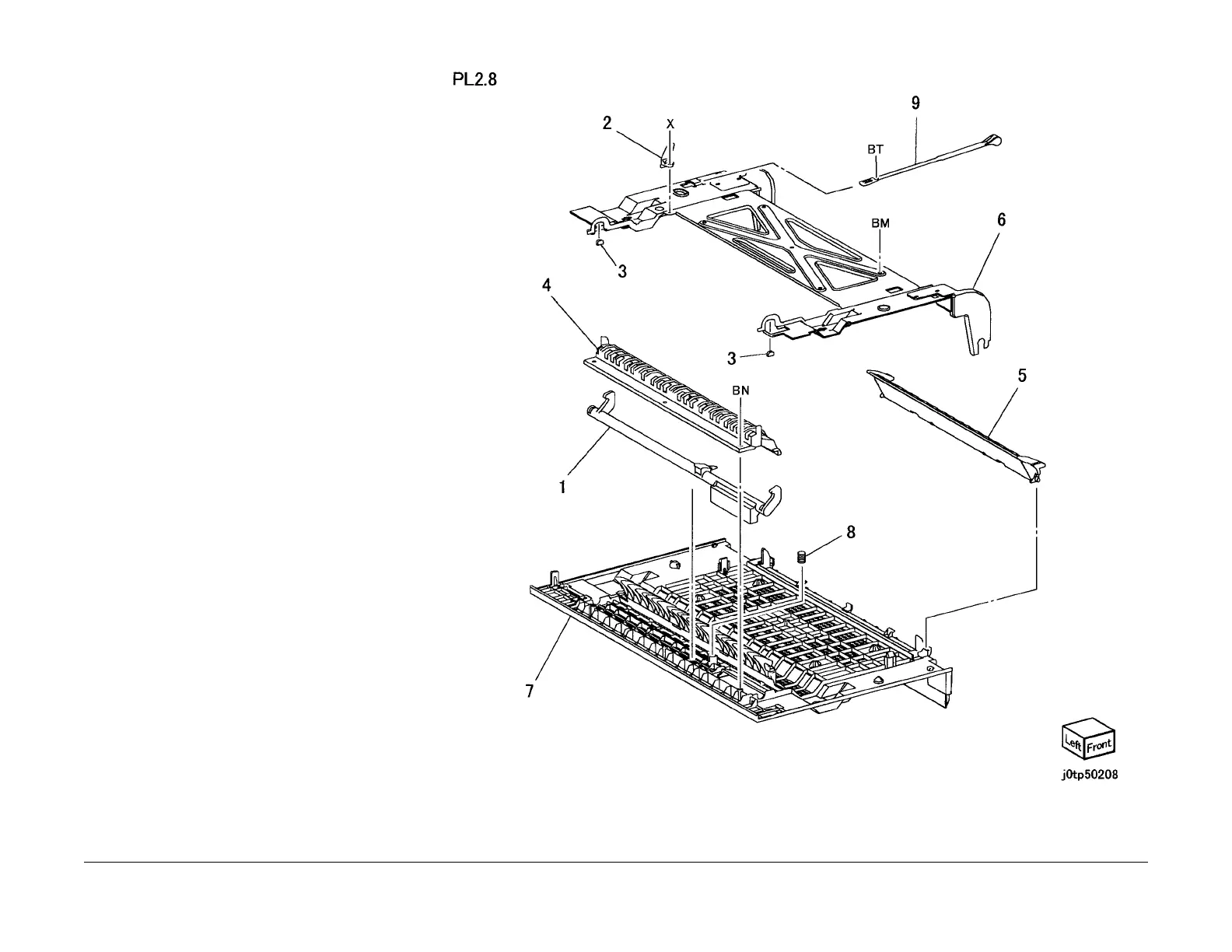

PL 2.8 L/H Upper Cover Assembly
Item Part Description
1 003E59833 Handle
2 – Xerographics/Developer Cartridge
Shutter (P/O PL 2.6 Item 11)
3 – Handle Guide (P/O PL 2.6 Item 11)
4 054E23950 L/H Cover Chute
5 054K30770 Chute Assembly
6 – Frame (P/O PL 2.6 Item 11)
7 802K86921 L/H Upper Cover (P/O PL 2.6 Item
11)
8 – Spring (P/O PL 2.6 Item 11)
9 849E13981 Support
