February, 2008
4-165
WorkCentre 5225, 5230
REP 16.3.3, REP 16.3.4
Repairs and Adjustments
Launch Version
b. Remove the Screws (2). (Figure 2)
c. Remove the Booklet Front Cover.

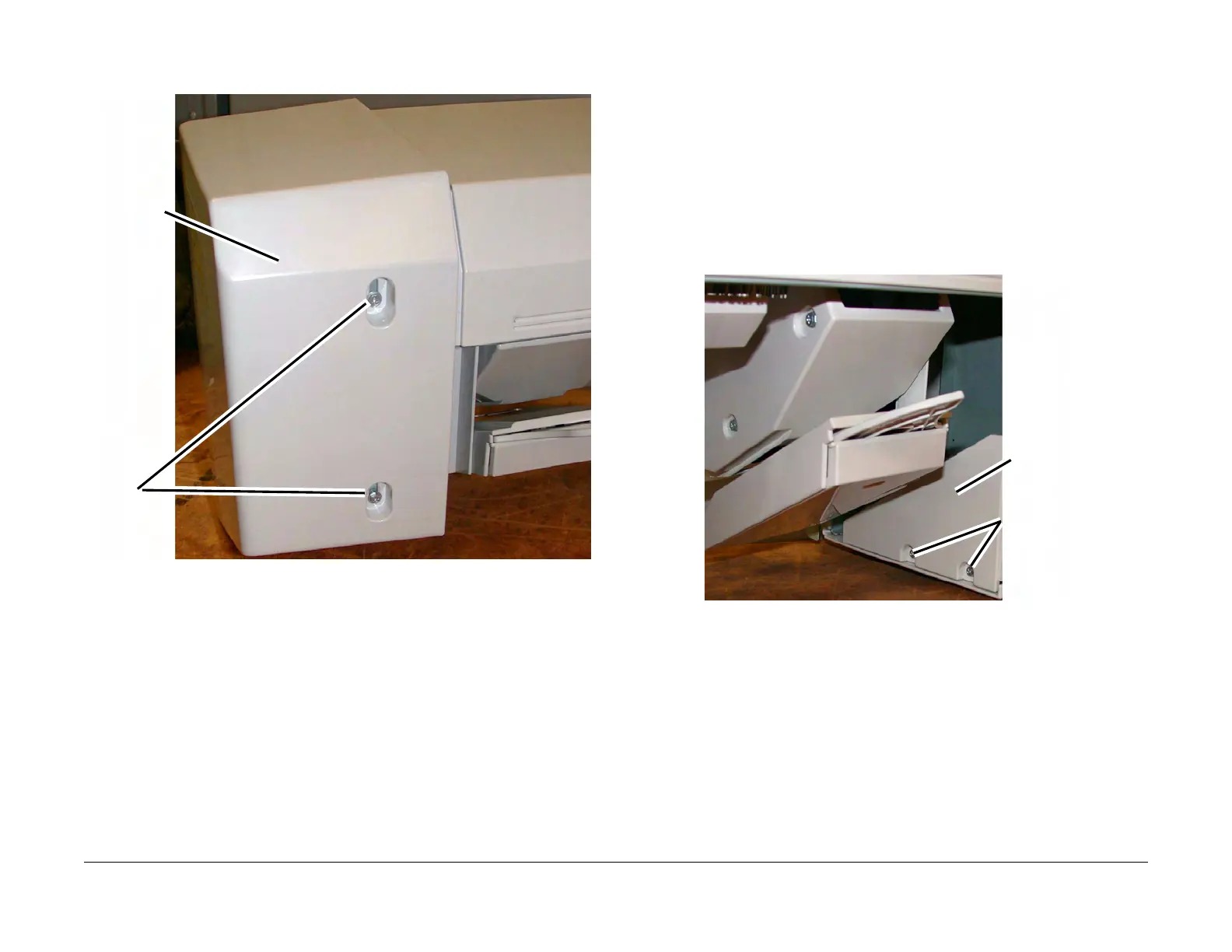

Figure 2 Removing the Booklet Front Cover (j0st41669)
Replacement
1. Reverse the removal procedure for replacement.
REP 16.3.4 Booklet Rear Cover
Parts List on PL 23.17
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the Booklet Maker Assembly from the Finisher. (REP 16.3.2)
2. Remove the Booklet PWB Cover. (REP 16.3.6)
3. Remove the Booklet Rear Cover.
a. Remove the Tapping Screws (2). (Figure 1)
b. Remove the Booklet Side Cover.
Figure 1 Removing the Booklet Side Cover (j0st41676)
Screws
Booklet
Front Cover
Tapping
Screws
Booklet
Side Cover
To Next Page
