Xerox WorkCentre 5225 Service Manual

February, 2008
4-114
WorkCentre 5225, 5230
REP 15.4.1
Launch Version
Repairs and Adjustments

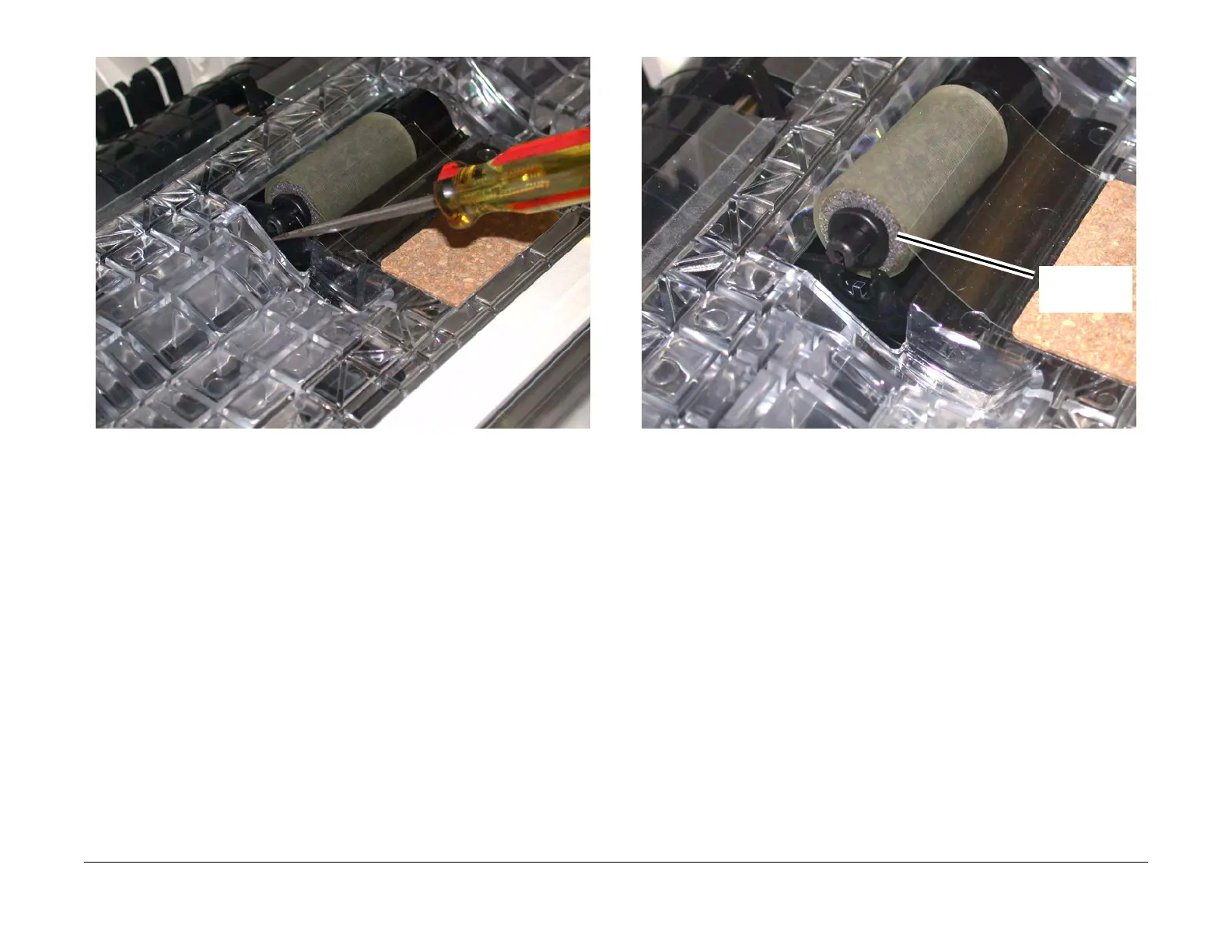

Figure 2 Lift up the Retard Roll Shaft
3. Remove the Retard Roll. (Figure 3)
Figure 3 Removing the Retard Roll
Replacement
1. Install the Shaft into the Torque Limiter and then into the Retard Roll. (Figure 4)
1. The shaft.
2. The Retard Roll.
3. The Torque Limiter.
Raise the Retard
Roll and remove
