Xerox WorkCentre 5225 Service Manual

February, 2008
5-95
WorkCentre 5225, 5230
PL 23.8
Parts List
Launch Version

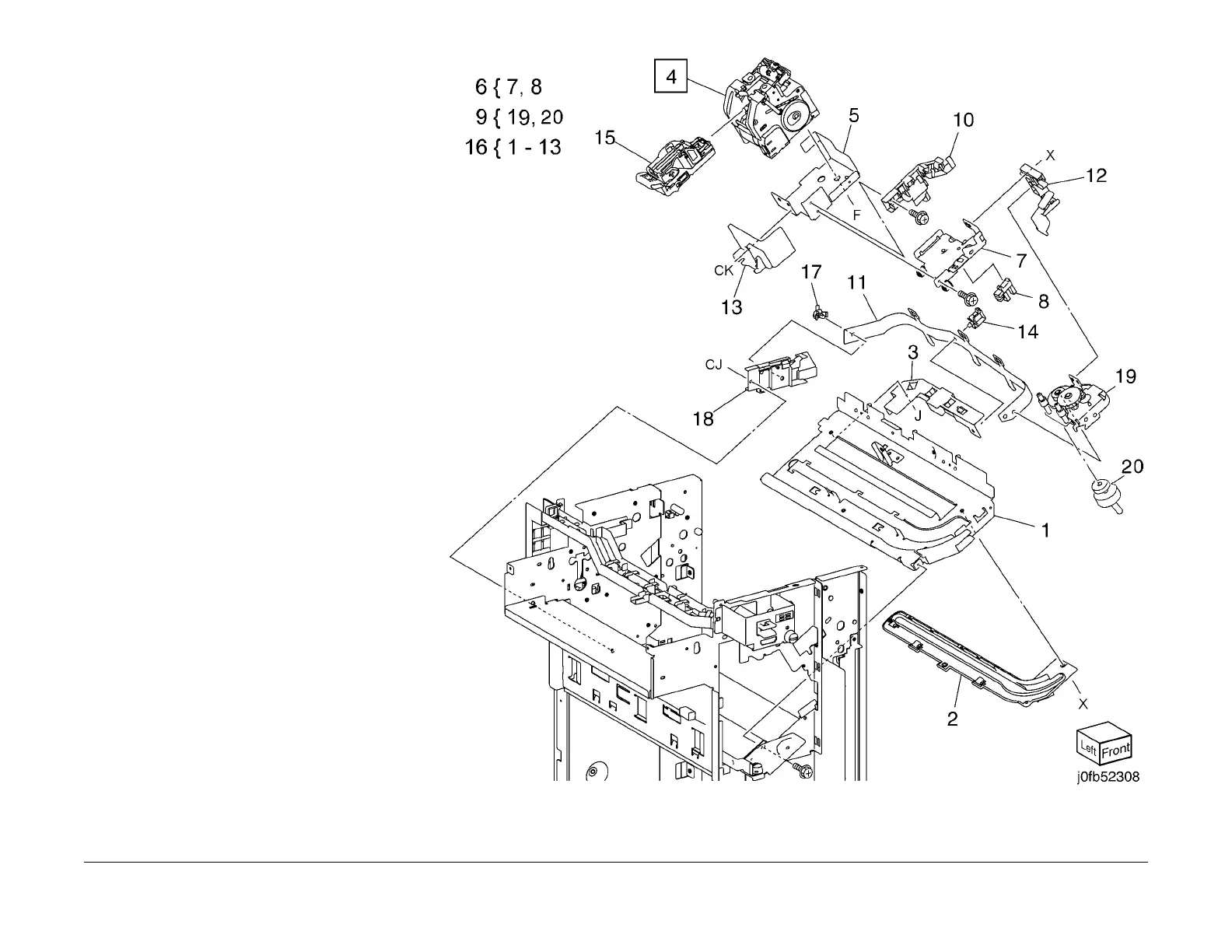

PL 23.8 Finisher Stapler
Item Part Description
1 – Base Frame (P/O PL 23.8 Item 16)
2 – Rail (P/O PL 23.8 Item 16)
3 – Harness Guide
4 029K92350 Stapler Assembly (REP 16.2.12)
5 – Holder (Not Spared)
6 – Stapler Move Position Sensor
Assembly (Not Spared)
7 – Bracket (P/O PL 23.8 Item 6)
8 130E94940 Stapler Move Position Sensor
9 – Stapler Move Motor Assembly (Not
Spared)
10 – Harness Guide (P/O PL 23.8 Item
16)
11 – Harness Support Guide (P/O PL
23.8 Item 16)
12 – Harness Guide (P/O PL 23.8 Item
16)
13 – Stapler Cover (Not Spared)
14 – Clamp (Not Spared)
15 – (SCC) Stapler Cartridge (Not
Spared)
16 – Stapler Unit (Not Spared)
17 – Cable Band (Not Spared)
18 – Harness Guide (Not Spared)
19 – Stapler Motor Assembly (P/O PL
23.8 Item 9) (REP 16.2.11)
20 127K57622 Motor Assembly
