February, 2008
4-202
WorkCentre 5225, 5230
REP 22.8.2, REP 22.8.3
Launch Version
Repairs and Adjustments
12. Move the Bearing. (Figure 8)
(1)Remove E-Clip.
(2)Move Bearing in the direction of the arrow.

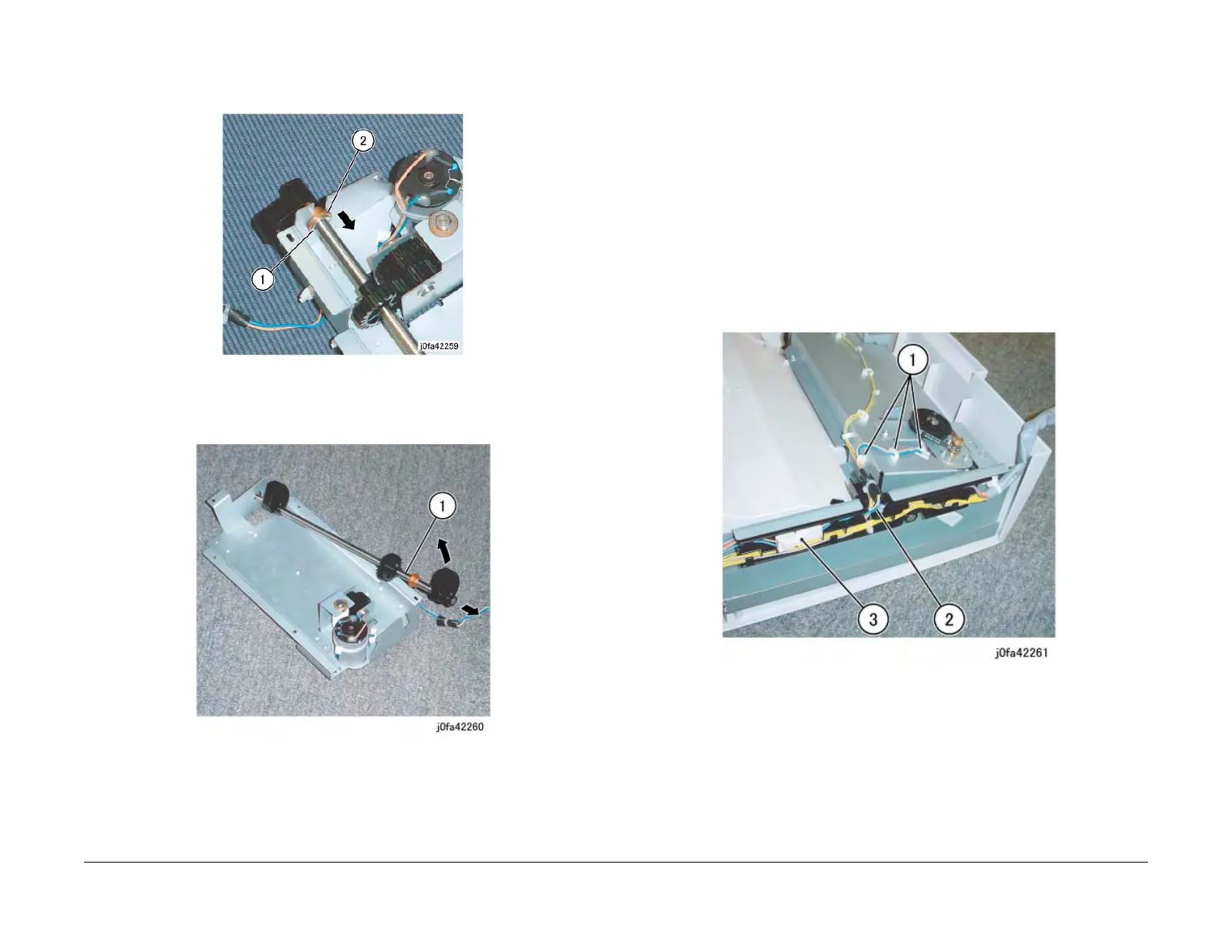

Figure 8 Moving the Bearing (j0fa42259)
13. Remove the Stacker Shaft Assembly. (Figure 9)
(1)Remove Stacker Shaft Assembly in the direction of the arrows (lift up then out).
Figure 9 Removing the Stacker Shaft Assembly (j0fa42260)
Replacement
1. Reverse the removal procedure for replacement.
REP 22.8.3 Stacker Motor
Parts List on PL 22.8
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the A-Finisher from the machine. (REP 22.1)
2. Remove the Rear Cover. (PL 22.1)
3. Turn over the A-Finisher.
4. Remove the Tray Cover. (PL 22.2)
5. Disconnect the Connector. (Figure 1)
(1)Release Clamps (3) and remove the wires.
(2)Release wires from Hook.
(3)Disconnect Connector.
Figure 1 Disconnecting the Connector (j0fa42261)
To Next Page
