February, 2008
4-191
WorkCentre 5225, 5230
REP 22.5.4, REP 22.5.5
Repairs and Adjustments
Launch Version
8. Remove the Support Bearing from the Main Paddle Shaft Assembly. (Figure 6)
(1)Remove E-Clip.
(2)Remove Support Bearing.

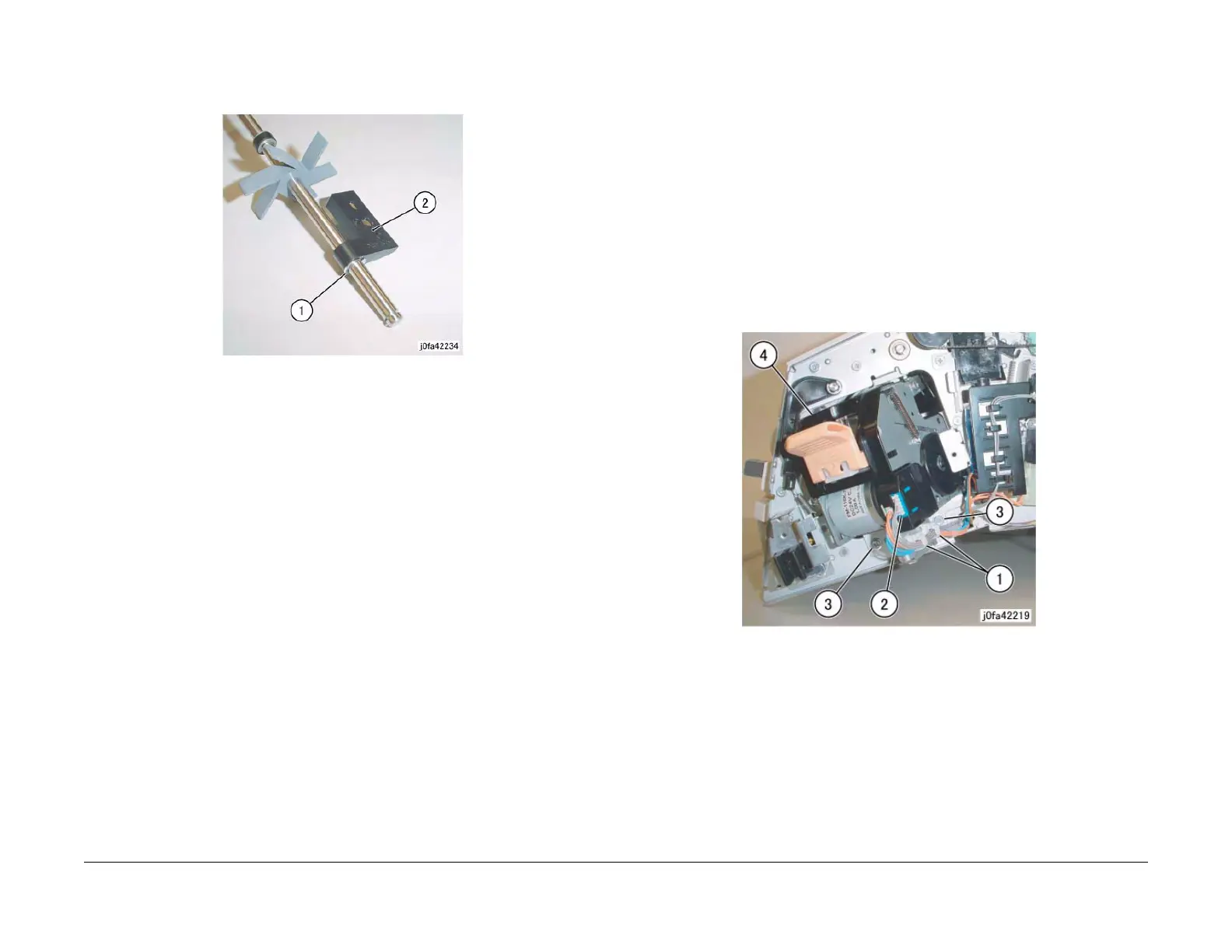

Figure 6 Removing the Support Bearing (j0fa42234)
Replacement
1. Reverse the removal procedure for replacement.
REP 22.5.5 Lower Chute Assembly
Parts List on PL 22.5
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the A-Finisher from the machine. (REP 22.1)
2. Remove the Compile Assembly. (REP 22.9.1)
3. Turn over the A-Finisher (Transport).
4. Remove the Stapler Assembly. (Figure 1)
(1)Release Clamps (2) and remove the wires.
(2)Disconnect Connectors (2).
(3)Remove Screws (2).
(4)Remove Stapler Assembly.
Figure 1 Removing the Stapler Assembly (j0fa42219)
5. Turn over the A-Finisher.
