Xerox WorkCentre 5225 - Removing the Feed;Nudger;Retard Roll (J0 St40206); Sliding the Guide to the Front (J0 St40205)

February, 2008
4-11
WorkCentre 5225, 5230
REP 2.3.1
Repairs and Adjustments
Launch Version

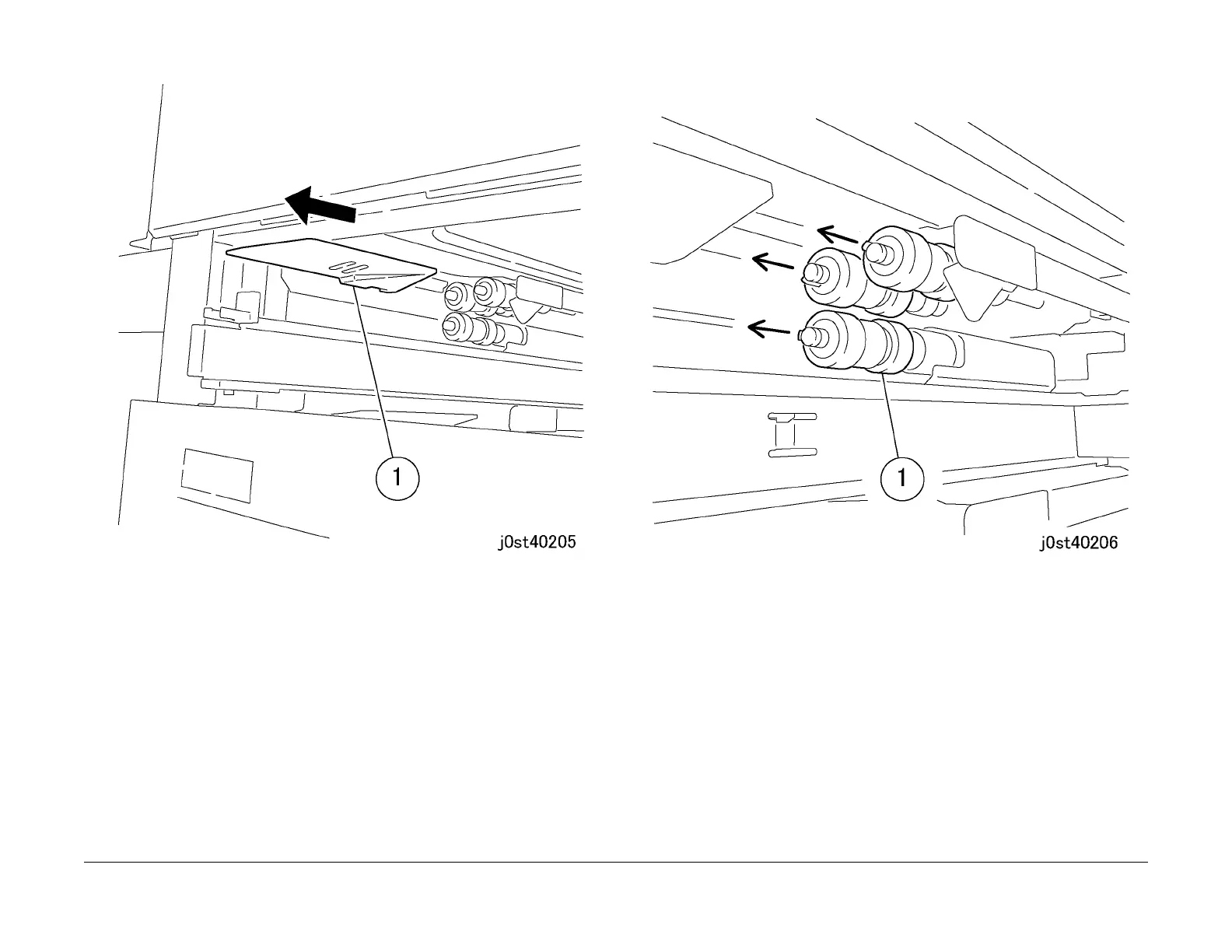

Figure 1 Sliding the guide to the front (j0st40205)
3. Remove the Feed/Nudger/Retard Roll. (Figure 2)
1. Remove the Feed/Nudger/Retard Roll.
Figure 2 Removing the Feed/Nudger/Retard Roll (j0st40206)
Replacement
1. To install, carry out the removal steps in reverse order.
