Xerox WorkCentre 5225 Service Manual

February, 2008
4-41
WorkCentre 5225, 5230
REP 7.3.4
Repairs and Adjustments
Launch Version
Figure 3 Preparing to remove the Rear Tray Cable
7. When both sections of the cable are slack, disengage the Lift Shaft from the frame and
slide the Tray Cable Pulley to the front of the Lift Shaft to release the Rear Lift Cable ends
that are trapped in the pocket underneath the Tray Cable Pulley. (Figure 4)
Figure 4 Releasing the Cable ends from the Lift Shaft
8. Removing the Rear Tray Cable. (Figure 5, Figure 6)
a. Remove (1) E-Ring, (1) Wire Guide, and (1) Pulley.
b. Disengage the Tray Cable from the Bottom Plate in 2 places and remove the Tray
Cable.

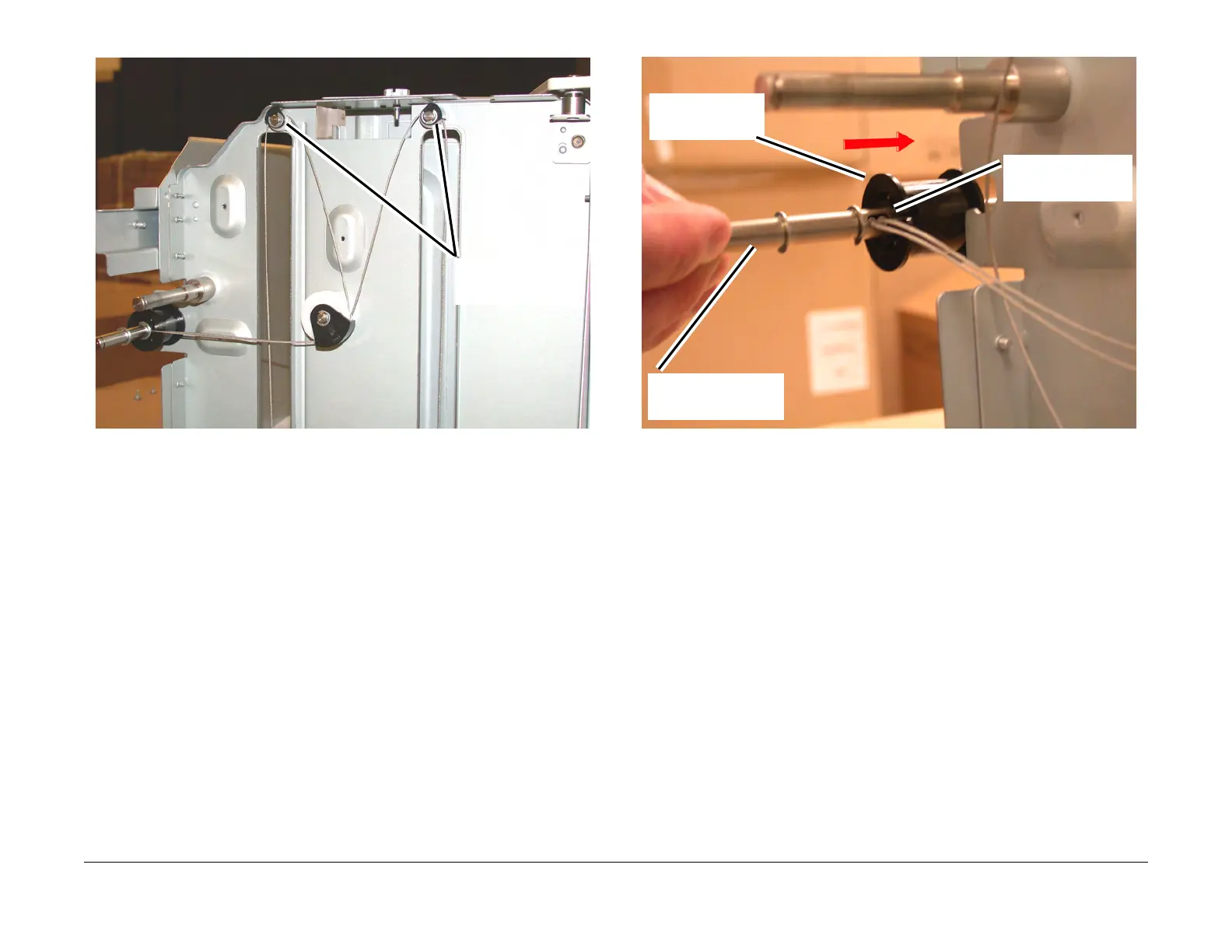

Remove the E-Rings
(2), Wire Guides (2),
and Pulleys (2)
3
Remove the cable
ends from the shaft
1
Disengage the Lift Shaft
from the frame
2
Slide the Tray Cable
Pulley to the front
