Xerox WorkCentre 5225

February, 2008
5-63
WorkCentre 5225, 5230
PL 15.4
Parts List
Launch Version

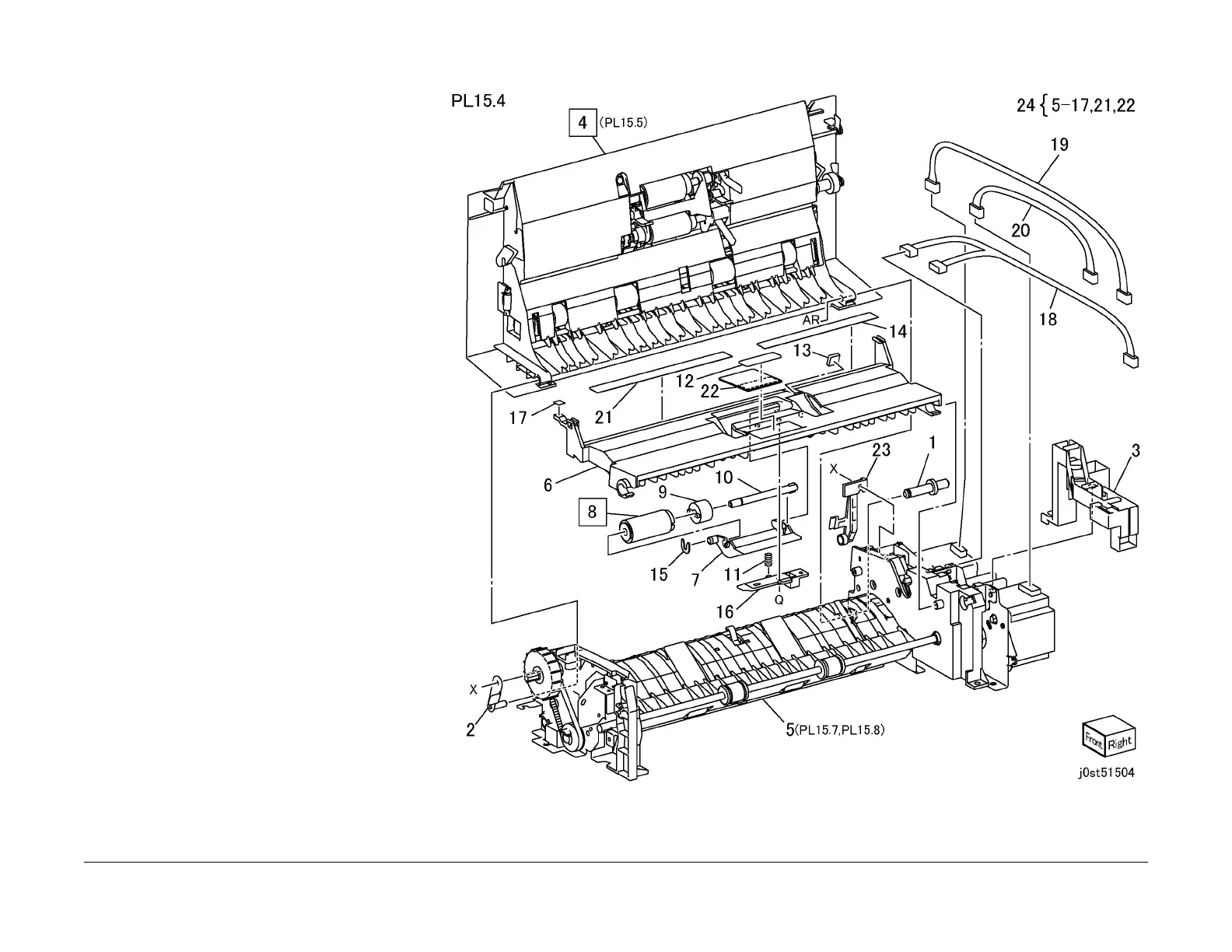

PL 15.4 DADF Feeder Component
Item Part Description
1 – Stud (P/O PL 15.2 Item 2)
2 – Stud Bracket (P/O PL 15.2 Item 2)
3 – Harness Guide (P/O PL 15.2 Item
2)
4 059K45218 Top Cover Assembly
5 – DADF Feeder (P/O PL 15.4 Item
24)
6 – Retard Roll Chute (P/O PL 15.4
Item 24)
7 – Retard Roll Holder (P/O PL 15.4
Item 24)
8 – Retard Roll (P/O PL 15.4 Item 24)
(REP 15.4.1)
9 019K98770 Torque Limiter
10 – Shaft (P/O PL 15.4 Item 24)
11 – Spring (P/O PL 15.4 Item 24)
12 – Pad (P/O PL 15.4 Item 24)
13 019K99070 Pad (Actuator)
14 – Seal (Rear) (P/O PL 15.4 Item 24)
15 – C-Clip (P/O PL 15.4 Item 24)
16 – Guide (P/O PL 15.4 Item 24)
17 – Label (P/O PL 15.4 Item 24)
18 962K19731 Wire Harness (Sensor)
19 962K19740 Wire Harness (Registration Motor)
20 962K19750 Wire Harness (Feed Motor)
21 – Seal (Front) (P/O PL 15.4 Item 24)
22 – Seal (Retard) (P/O PL 15.4 Item
24)
23 – Guide (P/O PL 15.4 Item 24)
24 059K45234 DADF Feeder (With out Motor Unit)
