Xerox WorkCentre 5225 Service Manual

February, 2008
4-66
WorkCentre 5225, 5230
REP 11.4.1
Launch Version
Repairs and Adjustments
2.Remove the Lens Cover.

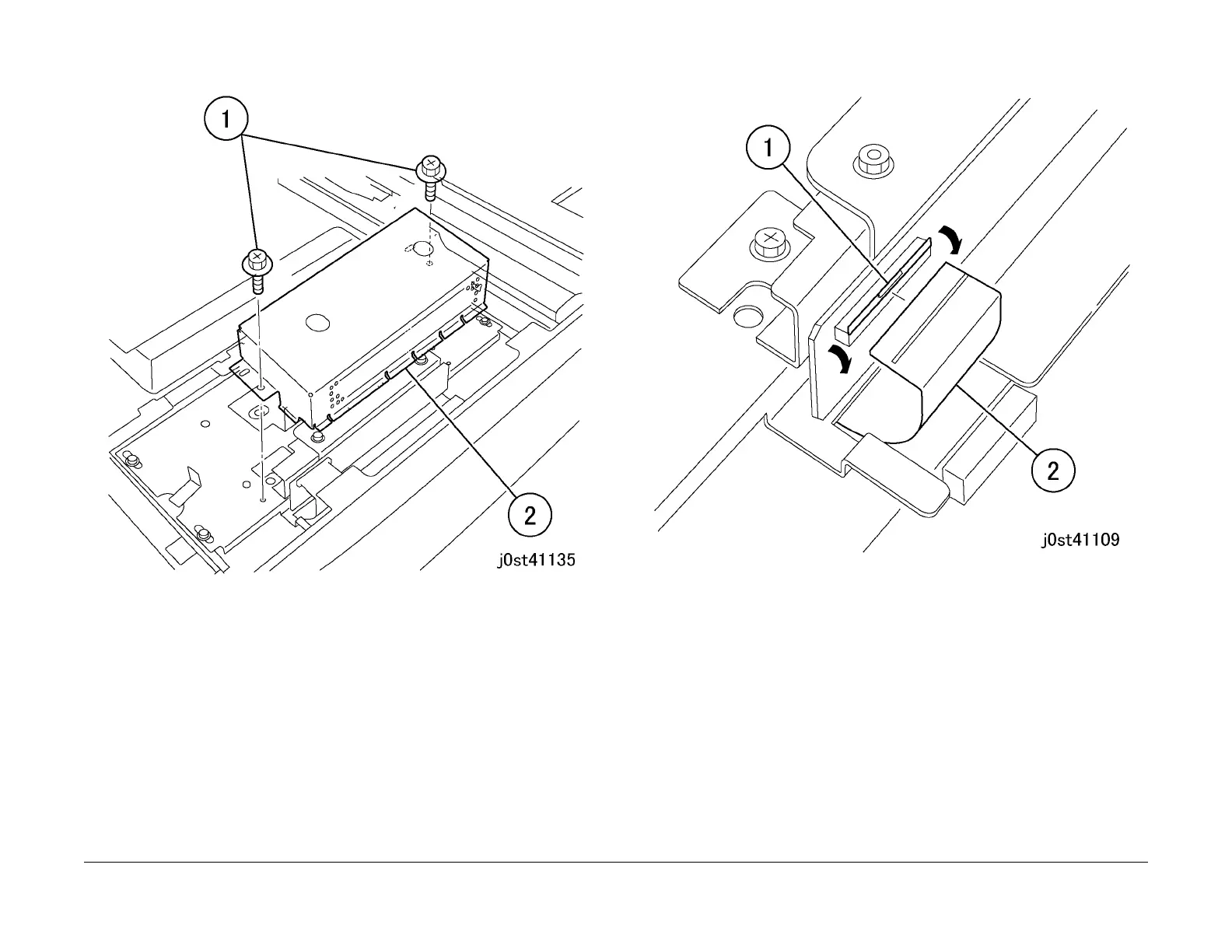

Figure 2 Removing the Lens Cover (j0st41135)
4. Disconnect the CCD Flat Cable. (Figure 3)
1.Take off the hook.
2.Disconnect the CCD Flat Cable.
Figure 3 Disconnecting the CCD Flat Cable (j0st41109)
5. Replace the Lens Kit Assembly. (Figure 4)
1. Remove the screws (x4).
2. Replace the Lens Kit Assembly.

Xerox WorkCentre 5225 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Internal memory	No MB
Type	Digital copier
