February, 2008
4-129
WorkCentre 5225, 5230
REP 15.8.1
Repairs and Adjustments
Launch Version
Replacement

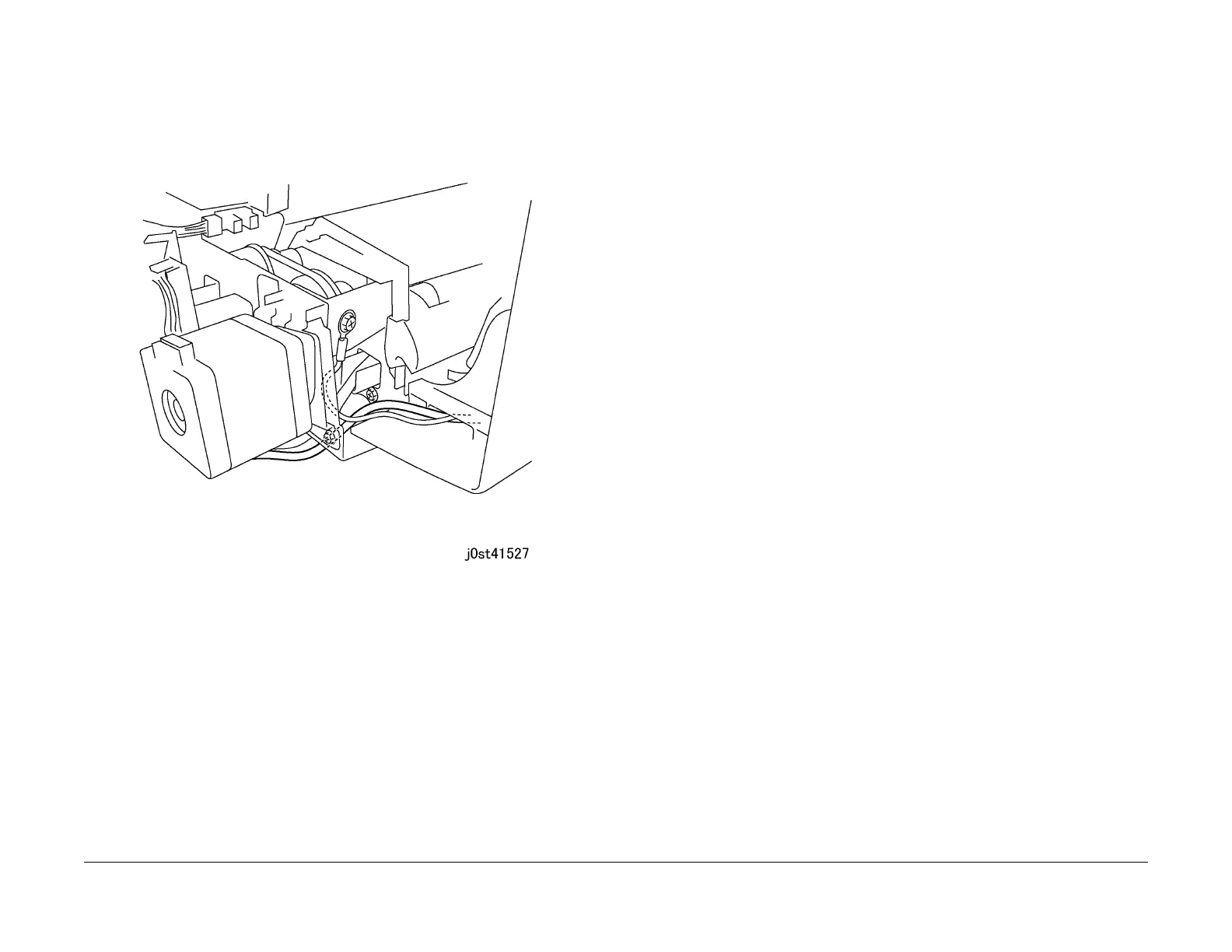

1. When installing the motor unit, pull the Wire Harness as shown in Fig. 7. (Figure 7)
Figure 7 Pulling the Wire Harness
