Xerox WorkCentre 5225 Service Manual

February, 2008
4-85
WorkCentre 5225, 5230
REP 12.2
Repairs and Adjustments
Launch Version

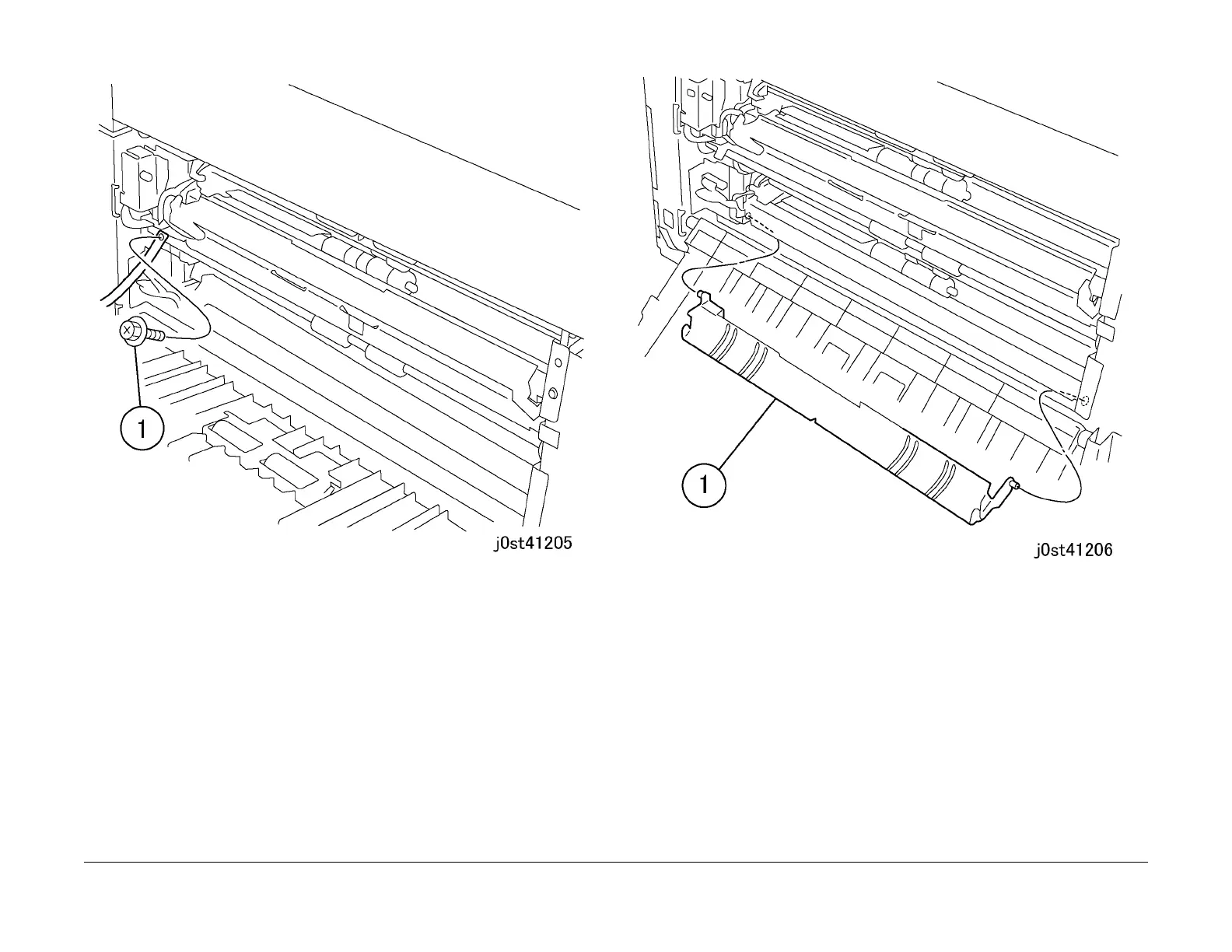

Figure 3 Removing the screws (j0st41205)
6. Remove the Feed Out Chute. (Figure 4)
1. Remove the Feed Out Chute.
Figure 4 Removing the Feed Out Chute (j0st41206)
7. Disconnect the connector. (Figure 5)
1. Disconnect the connector.
2. Release the clamp to remove the wire.
