February, 2008
4-162
WorkCentre 5225, 5230
REP 16.3.1, REP 16.3.2
Launch Version
Repairs and Adjustments

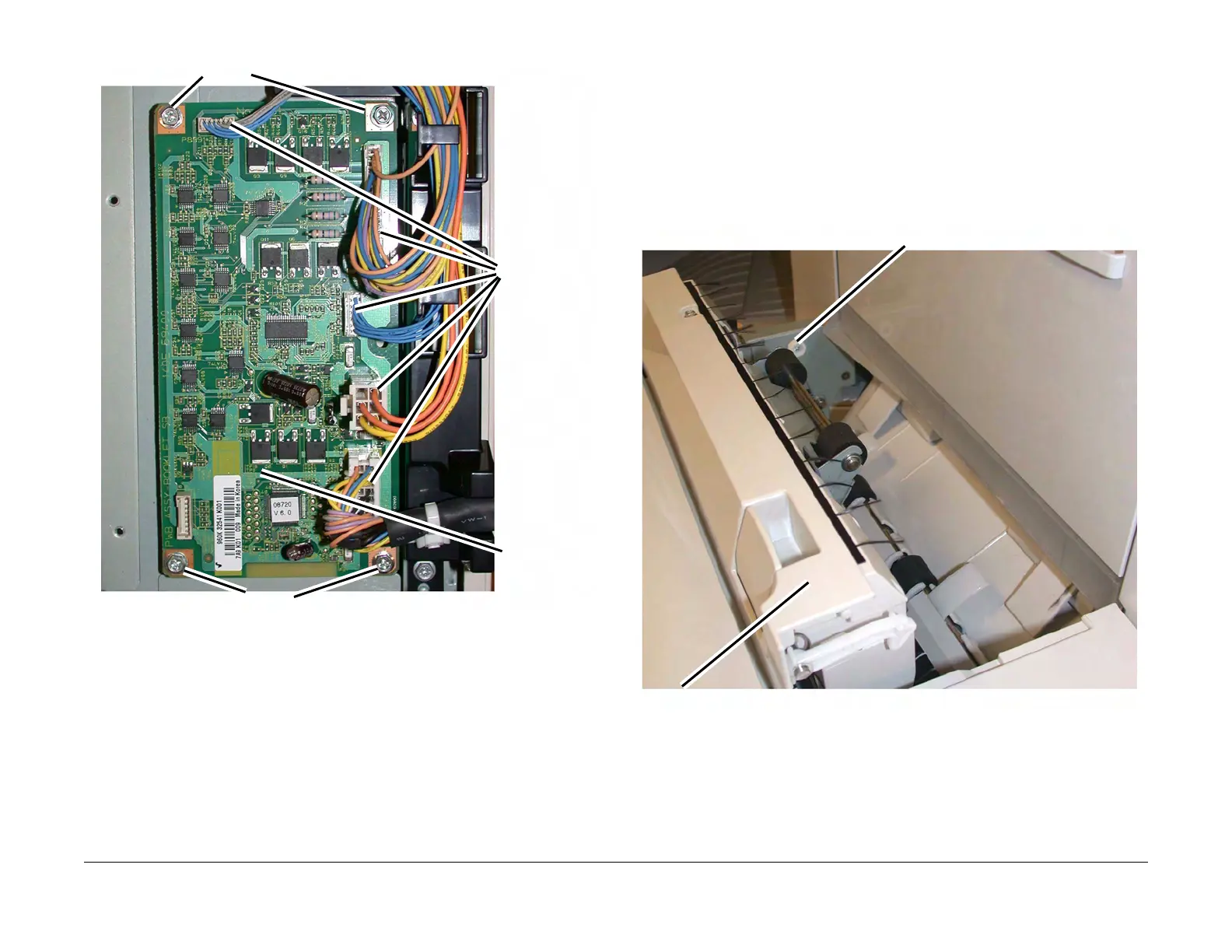

Figure 1 Removing the Booklet PWB (j0st41680)
Replacement
1. Reverse the removal procedure for replacement.
REP 16.3.2 Booklet Maker Assembly
Parts List on PL 23.6
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Unlatch the Eject Cover, and move it all the way to the left. (Figure 1)
2. Remove the Thumbscrews (2). (Figure 1)
Figure 1 Eject Cover and Thumbscrew (j0st41701)
Screws
Screws
Connectors
Booklet PWB
Eject Cover
Thumbscrew (2)
To Next Page
