Xerox WorkCentre 5225 Service Manual

February, 2008
4-43
WorkCentre 5225, 5230
REP 7.3.4
Repairs and Adjustments
Launch Version

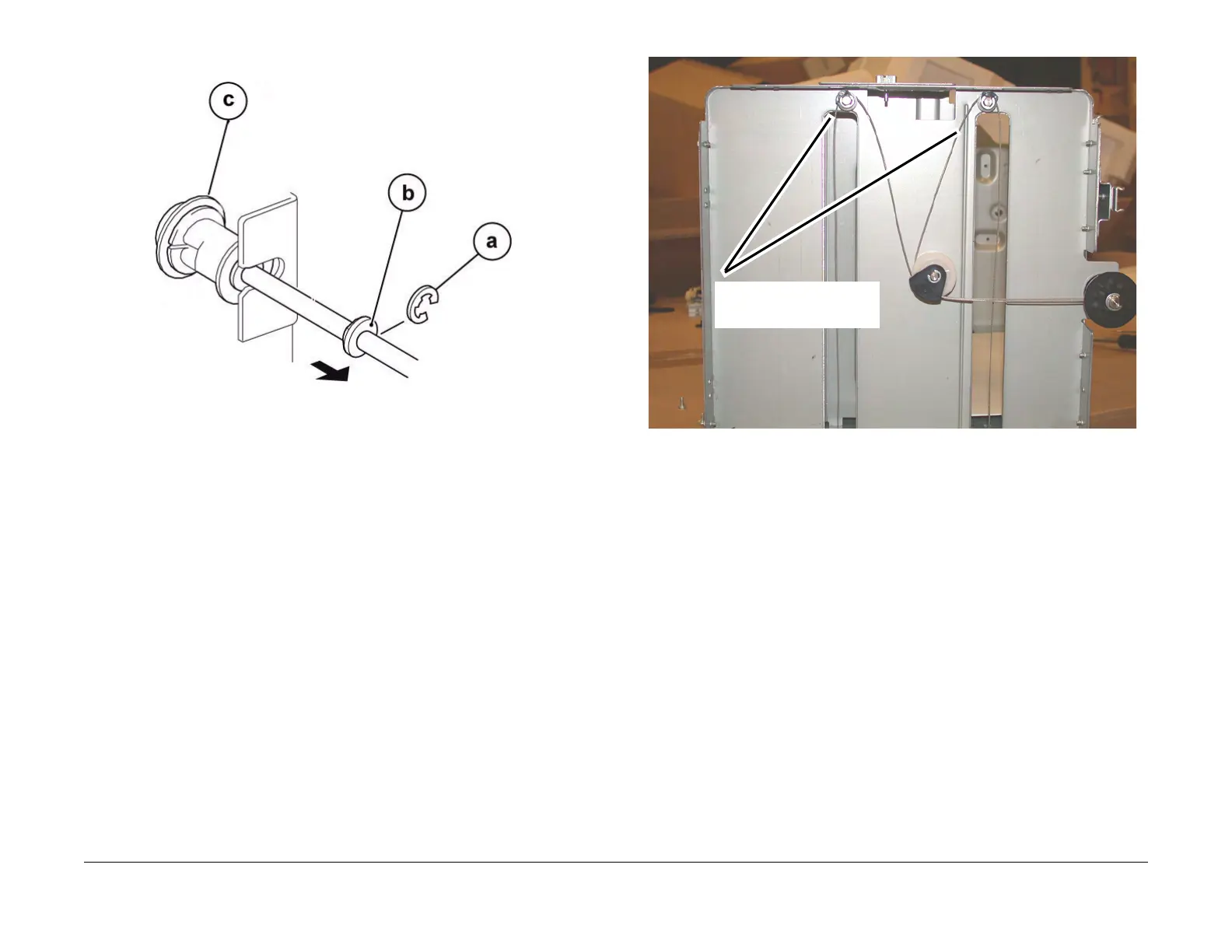

Figure 7 Lift Shaft front Tray Cable Pulley
4. Remove the E-Rings, Wire Guides, and Pulleys from the front of the HCF Tray. (Figure 8)
1. Remove (2) E-Rings, (2) Wire Guides, and (2) Pulleys.
Figure 8 Preparing to remove the front Tray Cables
2. When both sections of the cable are slack, disengage the Lift Shaft from the frame and
slide the Tray Cable Pulley to the front of the Lift Shaft to release the Rear Lift Cable ends
that are trapped in the pocket underneath the Tray Cable Pulley. (Figure 9)
1
Remove E-Rings (2), Wire
Guides (2), and Pulleys (2)
