WorkCentre 5225, 5230
REP 22.1
Repairs and Adjustments
Launch Version
REP 22.1 A-Finisher
Parts List on PL 22.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the Connector Cover. (Figure 1)

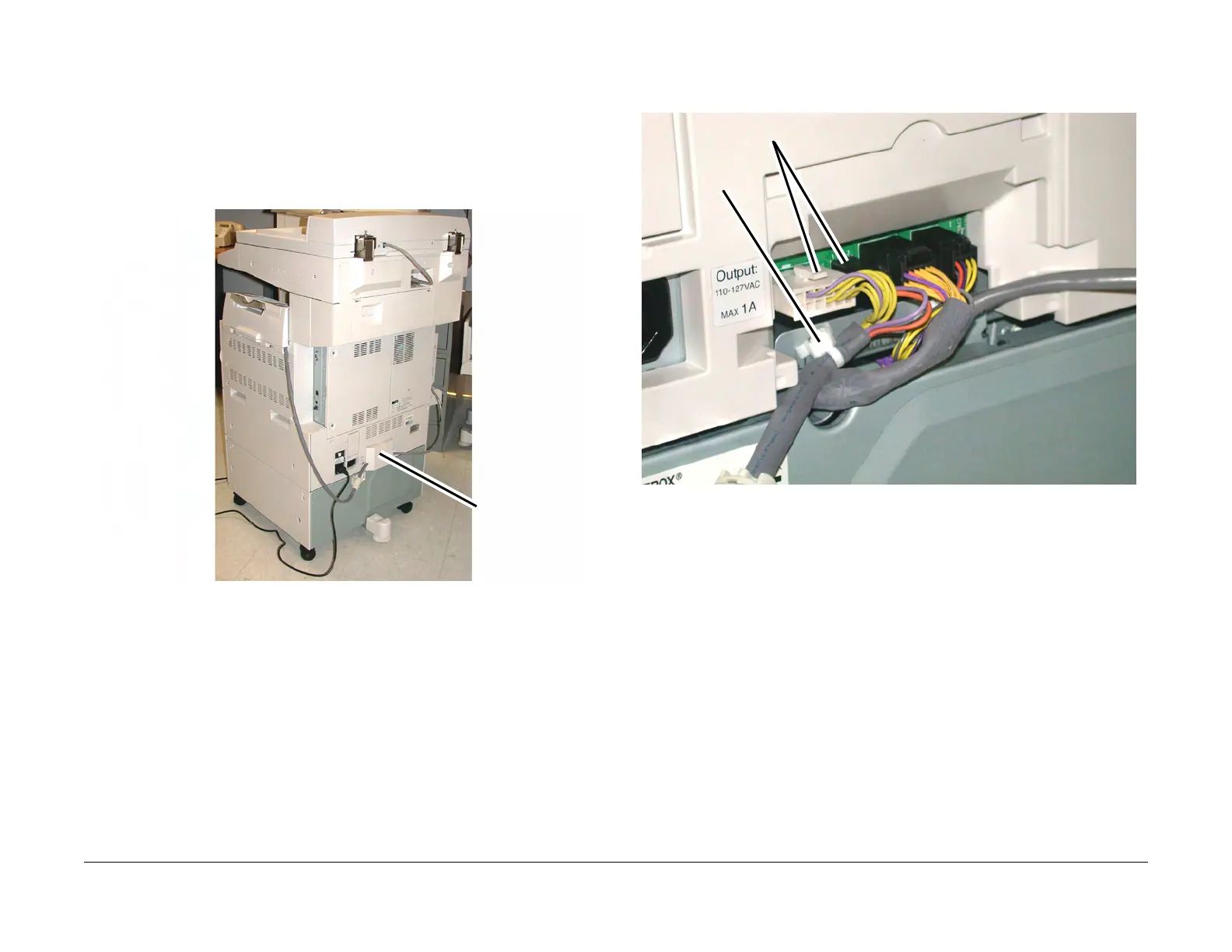

Figure 1 Removing the Connector Cover (af422109)
2. Disconnect the A-Finisher Wire Harness. (Figure 2)
(1)Remove the Cable Clamp from the hole in the Frame.
(2)Disconnect the Connectors (2).
Figure 2 Disconnecting the A-Finisher Wire Harness (af422110)
Connector Cover
Cable Clamp
Connectors
