Xerox WorkCentre 5225 Service Manual

February, 2008
5-36
WorkCentre 5225, 5230
PL 10.2
Launch Version
Parts List

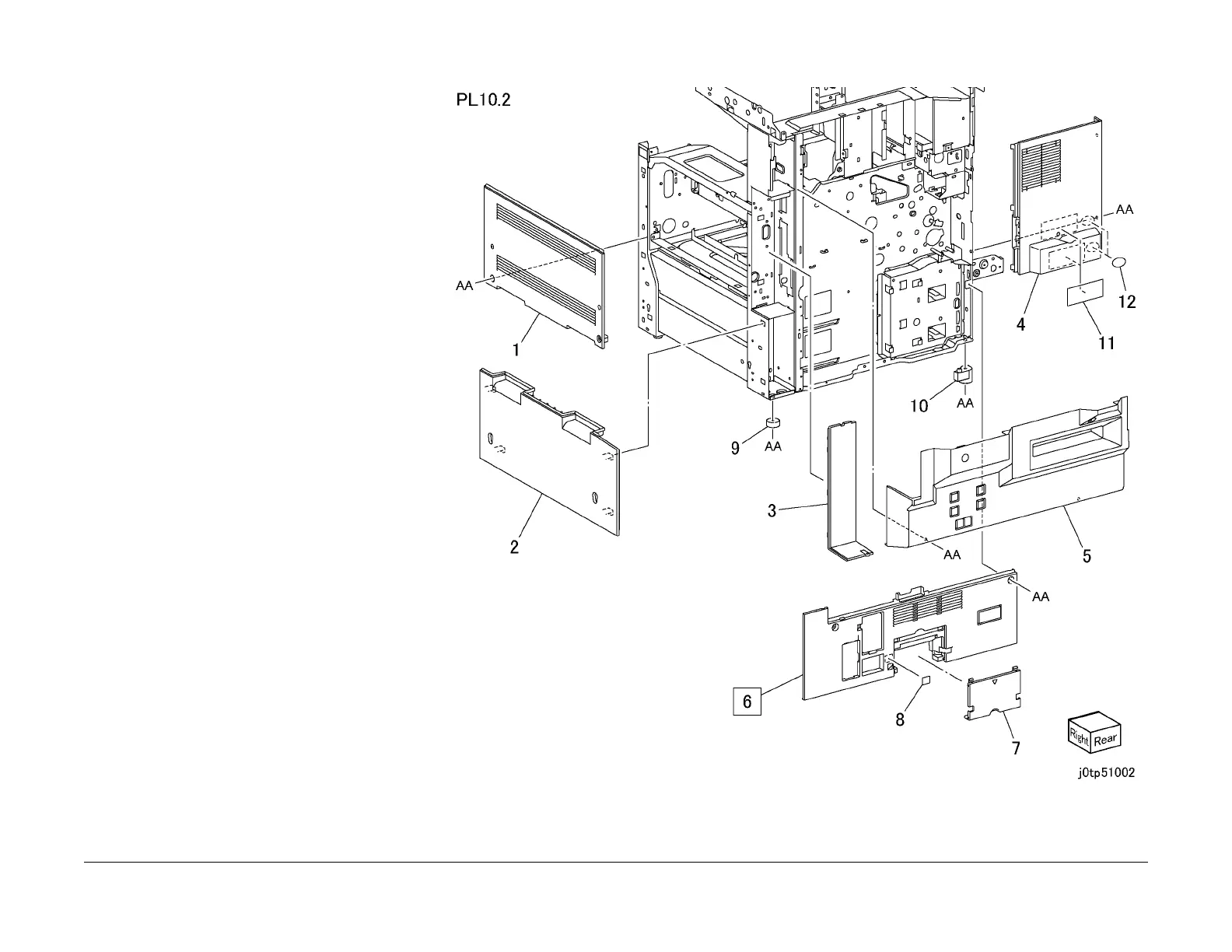

PL 10.2 Cover-Rear, Right
Item Part Description
1 802E55231 Right Upper Cover
2 802E55242 Right Lower Cover
3 – ESS Right Cover (Not Spared)
4 802E55271 Rear Middle Cover
5 848E14800 Rear Upper Cover
6 848E19410 Rear Lower Cover (REP 10.2.1)
7 – Cover (Not Spared)
8 – Label (Not Spared)
9 – Foot (Not Spared)
10 – Foot (Not Spared)
11 – Data Plate (Not Spared)
12 – Label (220V) (Not Spared)
